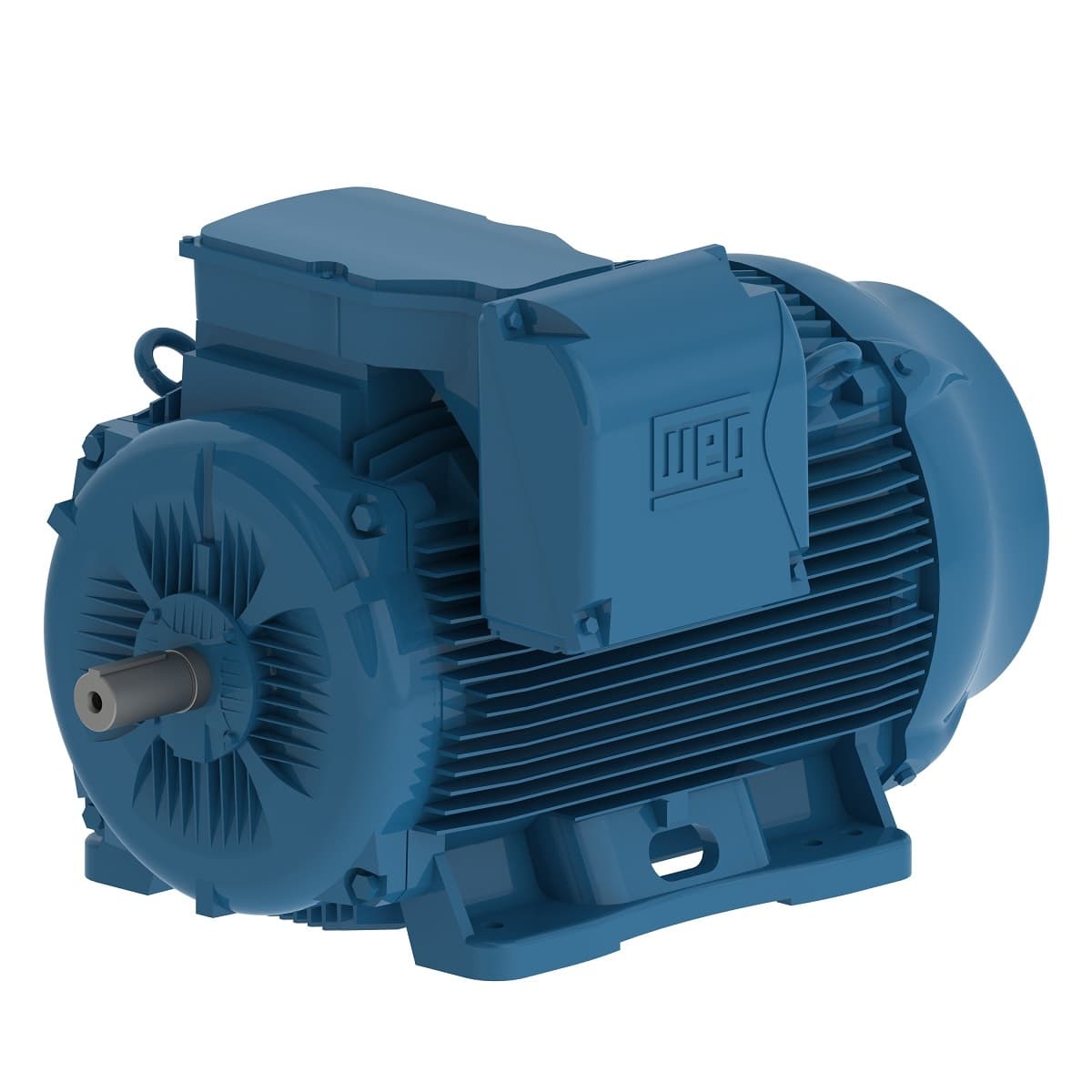

13212EG3Y315L-W22 WEG AC Motors
Product Details
- Terminal box¹ Right position
- Flange Without
- Standard NEMA MG-1
- Output rating 175 HP
- Approx. weight³ 3010 lb
- Synchronous speed 1200 rpm
- Voltage 460//380-400-415 V
- Mounting B3L(E)
- Number of poles 6
- Duty Cycle S1
- Rotation¹ Both (CW and CCW)
- Noise level² 68.0 dB(A)
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Insulation Class F
- Starting Method Direct On Line
- Locked rotor torque 220 %
- Service factor 1.00
- Locked rotor time 79s (cold) 44s (hot)
- Temperature rise 80 K
- Moment of inertia (J) 227 sq.ft.lb
- Design NE
- No load current 95.0 A
- Breakdown torque 229 %
- L. R. Amperes 1693 A
- Rated torque 928 ft.lb
- Output 175 HP (132 kW)
- LRC 6.8
- Number of Poles 6
- Rated voltage 380 V
- Frequency 50 Hz
- Rated speed 990 rpm
- Slip 1.00 %
- Rated current 249 A
- Frame 315L
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
