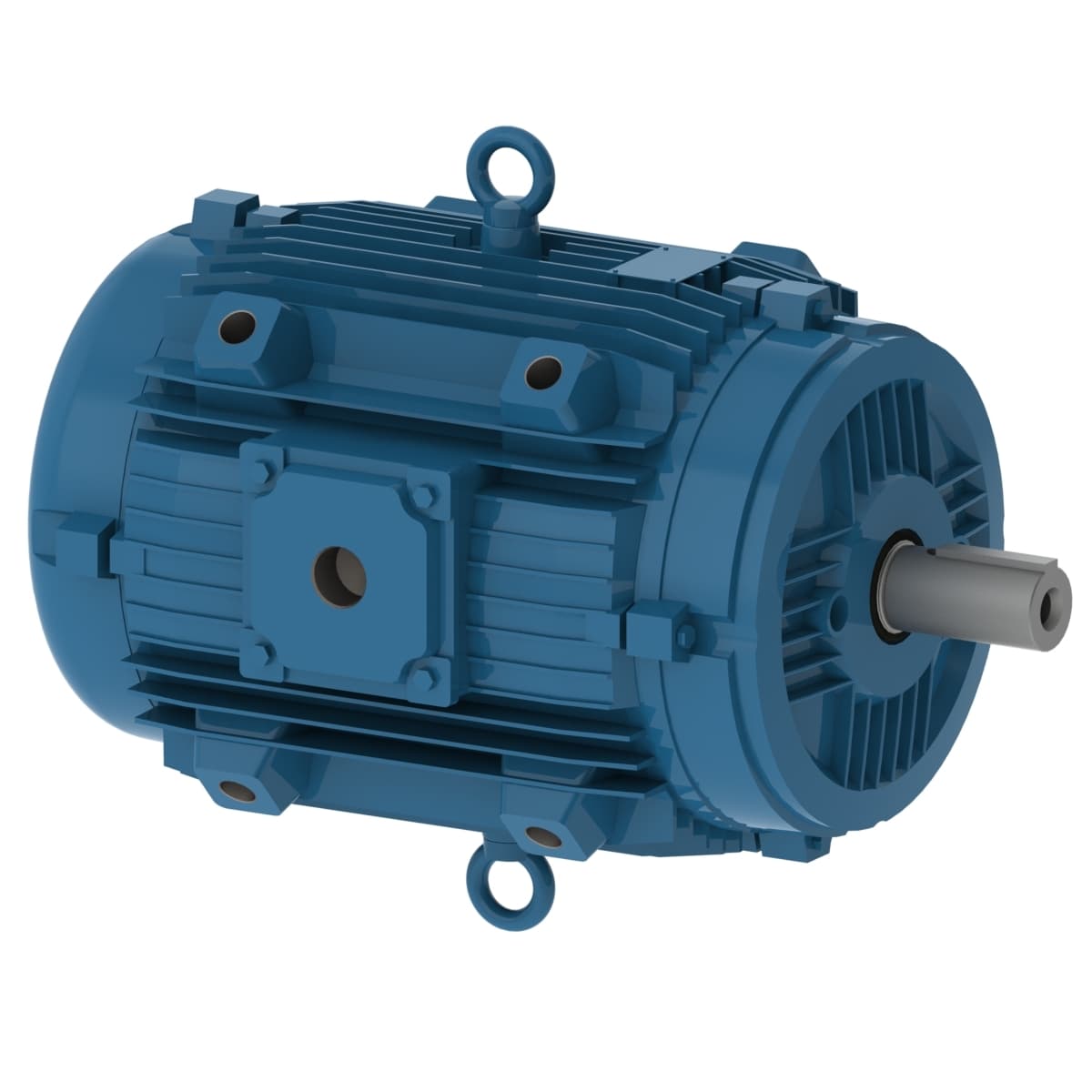

10837634 WEG AC Motors

Product Details

• Terminal box¹
  Left position
• Number of poles
  4
• Flange
  Without
• Output rating
  10 HP
• Approx. weight³
  151 lb
• Synchronous speed
  1800 rpm
• Voltage
  230/460 V
• Standard
  NEMA MG-1
• Noise level²
  58.0 dB(A)
• Degree of Protection
  IP55
• Rotation¹
  Both (CW and CCW)
• Mounting
  F-1
• Altitude
  1000 m.a.s.l.
• Duty Cycle
  Cont.(S1)
• Enclosure
  IC411 - TEFC
• Ambient temperature
  -20°C to +40°C
• Starting Method
  Direct On Line
• Temperature rise
  105 K
• Service factor
  1.25
• L. R. Amperes
  161/80.6 A
Design
B
Insulation Class
F
Moment of inertia (J)
1.25 sq.ft.lb
Rated torque
29.8 ft.lb
Breakdown torque
250 %
Locked rotor time
27s (cold) 15s (hot)
Locked rotor torque
200 %
LRC
6.3x(Code H)
No load current
10.5/5.25 A
Rated voltage
230/460 V
Slip
2.22 %
Material (FERT)
50006910
Number of Poles
4
Output
10 HP (7.5 kW)
Rated speed
1760 rpm
Rated current
25.6/12.8 A
Frequency
60 Hz
Frame
215Y
