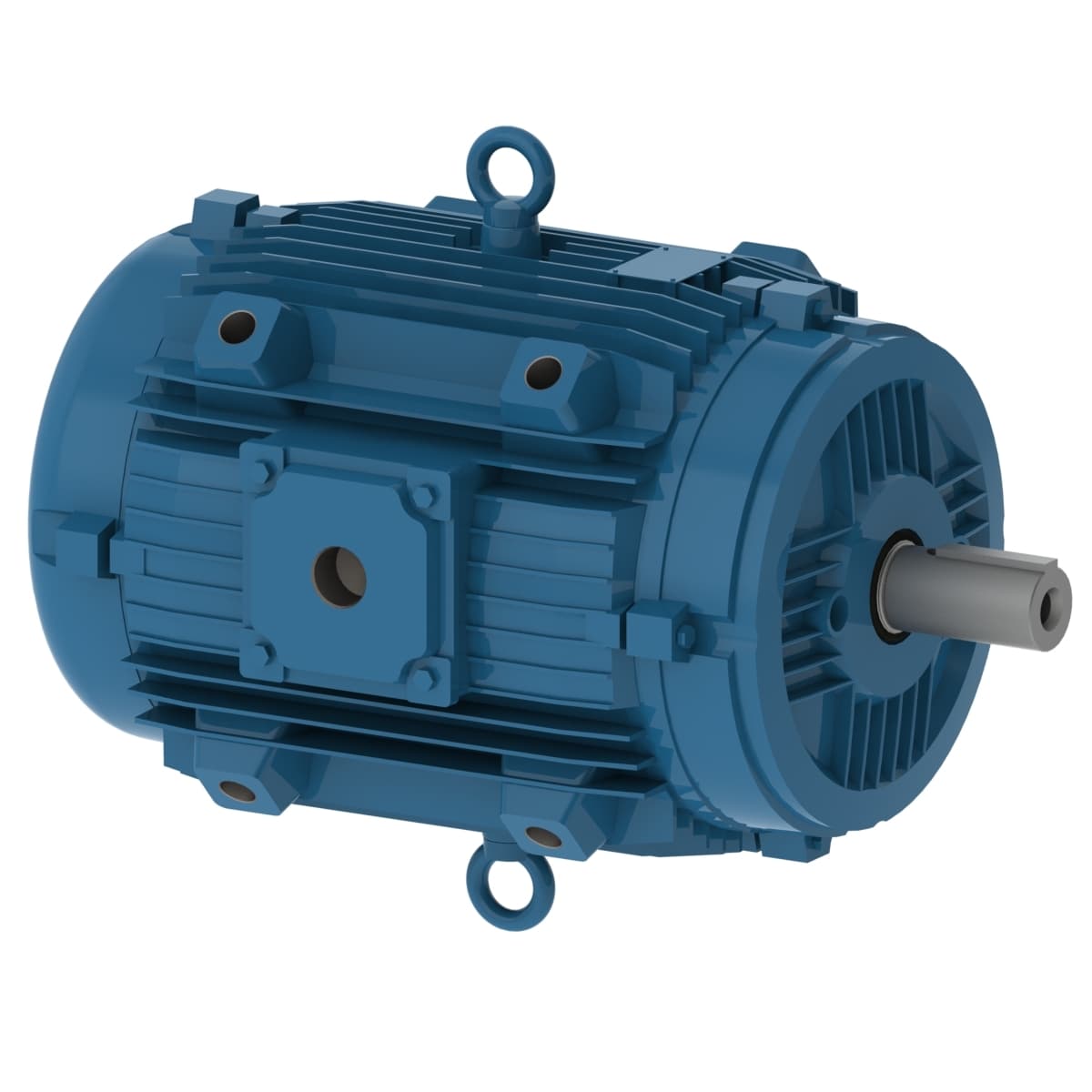

10673195 WEG AC Motors

Product Details

• Terminal box¹
  Left position
• Number of poles
  2
• Flange
  Without
• Output rating
  5 HP
• Noise level²
  69.0 dB(A)
• Synchronous speed
  3600 rpm
• Voltage
  208-230/460 V
• Standard
  NEMA MG-1
• Approx. weight³
  107 lb
• Enclosure
  IC418 - TEAO
• Rotation¹
  Both (CW and CCW)
• Duty Cycle
  Cont.(S1)
• Mounting
  F-1
• Altitude
  1000 m.a.s.l.
• Moment of inertia (J)
  0.2361 sq.ft.lb
• Degree of Protection
  IP55
• Temperature rise
  80 K
• Starting Method
  Direct On Line
• Service factor
  1.25
• Ambient temperature
  -20°C to +40°C
Rated torque
7.48 ft.lb
No load current
4.14-4.80/2.40 A
Breakdown torque
380 %
Locked rotor time
46s (cold) 26s (hot)
Design
B
Locked rotor torque
280 %
L. R. Amperes
119-107/53.6 A
LRC
9.0x(Code K)
Insulation Class
F
Frame
184Y
Number of Poles
2
Rated voltage
208-230/460 V
Slip
2.50 %
Material (FERT)
50006910
Rated speed
3510 rpm
Rated current
13.2-11.9/5.96 A
Output
5 HP (3.7 kW)
Frequency
60 Hz
