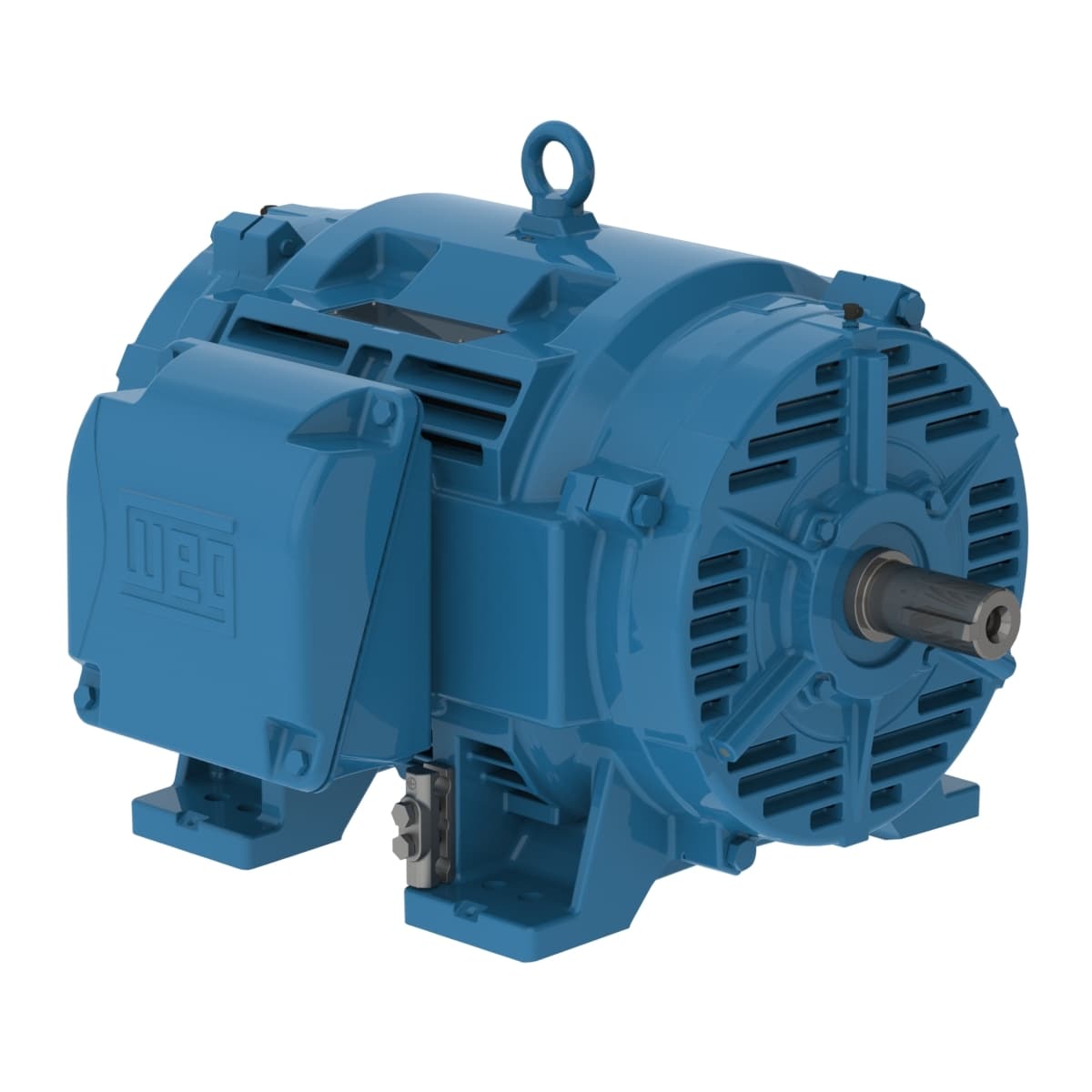

06018OT3E364T-W40 WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  230/460 V
• Output Rating
  60 HP
• Rated Speed
  1780 rpm
• Flange Type
  Without
• Terminal box¹
  Left position
• Flange
  Without
• Output rating
  60 HP
• Voltage
  230/460//380 V
• Synchronous speed
  1800 rpm
• Number of poles
  4
• Rotation¹
  Both (CW and CCW)
• Standard
  NEMA MG-1
• Approx. weight³
  754 lb
• Noise level²
  69.0 dB(A)
• Altitude
  1000 m.a.s.l.
• Degree of Protection
  IP23
• Mounting
  F-1
• Enclosure
  IC01 - ODP
• Starting Method
  Direct On Line
Ambient temperature
-20°C to +40°C
Duty Cycle
Cont.(S1)
Service factor
1.25
Breakdown torque
240 %
Temperature rise
80 K
Insulation Class
F
Design
B
Locked rotor torque
200 %
Moment of inertia (J)
15.6 sq.ft.lb
Rated torque
177 ft.lb
No load current
49.4/24.7 A
Locked rotor time
34s (cold) 19s (hot)
LRC
6.5x(Code G)
Rated current
140/69.9 A
Frame
364/5T
Rated voltage
230/460 V
L. R. Amperes
909/454 A
Rated speed
1780 rpm
Slip
1.11 %
Frequency
60 Hz
Output
60 HP (45 kW)
Number of Poles
4
