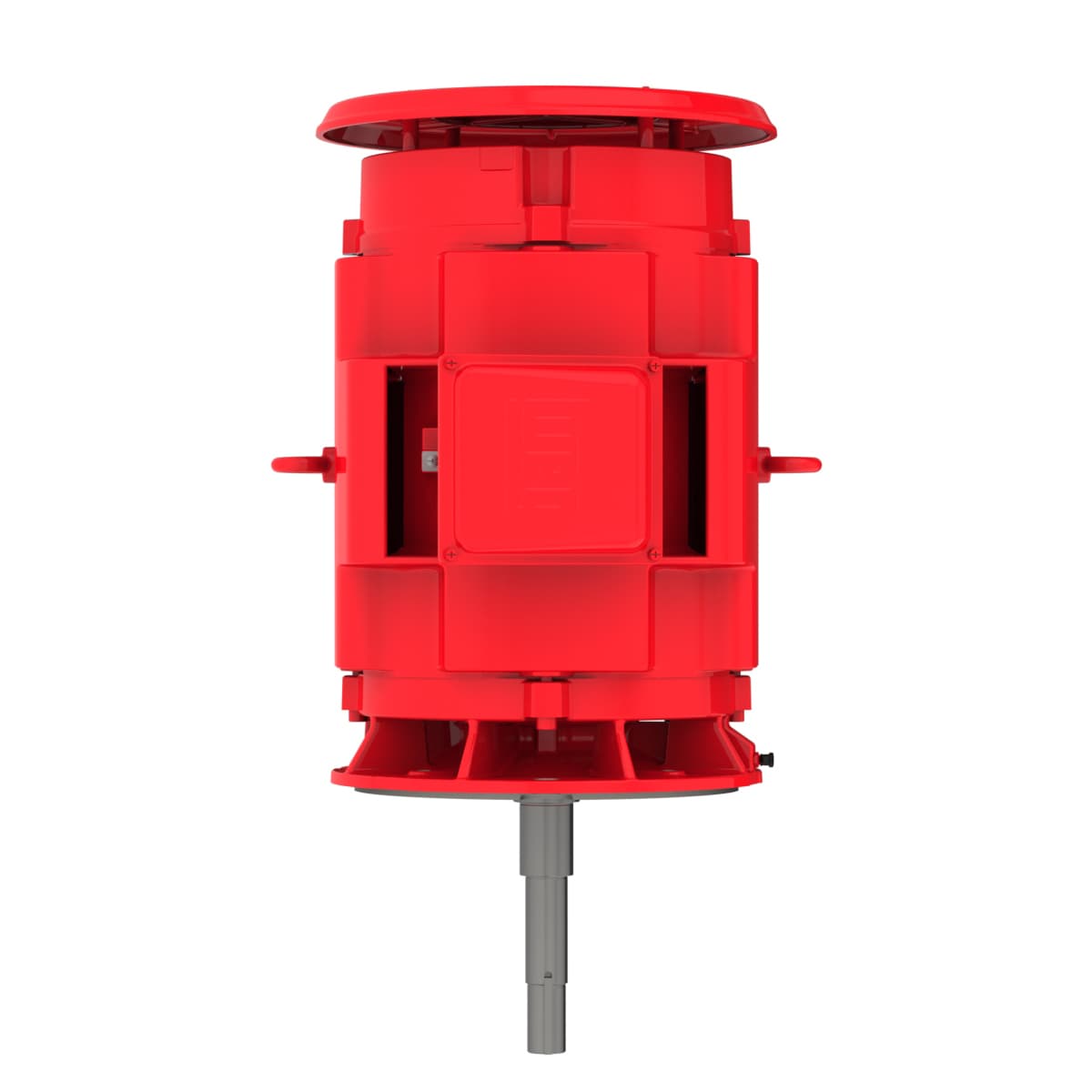

05036OP3VFP324JPV WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  200/400 V
• Output Rating
  50 HP
• Rated Speed
  3560 rpm
• Flange Type
  C
• Standard
  NEMA MG-1
• Noise level²
  74.0 dB(A)
• Locked rotor time
  50s (cold) 28s (hot)
• Flange
  C
• Rotation¹
  Both (CW and CCW)
• Synchronous speed
  3600 rpm
• Approx. weight³
  460 lb
• Terminal box¹
  Left position
• Output rating
  50 HP
• Number of poles
  2
• Voltage
  200/400 V
• Ambient temperature
  -20°C to +40°C
• Altitude
  1000 m.a.s.l.
• Duty Cycle
  Cont.(S1)
• Degree of Protection
  IP23
Starting Method
Direct On Line
Enclosure
IC01 - ODP
Mounting
W-6
Temperature rise
80 K
Insulation Class
F
Service factor
1.15
Breakdown torque
220 %
No load current
34.5/17.3 A
LRC
6.2x(Code G)
Design
B
Moment of inertia (J)
3.30 sq.ft.lb
Rated torque
73.8 ft.lb
Locked rotor torque
240 %
Frame
324JP
Number of Poles
2
Rated current
134/67.2 A
Frequency
60 Hz
Rated voltage
200/400 V
Output
50 HP (37 kW)
Slip
1.11 %
L. R. Amperes
833/416 A
Rated speed
3560 rpm
