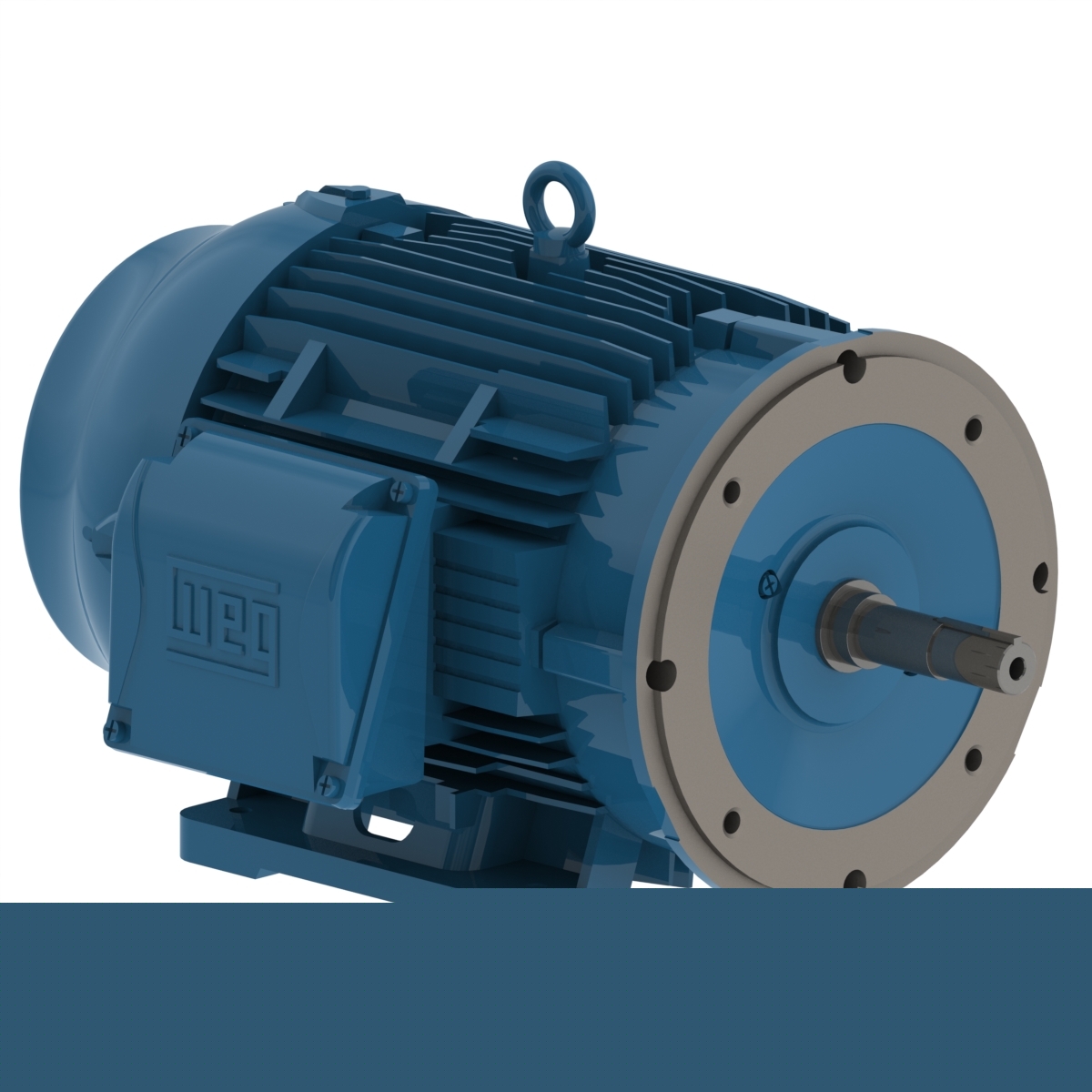

04036OT3V286JP WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  200/400 V
• Output Rating
  40 HP
• Rated Speed
  3550 rpm
• Flange Type
  C
• Flange
  C
• Terminal box¹
  Left position
• Number of poles
  2
• Output rating
  40 HP
• Approx. weight³
  373 lb
• Voltage
  200/400 V
• Standard
  NEMA MG-1
• Synchronous speed
  3600 rpm
• Rotation¹
  Both (CW and CCW)
• Noise level²
  73.0 dB(A)
• Mounting
  F-1
• Ambient temperature
  -20°C to +40°C
• Altitude
  1000 m.a.s.l.
• Temperature rise
  80 K
• Enclosure
  IC01 - ODP
Degree of Protection
IP23
Duty Cycle
Cont.(S1)
Service factor
1.15
Rated torque
59.2 ft.lb
Starting Method
Direct On Line
Locked rotor torque
250 %
Moment of inertia (J)
2.36 sq.ft.lb
Insulation Class
F
LRC
6.4x(Code G)
No load current
36.8/18.4 A
Locked rotor time
41s (cold) 23s (hot)
Breakdown torque
260 %
Design
B
Slip
1.39 %
Frequency
60 Hz
Rated current
108/54.2 A
L. R. Amperes
693/347 A
Rated voltage
200/400 V
Number of Poles
2
Output
40 HP (30 kW)
Frame
286JP
Rated speed
3550 rpm
