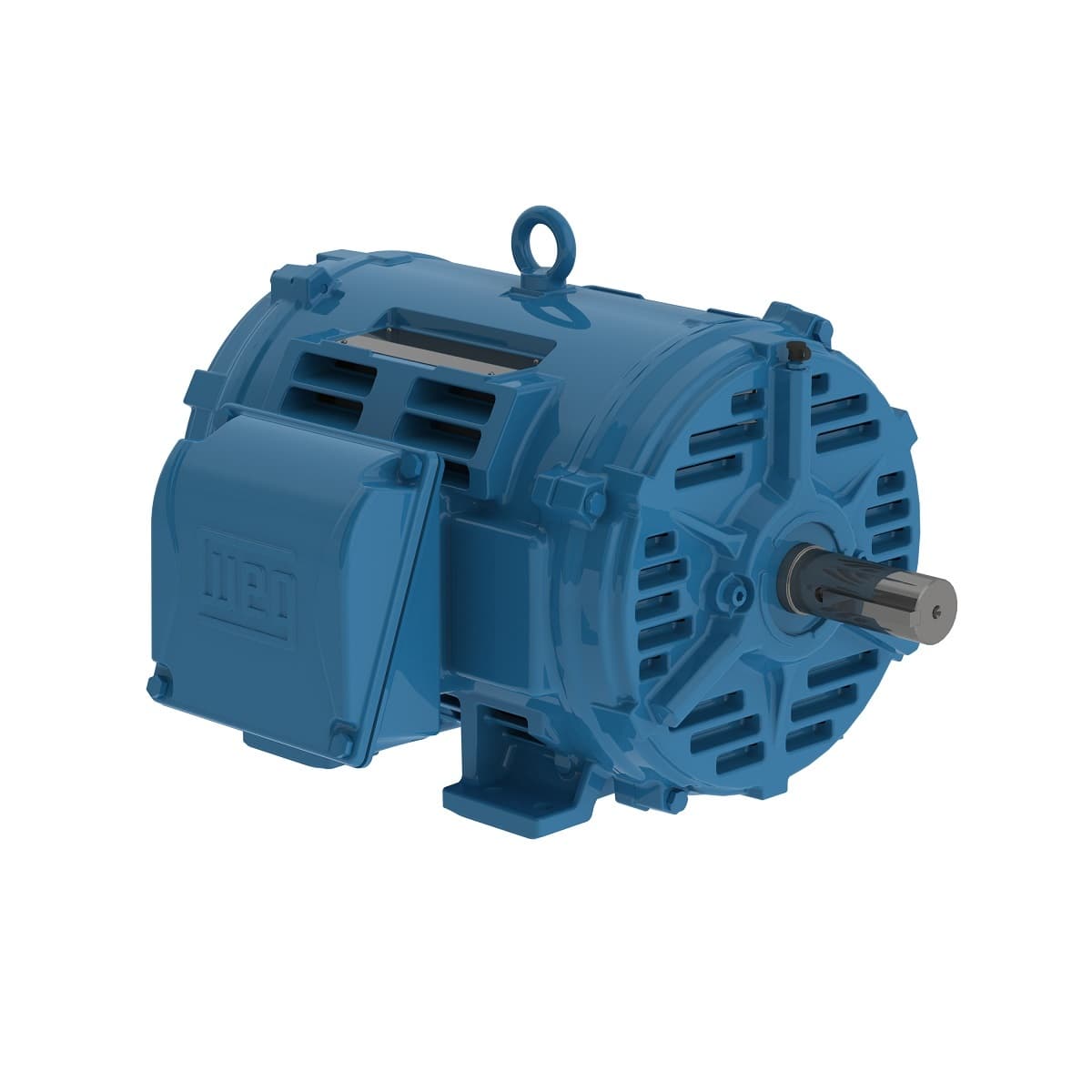

03018OT3E286T-W40 WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  230/460 V
• Output Rating
  30 HP
• Rated Speed
  1770 rpm
• Flange Type
  Without
• Terminal box¹
  Left position
• Flange
  Without
• Output rating
  30 HP
• Synchronous speed
  1800 rpm
• Voltage
  230/460//380 V
• Noise level²
  64.0 dB(A)
• Number of poles
  4
• Standard
  NEMA MG-1
• Rotation¹
  Both (CW and CCW)
• Mounting
  F-1
• Approx. weight³
  391 lb
• Starting Method
  Direct On Line
• Altitude
  1000 m.a.s.l.
• Enclosure
  IC01 - ODP
• Degree of Protection
  IP23
Ambient temperature
-20°C to +40°C
Design
B
Duty Cycle
Cont.(S1)
Locked rotor time
32s (cold) 18s (hot)
Service factor
1.25
Insulation Class
F
Temperature rise
80 K
Locked rotor torque
240 %
Moment of inertia (J)
4.52 sq.ft.lb
Breakdown torque
270 %
LRC
6.6x(Code G)
Rated torque
89.0 ft.lb
No load current
24.2/12.1 A
Rated voltage
230/460 V
Frame
284/6T
L. R. Amperes
461/230 A
Slip
1.67 %
Frequency
60 Hz
Output
30 HP (22 kW)
Rated current
69.8/34.9 A
Rated speed
1770 rpm
Number of Poles
4
