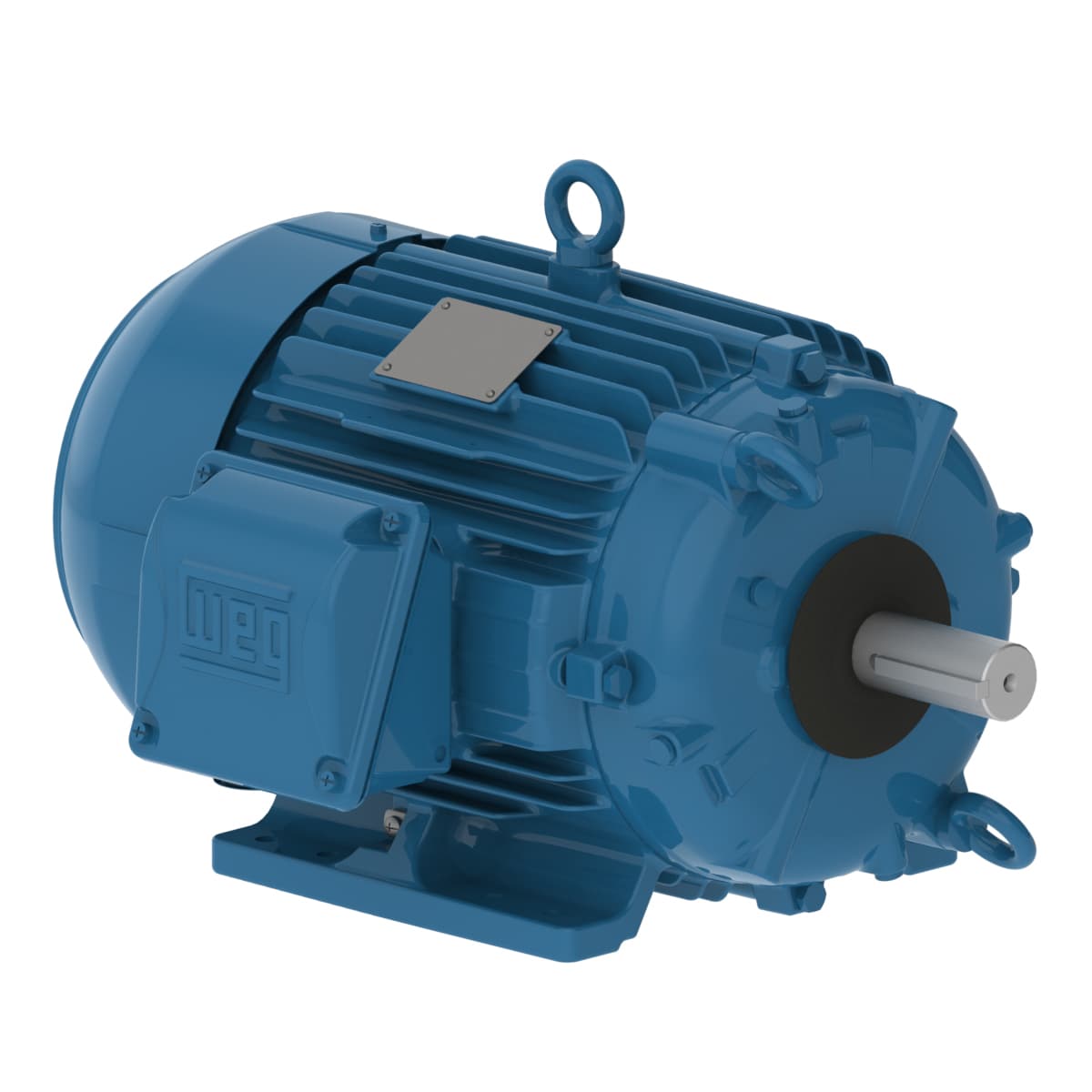

01089EP3HCT215VF1-W2 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  575 V
• Output Rating
  2.5/10 HP
• Rated Speed
  1765 rpm
• Flange Type
  Without
• Output rating
  2.5/10 HP
• Terminal box¹
  Left position
• Flange
  Without
• Voltage
  575 V
• Synchronous speed
  900/1800 rpm
• Number of poles
  8/4
• Standard
  NEMA MG-1
• Noise level²
  61.0 dB(A)
• Approx. weight³
  2.2 lb
• Rotation¹
  Both (CW and CCW)
• Duty Cycle
  Cont.(S1)
• Starting Method
  Direct On Line
• Mounting
  F-1
• Enclosure
  IC411 - TEFC
• Degree of Protection
  IP55
Altitude
1000 m.a.s.l.
Ambient temperature
-20°C to +40°C
Temperature rise
80 K
Insulation Class
F
Service factor
1.15
No load current
5.76 A
Locked rotor time
10s (cold) 6s (hot)
Breakdown torque
300 %
Moment of inertia (J)
1.56 sq.ft.lb
Locked rotor torque
210 %
Rated torque
29.8 ft.lb
LRC
7.0x(Code J)
Frequency
60 Hz
Number of Poles
8/4
Output
10 HP (7.5 kW)
L. R. Amperes
72.8 A
Rated speed
1765 rpm
Rated current
10.4 A
Rated voltage
575 V
Slip
1.94 %
Frame
213/5T
