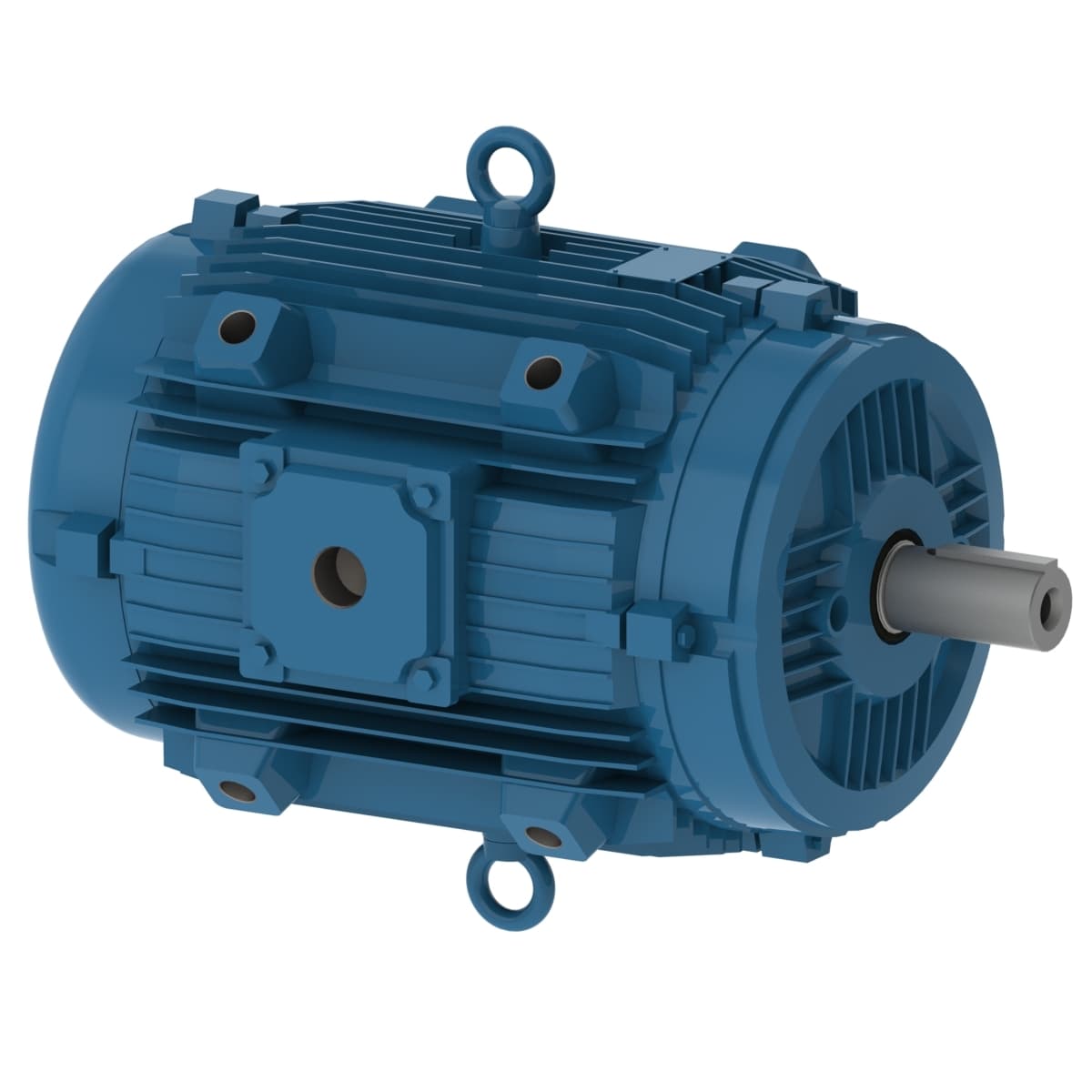

00736EP3EPM213/5Y WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  7.5 HP
• Rated Speed
  3515 rpm
• Flange Type
  Without
• Terminal box¹
  Left position
• Standard
  NEMA MG-1
• Flange
  Without
• Synchronous speed
  3600 rpm
• Output rating
  7.5 HP
• Voltage
  230/460 V
• Noise level²
  72.0 dB(A)
• Mounting
  F-1
• Rotation¹
  Both (CW and CCW)
• Number of poles
  2
• Approx. weight³
  139 lb
• Degree of Protection
  IP55
• Ambient temperature
  -20°C to +40°C
• Enclosure
  IC411 - TEFC
• Altitude
  1000 m.a.s.l.
Starting Method
Direct On Line
Duty Cycle
Cont.(S1)
Insulation Class
F
Temperature rise
80 K
Design
B
Service factor
1.25
Moment of inertia (J)
0.4879 sq.ft.lb
Rated torque
11.2 ft.lb
LRC
7.1x(Code H)
Locked rotor time
46s (cold) 26s (hot)
Breakdown torque
350 %
No load current
5.50/2.75 A
Locked rotor torque
220 %
Number of Poles
2
Slip
2.36 %
Rated speed
3515 rpm
L. R. Amperes
123/61.6 A
Output
7.5 HP (5.5 kW)
Rated current
17.3/8.67 A
Rated voltage
230/460 V
Frequency
60 Hz
Material (FERT)
50006910
Frame
215T
