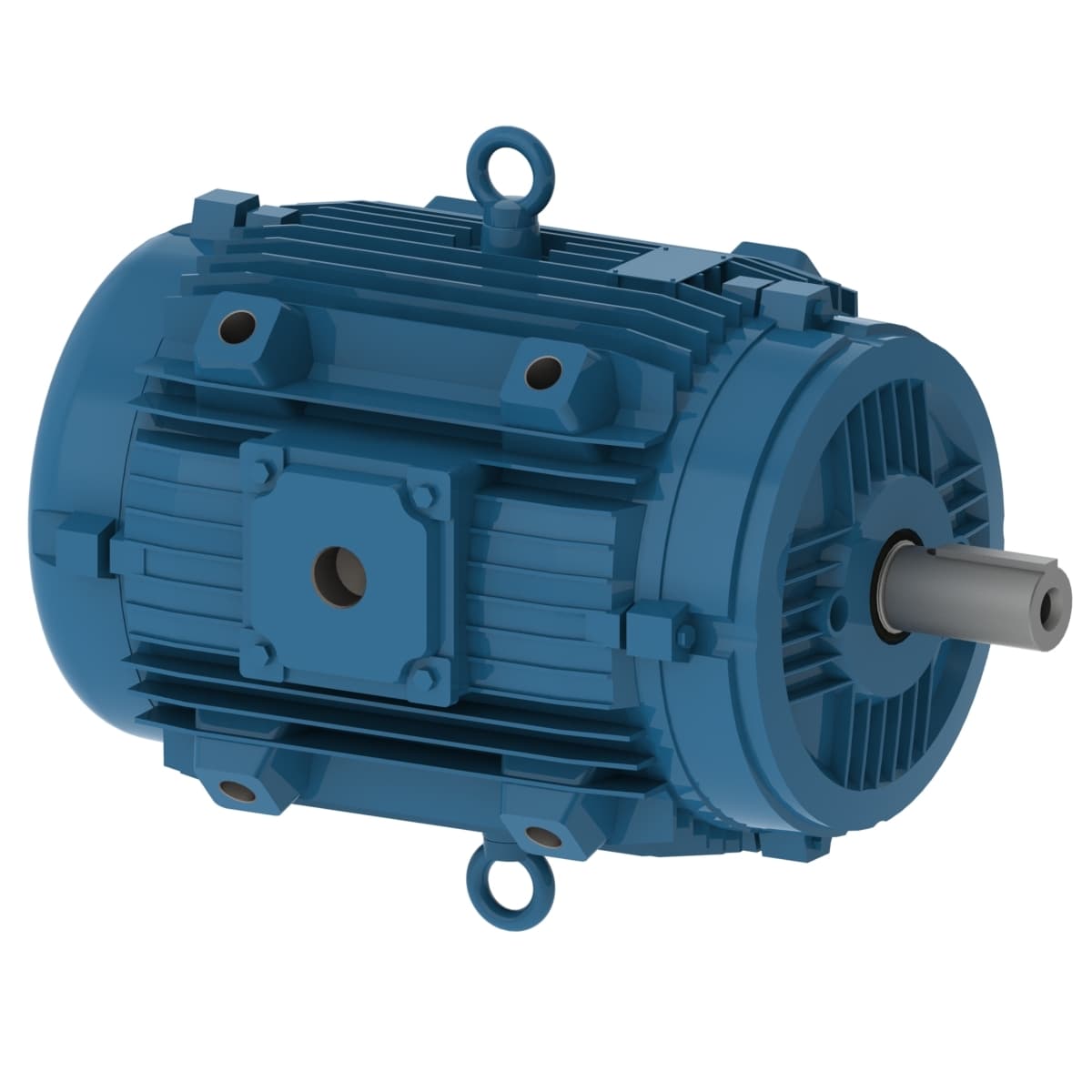

00718EP3EPM213/5Y WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  230/460 V
• Output Rating
  7.5 HP
• Rated Speed
  1755 rpm
• Flange Type
  Without
• Number of poles
  4
• Flange
  Without
• Output rating
  7.5 HP
• Terminal box¹
  Left position
• Voltage
  230/460 V
• Noise level²
  58.0 dB(A)
• Standard
  NEMA MG-1
• Synchronous speed
  1800 rpm
• Approx. weight³
  137 lb
• Enclosure
  IC418 - TEAO
• Degree of Protection
  IP55
• Rotation¹
  Both (CW and CCW)
• Duty Cycle
  Cont.(S1)
• Starting Method
  Direct On Line
• Service factor
  1.25
Altitude
1000 m.a.s.l.
Design
B
Temperature rise
105 K
Mounting
F-1
Ambient temperature
-20°C to +40°C
Locked rotor time
37s (cold) 21s (hot)
Insulation Class
F
Moment of inertia (J)
0.9800 sq.ft.lb
Rated torque
22.4 ft.lb
Breakdown torque
260 %
Locked rotor torque
200 %
LRC
6.4x(Code H)
No load current
7.00/3.50 A
L. R. Amperes
122/60.9 A
Output
7.5 HP (5.5 kW)
Rated voltage
230/460 V
Slip
2.50 %
Number of Poles
4
Material (FERT)
50006910
Frequency
60 Hz
Rated current
19.0/9.52 A
Rated speed
1755 rpm
Frame
215Y
