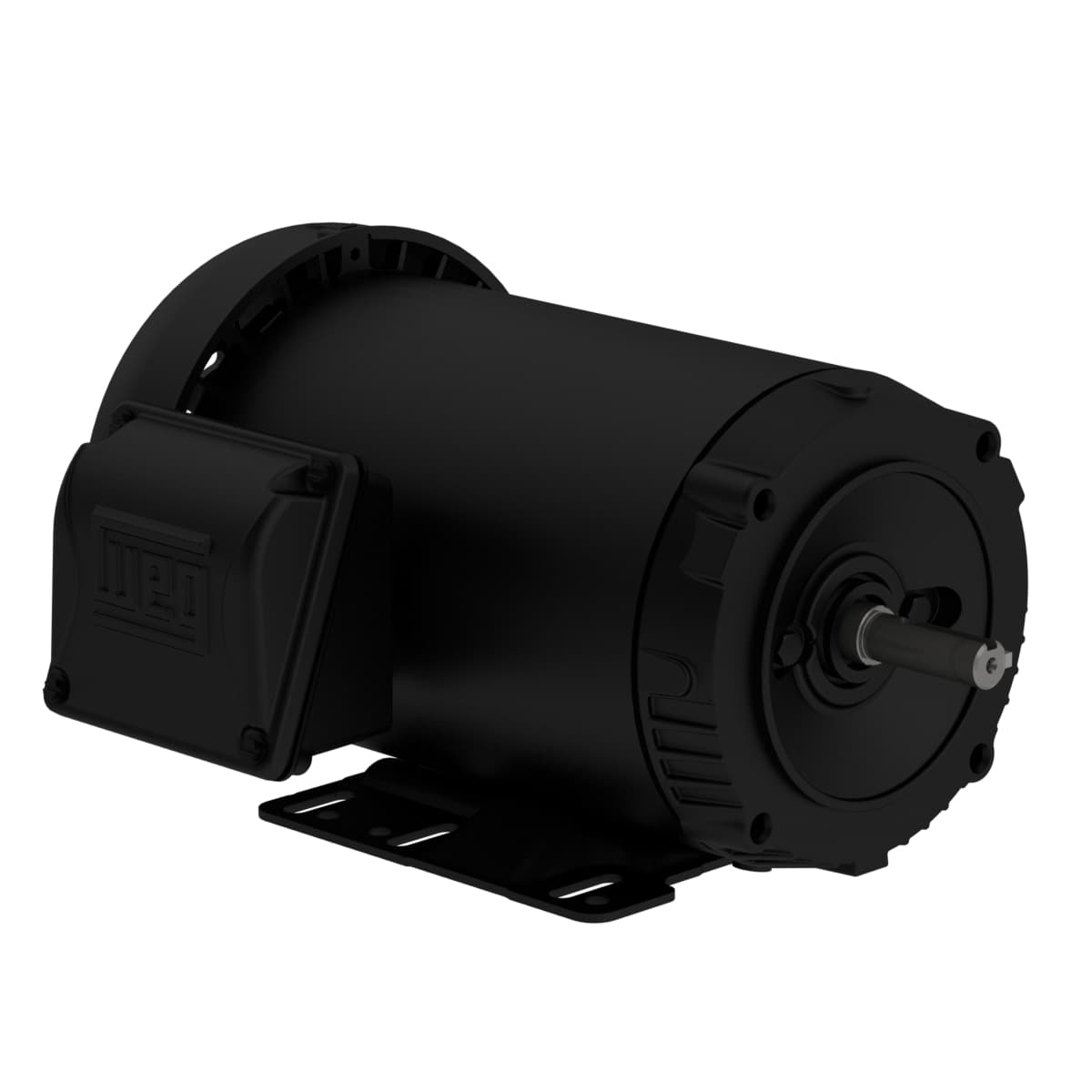

00236ES3E56C-S WEG AC Motors

Product Details

• Terminal box¹
  Left position
• Flange
  C
• Output rating
  2 HP
• Noise level²
  68.0 dB(A)
• Voltage
  230/460//190-220/380-415 V
• Standard
  NEMA MG-1
• Number of poles
  2
• Synchronous speed
  3600 rpm
• Approx. weight³
  32.4 lb
• Enclosure
  IC411 - TEFC
• Mounting
  F-1
• Rotation¹
  Both (CW and CCW)
• Starting Method
  Direct On Line
• Altitude
  1000 m.a.s.l.
• Degree of Protection
  IP55
• Duty Cycle
  Cont.(S1)
• Service factor
  1.15 (1.00 @ 208V)
• Ambient temperature
  -20°C to +40°C
• Locked rotor torque
  229 %
• Insulation Class
  F
No load current
2.07/1.04 A
Locked rotor time
19s (cold) 11s (hot)
Rated torque
3.02 ft.lb
Breakdown torque
290 %
Temperature rise
80 K
LRC
7.7x(Code K)
Design
A
Moment of inertia (J)
0.0963 sq.ft.lb
Rated voltage
230/460 V
Rated current
5.24/2.62 A
Frame
56HC
Frequency
60 Hz
Output
2 HP (1.5 kW)
Rated speed
3475 rpm
L. R. Amperes
40.3/20.2 A
Slip
3.47 %
Number of Poles
2
