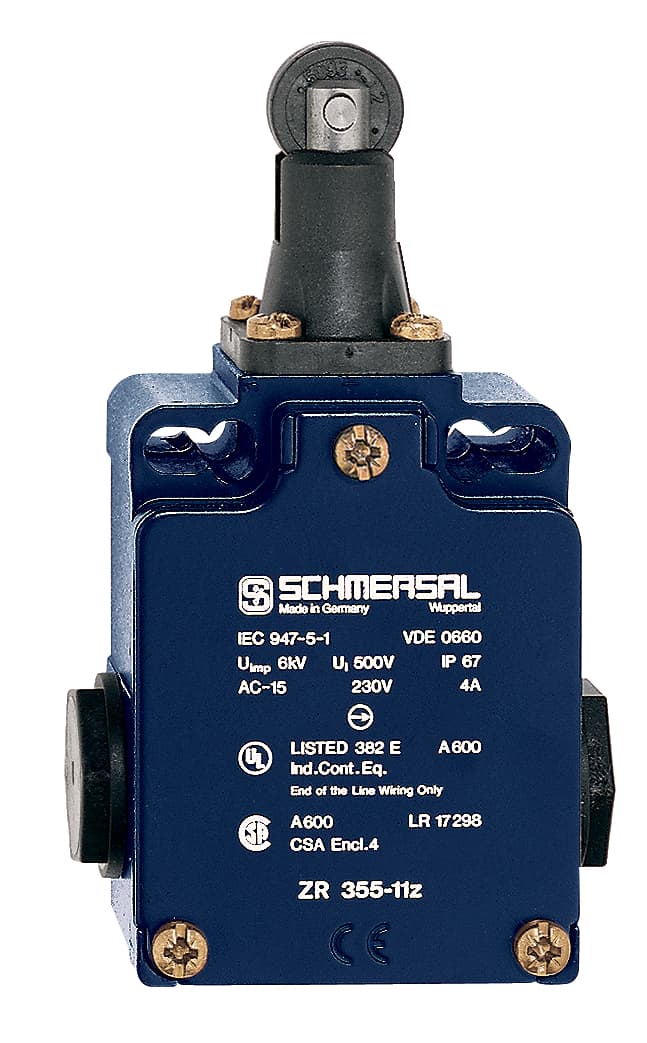

ZR 336-11Z-M20 Schmersal Electronic Components

Product Details

• Switchover time, maximum
  2 ms
• Switching principle
  Snap switch element
• Switching element
  NO contact, NC contact
• Switching frequency
  5,000 /h
• Utilisation category AC-15
  4 A
• Utilisation category DC-13
  4 A
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Thermal test current
  10 A
• Rated impulse withstand voltage Uimp
  6 kV
• Actuating element
  Roller plunger
• Rated insulation voltage Ui
  500 V
• Ambient temperature, maximum
  +80 °C
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Ambient temperature, minimum
  -30 °C
• Material of the contacts, electrical
  Silver
• Height of sensor
  116.5 mm
• Width of sensor
  40.5 mm
• Length of sensor
  38 mm
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Cable section, maximum
  2.5 mm²
Cable section, minimum
0.75 mm²
Note (Actuating speed)
Actuating speed with actuating angle 30° to switch axis
Terminal Connector
Screw connection
Note Bounce duration
Bounce duration in accordance with actuating speed
Actuating force, minimum
12 N
Actuating speed, maximum
0.5 m/s
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Number of auxiliary contacts
1
Safety functions
Yes
Actuator type to DIN EN 50041
C
Mechanical life, minimum
30,000,000 Operations
Housing construction form
Norm construction design
Number of safety contacts
1
Gross weight
105 g
