TV10S 335-12Z Schmersal Electronic Components
Part#:TV10S 335-12Z
Alt. Part#:101179252
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

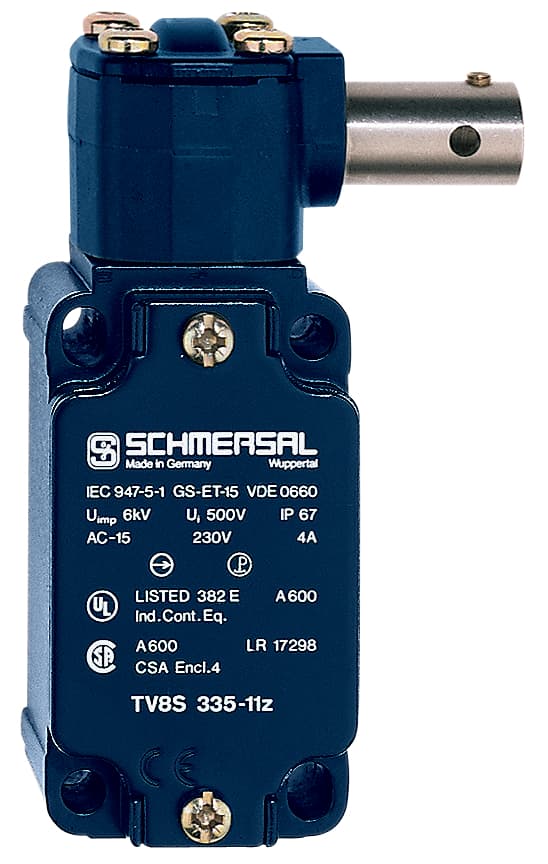

Safety switch for hinged guards; Hinge safety switch; 1 Cable entry M 20 x 1.5; Metal enclosure; Good resistance to oil and petroleum spirit; Actuator heads can be repositioned by 4 x 90°; 40,5 mm x 107 mm x 65,3 mm; Actuator shaft can be turned 360°
Product Details
- Switching frequency 1,000 /h
- Switching principle Creep circuit element
- Switching element NO contact, NC contact
- Utilisation category DC-13 24 VDC
- Utilisation category AC-15 230 VAC
- Thermal test current 10 A
- Number of safety contacts 2
- Rated insulation voltage Ui 500 V
- Rated impulse withstand voltage Uimp 6 kV
- Ambient temperature, maximum +70 °C
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Ambient temperature, minimum -25 °C
- Degree of protection IP67
- Enclosure material Aluminium
- Height of sensor 107 mm
- Length of sensor 65.3 mm
- Width of sensor 40.5 mm
- Cable section, maximum 2.5 mm²
- Cable section, minimum 0.75 mm²
- Terminal Connector Screw connection
- Enclosure coating material painted
- Gross weight 283 g
- Actuating element Other
- Positive break angle 7 °
- Number of auxiliary contacts 1
- Mechanical life, minimum 1,000,000 Operations
- Positive break torque 0.6 Nm
- Mounting hole for the Shaft 10 mm
- Material of the contacts, electrical Silver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TV10S 335-12Z on Applied Automation is $231.00. Order now.
