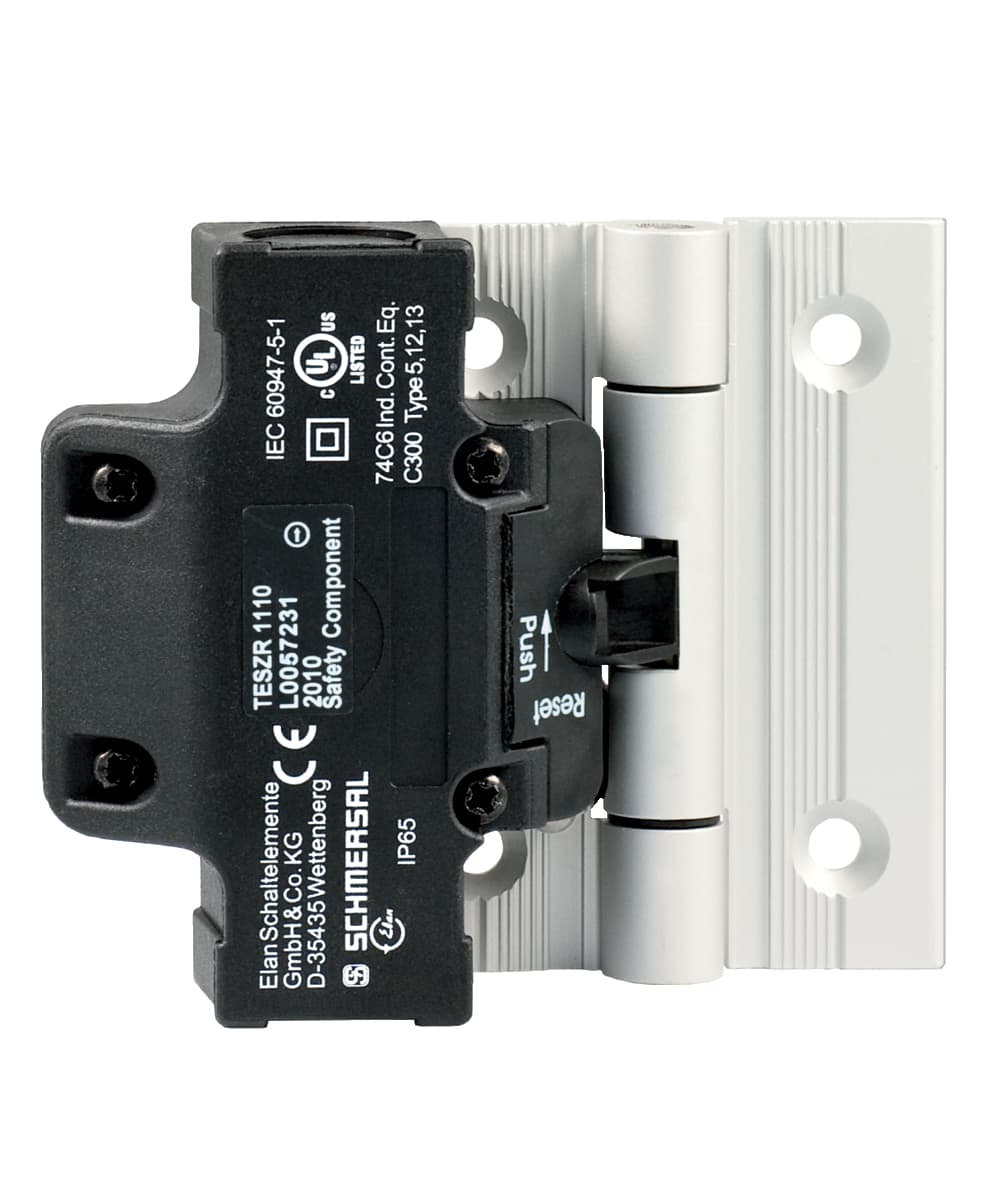

TESZR1110/S Schmersal Safety Switches

Product Details

• Switching principle
  Creep circuit element
• Utilisation category DC-13
  24 VDC
• Thermal test current
  2.5 A
• Rated impulse withstand voltage Uimp
  2.5 kV
• Ambient temperature, maximum
  +65 °C
• Length of sensor
  36 mm
• Width of sensor
  111.5 mm
• Cable section, maximum
  1 mm²
• Cable section, minimum
  0.5 mm²
• Number of safety contacts
  3
• Switching frequency
  120 /h
• Switching element
  Opener (NC)
• Utilisation category AC-15
  2 A
• Ambient temperature, minimum
  -25 °C
• Rated insulation voltage Ui
  250 V
• Degree of protection
  IP65
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Height of sensor
  92 mm
• Length x Width x Height
  Suitable for mounting to profile systems: 40 mm
• Positive break force, minimum
  1 N
Terminal Connector
Screw connection
Mechanical life, minimum
1,000,000 Operations
Positive break angle
14 °
mounting hinge
Yes
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Material of the hinge
Aluminium
Material of the contacts, electrical
Silver
Gross weight
280 g
Standards
IEC/EN 60947-5-1, BG-GS-ET-15
