TESK-SI-11L2-3M Schmersal Safety Switches
Part#:TESK-SI-11L2-3M
Manufacturer:Schmersal
Alt. Part#:103005750
Product Lifecycle:Active
Get a quick Quote!

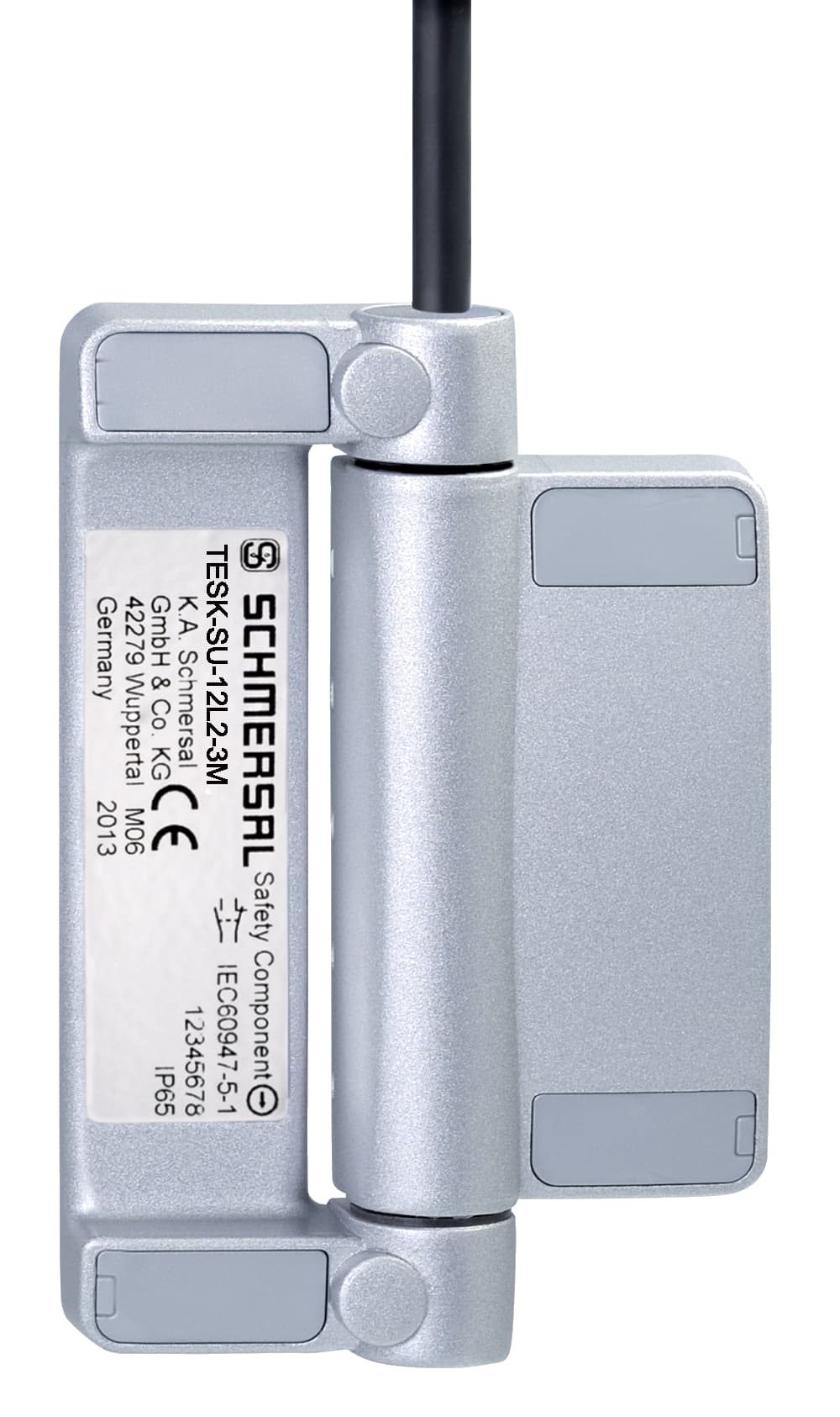

TESK-SI-11L2-3M Schmersal - Safety switch for hinged guards; Hinge safety switch; cable above; with fixed switching angle; pre-set for interior fitting; Standard hinge; Metal enclosure
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the TESK-SI-11L2-3M Schmersal price in the box on the right side or send a quick quote.
Product Details
- Switching frequency 1,200 /h
- Switching principle Creep circuit element
- Utilisation category AC-15 2 A
- Utilisation category DC-13 1 A
- Ambient temperature, minimum -25 °C
- Degree of protection IP65
- Rated insulation voltage Ui 300 V
- Rated impulse withstand voltage Uimp 2.5 kV
- Ambient temperature, maximum +65 °C
- Width of sensor 78 mm
- Height of sensor 116 mm
- Cable section, maximum 1 mm²
- Alignment aid Yes
- Length of sensor 20 mm
- Cable section, minimum 0.5 mm²
- Number of safety contacts 2
- Mechanical life, minimum 1,000,000 Operations
- Mounting inside Yes
- Enclosure material Zinc die-cast
- Terminal Connector cable
- Length of cable 3 m
- Colour of the housing Silver
- Switching element NO contact, NC contact
- Thermal test current 2.5 A
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Material of the contacts, electrical Silver-nickel alloy 10
- Number of auxiliary contacts 1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
TESK-SI-11L2-3M Description
TESK-SI-11L2-3M Schmersal - Safety switch for hinged guards; Hinge safety switch; cable above; with fixed switching angle; pre-set for interior fitting; Standard hinge; Metal enclosure
Related documents TESK-SI-11L2-3M Specs
