T5C 236-11Z-M20 Schmersal Electronic Components
Part#:T5C 236-11Z-M20
Alt. Part#:101153304
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

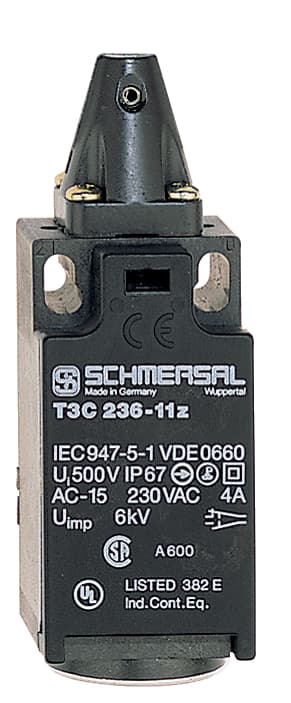

Safety switch for hinged guards; Flap safety switches; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 30 mm x 88,5 mm x 30 mm; Actuator heads can be repositioned by 4 x 90°
Product Details
- Switching principle Creep circuit element
- Utilisation category DC-13 1 A
- Switching frequency 5,000 /h
- Switching element NO contact, NC contact
- Utilisation category AC-15 4 A
- Rated insulation voltage Ui 500 V
- Thermal test current 10 A
- Ambient temperature, minimum -30 °C
- Rated impulse withstand voltage Uimp 6 kV
- Ambient temperature, maximum +80 °C
- Degree of protection IP67
- Height of the actuator 78 mm
- Height of sensor 94.5 mm
- Width of sensor 93 mm
- Cable section, minimum 1 x 0.75 mm²
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Length of sensor 30 mm
- Cable section, maximum 1 x 2.5 mm²
- Positive break torque 0.2 Nm
- Terminal Connector Screw connection
- Opening angle 180°
- Number of auxiliary contacts 1
- Material of the actuator Stainless steel
- Gross weight 90 g
- Actuating element Swivel lever
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Mechanical life, minimum 1,000,000 Operations
- Positive break angle 12.5 °
- Number of safety contacts 1
- Material of the contacts, electrical Silver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T5C 236-11Z-M20 on Applied Automation is $136.00. Order now.
