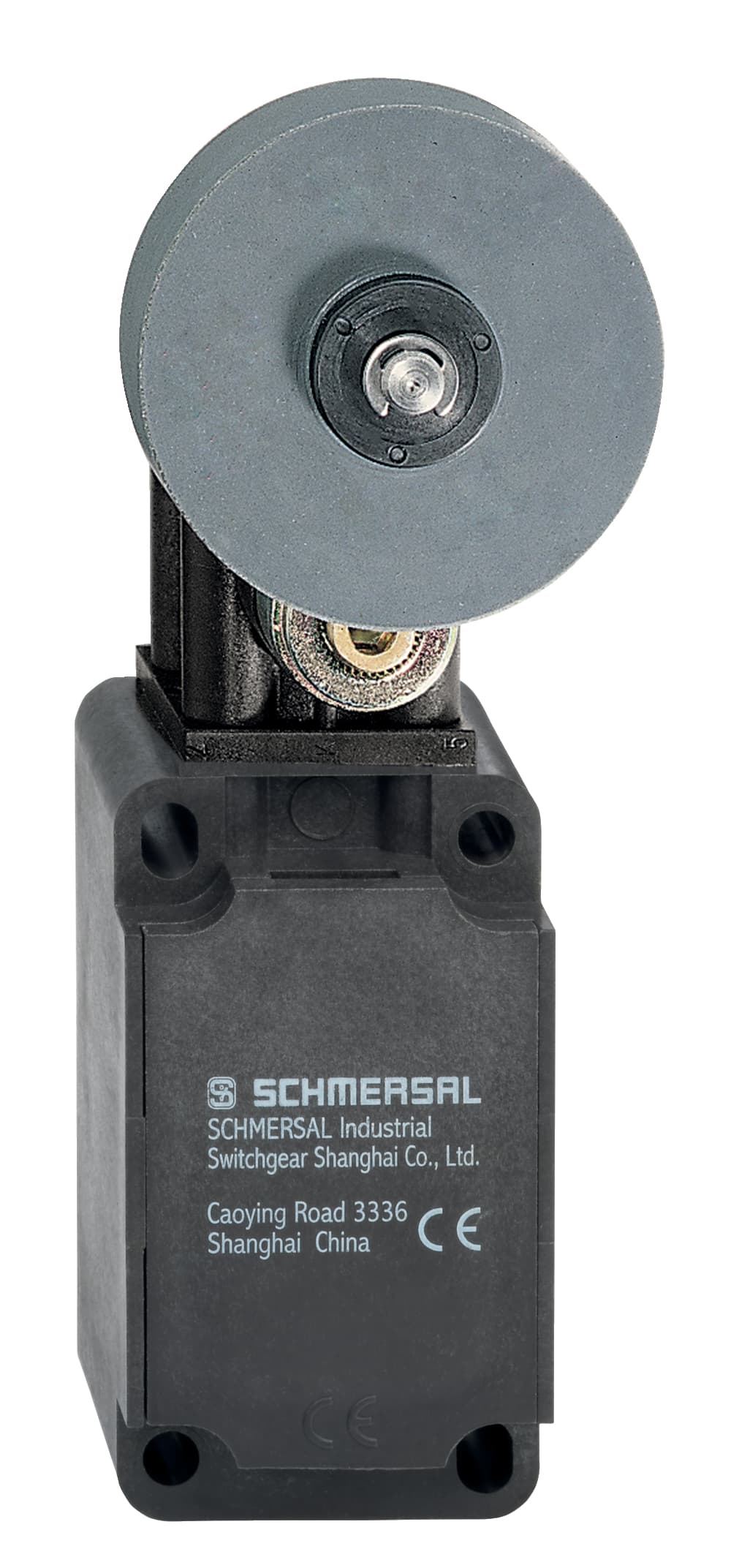

T4V7H 335-12Z-M20 Schmersal Electronic Components

Product Details

• Switching principle
  Slow action
• Switching frequency
  5,000 /h
• Bounce duration, maximum
  2 ms
• Utilisation category DC-13
  4 A
• Switching element
  NO contact, NC contact
• Utilisation category AC-15
  230 VAC
• Rated insulation voltage Ui
  250 V
• Thermal test current
  10 A
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Rated impulse withstand voltage Uimp
  4 kV
• Ambient temperature, maximum
  +80 °C
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Ambient temperature, minimum
  -30 °C
• Height of sensor
  173.5 mm
• Length of sensor
  57.3 mm
• Width of sensor
  40.5 mm
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Terminal Connector
  Screw connection
• Cable section, minimum
  0.75 mm²
• Note (Actuating speed)
  Actuating speed with actuating angle 30° to switch axis
Actuating element
Roller lever
Mechanical life, minimum
30,000,000 Operations
Cable section, maximum
2.5 mm²
Actuating torque, minimum
0.3 Nm
Note (Switchover time)
Switchover time in accordance with actuating speed
Actuating speed, maximum
2.5 m/s
Material of the contacts, electrical
Silver
Enclosure material
Light alloy die-casting
Roller material
Plastic
Number of safety contacts
2
Lever material
Metal film
Gross weight
270 g
Housing construction form
Norm construction design
Number of auxiliary contacts
1
Enclosure coating material
painted
