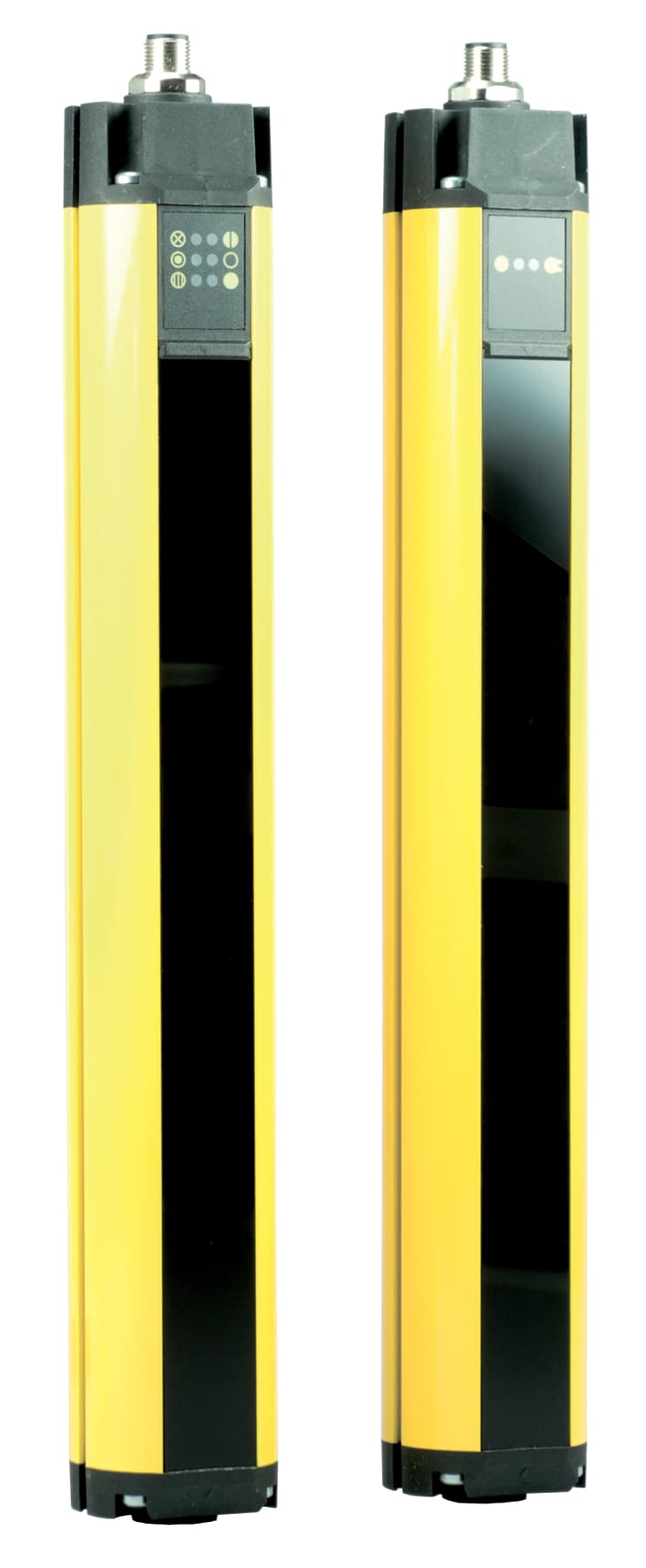

SLC445-ER-0890-30-01 Schmersal Safety Light Curtains
Part#:SLC445-ER-0890-30-01
Alt. Part#:103005412
Manufacturer:Schmersal
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLC445-ER-0890-30-01 Schmersal - Safety light curtains, Safety light grids; Safety light curtains; Multifunctional; Muting; Cyclic mode; Double acknowledgement/reset; Multiscan; Safety type 4 in accordance with IEC 61496-1; active integrated set-up tool; Blanking: fixed/floating; Status
Product Details
- Versions p-type
- Electrical power consumption of the transmitter, maximum 5 W
- Output current, (fail-safe output), maximum 0.25 A
- Electrical power consumption of the receiver, maximum 10 W
- Voltage type DC (direct current)
- Switching voltage OSSD, HIGH signal 24 V
- Protection rating III
- Storage and transport temperature, maximum +70 °C
- Ambient temperature, maximum +50 °C
- Storage and transport temperature, minimum -25 °C
- Ambient temperature, minimum -25 °C
- Degree of protection IP67 to EN 60529
- Wave length of the sensor 880 nm
- Terminal connector, Recipient Connector plug M12, 12-pole
- Length of the connectable cable, maximum 100 m
- Terminal, Connector, Transmitter Connector plug M12, 4-pole
- Terminal Connector Connector
- Height of the Sensor (Transmitter) 971 mm
- Height of the Sensor (Receiver) 981 mm
- Length of sensor 33 mm
- Width of sensor 27.8 mm
- Range, protection field, maximum 10,000 mm
- Range, protection field, minimum 300 mm
- Height of the protection field 890 mm
- Detection ability for test bodies at v = 1.6 m/s 30 mm
- Integral System Diagnostics Yes
- Number of beams 44
- 7-segment display Yes
- Reduced resolution Yes
- Number of fail-safe digital outputs 2
- Integral System Diagnostics, status Yes
- Hide function Yes
- Beam coding available Yes
- Gross weight 1,680 g
- Reaction time, maximum 10 ms
- Enclosure material Aluminium
- Muting function Yes
- Override Yes
- Standards EN 61496-1, CLC/TS 61496-2
- Contactor control integrated Yes
- Clock control possible Yes
- Restart interlock (manual reset) Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLC445-ER-0890-30-01 on Applied Automation is $3,314.00. Order now.
