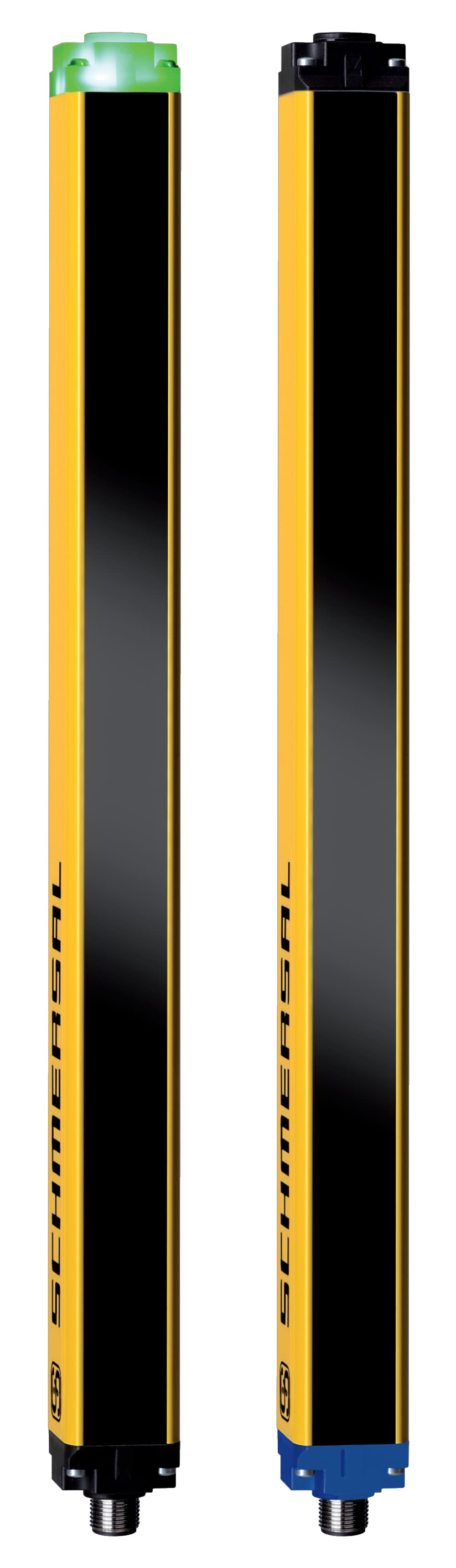

SLC440COM-ER-1290-35 Schmersal Safety Light Curtains
Part#:SLC440COM-ER-1290-35
Manufacturer:Schmersal
Alt. Part#:103004011
Product Lifecycle:Active
Get a quick Quote!
SLC440COM-ER-1290-35 Schmersal - Safety light curtains, Safety light grids; Safety light curtains; Safety type 4 in accordance with IEC 61496-1; Status and diagnostics via App with bluetooth; Automatic start or restart interlock; active integrated set-up tool; Process safety with highest
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Light Curtains that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLC440COM-ER-1290-35 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Electrical power consumption of the transmitter, maximum 5 W
- Versions p-type
- Output current, (fail-safe output), maximum 0.25 A
- Electrical power consumption of the receiver, maximum 10 W
- Switching voltage OSSD, HIGH signal 24 V
- Voltage type DC (direct current)
- Protection rating III
- Ambient temperature, minimum -10 °C
- Ambient temperature, maximum +50 °C
- Storage and transport temperature, minimum -25 °C
- Storage and transport temperature, maximum +70 °C
- Degree of protection IP67 to EN 60529
- Wave length of the sensor 880 nm
- Terminal, Connector, Transmitter Connector plug M12, 4-pole
- Terminal connector, Recipient Connector plug M12, 5-pole
- Length of the connectable cable, maximum 100 m
- Range, protection field, minimum 300 mm
- Terminal Connector Connector
- Height of sensor 1,331 mm
- Width of sensor 27.8 mm
- Height of the protection field 1,290 mm
- Length of sensor 33 mm
- Range, protection field, maximum 7,000 mm
- Detection ability for test bodies at v = 1.6 m/s 35 mm
- Number of beams 44
- Standards EN 61496-1, EN 61496-2
- Integral System Diagnostics Yes
- Number of fail-safe digital outputs 2
- Enclosure material Aluminium
- Gross weight 2,120 g
- Restart interlock (manual reset) Yes
- Integral System Diagnostics, status Yes
- Reaction time, maximum 20 ms
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLC440COM-ER-1290-35 Description
SLC440COM-ER-1290-35 Schmersal - Safety light curtains, Safety light grids; Safety light curtains; Safety type 4 in accordance with IEC 61496-1; Status and diagnostics via App with bluetooth; Automatic start or restart interlock; active integrated set-up tool; Process safety with highest
