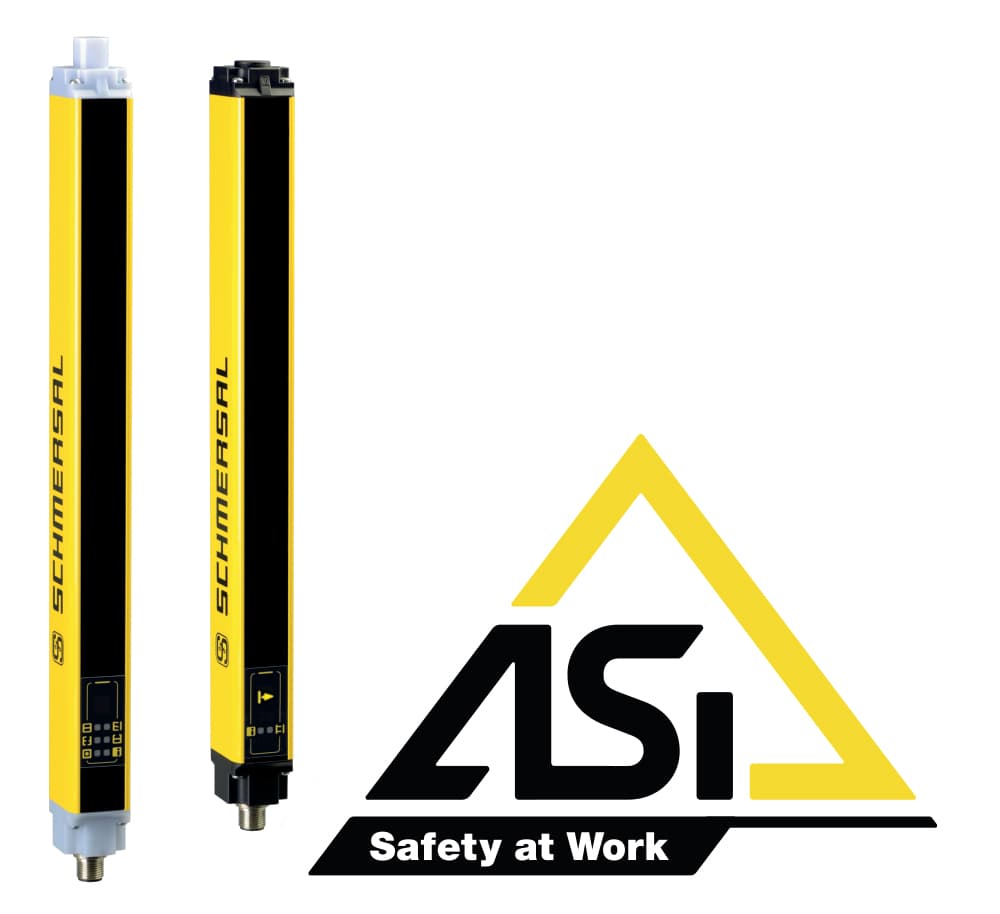

SLC440AS-ER-1610-30 Schmersal Safety Light Curtains

Product Details

• Power consumption, Transmitter
  75 mA
• Power consumption, Receiver
  150 mA
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• AS-i Input module address
  0
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Parameter bits, P2
  No function
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Parameter bits, P1
  Low beam quality
• AS-i Parameter bits, P0
  No function
• AS-i Profile
  S-0.B.F.E
• AS-i Outputs, DO 0 … DO 3
  No Function
• AS-i Version
  V 3.0
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Current consumption, maximum
  50 mA
• AS-i Specification
  Safety-Slave
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• AS-i Operating voltage AS-i maximum
  31.6 VDC
• Rated insulation voltage Ui
  32 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Degree of pollution to VDE 0100
2
Overvoltage category
III
AS-i Operating voltage, minimum
18 VDC
Restistance to shock
10 g / 16 ms
Protection rating
III
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 0.35 mm
Height of Receiver
1,743 mm
Degree of protection
IP67 to EN 60529
Width of sensor
27.8 mm
Length of sensor
33 mm
Height of transmitter
1,723 mm
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-10 °C
Storage and transport temperature, maximum
+70 °C
Ambient temperature, maximum
+50 °C
Terminal, Connector, Transmitter
Connector plug M12, 4-pole
Height of the protection field
1,610 mm
Terminal Connector
Connector
Terminal connector, Recipient
Connector plug M12, 5-pole
Range, protection field, maximum
10,000 mm
Detection ability for test bodies at v = 1.6 m/s
30 mm
Wave length of the sensor
880 nm
Range, protection field, minimum
300 mm
Number of beams
80
Hide function
Yes
Standards
EN 50295, EN 62061, EN 61496-1
Enclosure material
Aluminium
Active principle
optoelectronic
Reaction time, maximum
23 ms
Safety functions
Yes
Integral System Diagnostics, status
Yes
Gross weight
2,730 g
7-segment display
Yes

Related documents SLC440AS-ER-1610-30 Specs
