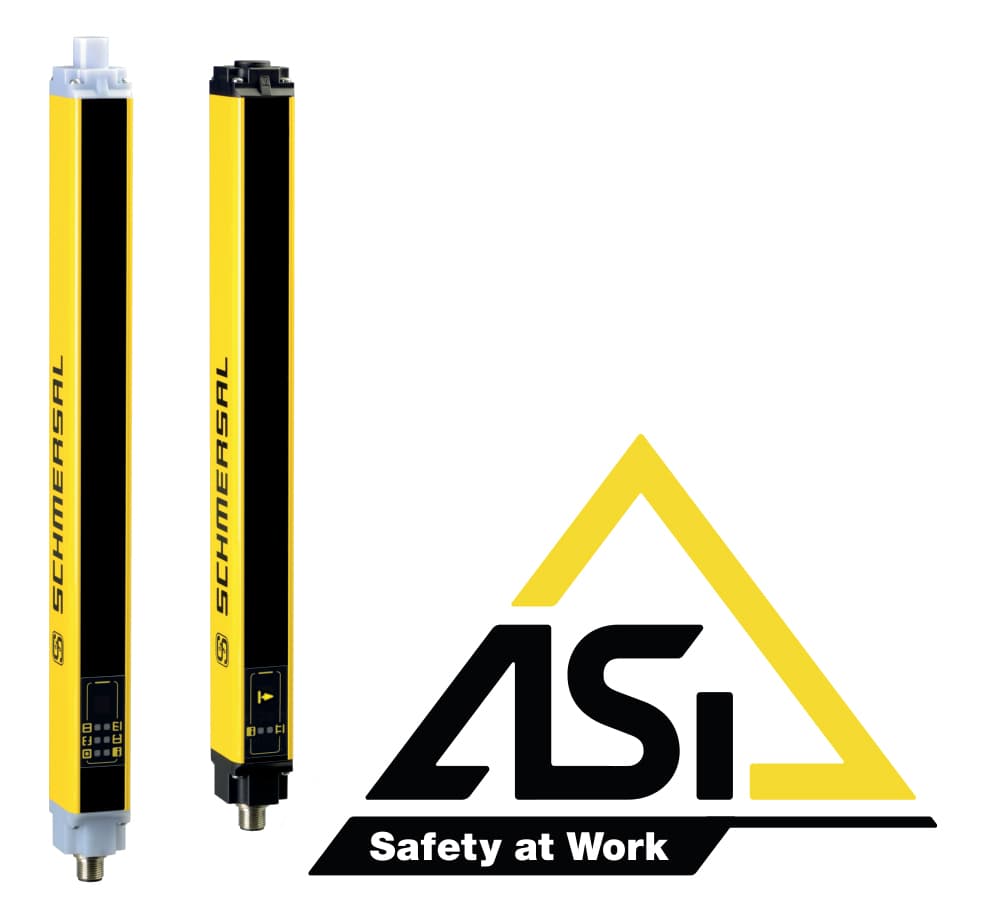

SLC440AS-ER-1370-30 Schmersal Safety Light Curtains

Product Details

• Power consumption, Transmitter
  75 mA
• Power consumption, Receiver
  150 mA
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Input module address
  0
• AS-i Parameter bits, P2
  No function
• AS-i Parameter bits, P1
  Low beam quality
• AS-i Outputs, DO 0 … DO 3
  No Function
• AS-i Parameter bits, P0
  No function
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Profile
  S-0.B.F.E
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Version
  V 3.0
• AS-i Specification
  Safety-Slave
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• AS-i Current consumption, maximum
  50 mA
• AS-i Operating voltage AS-i maximum
  31.6 VDC
• AS-i Operating voltage, minimum
  18 VDC
Degree of pollution to VDE 0100
2
Overvoltage category
III
Protection rating
III
Rated insulation voltage Ui
32 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Restistance to shock
10 g / 16 ms
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 0.35 mm
Storage and transport temperature, maximum
+70 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-10 °C
Ambient temperature, maximum
+50 °C
Width of sensor
27.8 mm
Height of transmitter
1,483 mm
Degree of protection
IP67 to EN 60529
Length of sensor
33 mm
Height of Receiver
1,503 mm
Terminal, Connector, Transmitter
Connector plug M12, 4-pole
Range, protection field, minimum
300 mm
Terminal connector, Recipient
Connector plug M12, 5-pole
Wave length of the sensor
880 nm
Terminal Connector
Connector
Range, protection field, maximum
10,000 mm
Detection ability for test bodies at v = 1.6 m/s
30 mm
Height of the protection field
1,370 mm
Gross weight
2,330 g
Number of beams
68
Enclosure material
Aluminium
Reaction time, maximum
23 ms
Hide function
Yes
Active principle
optoelectronic
Safety functions
Yes
Integral System Diagnostics, status
Yes
7-segment display
Yes
Standards
EN 50295, EN 62061, EN 61496-1

Related documents SLC440AS-ER-1370-30 Specs
