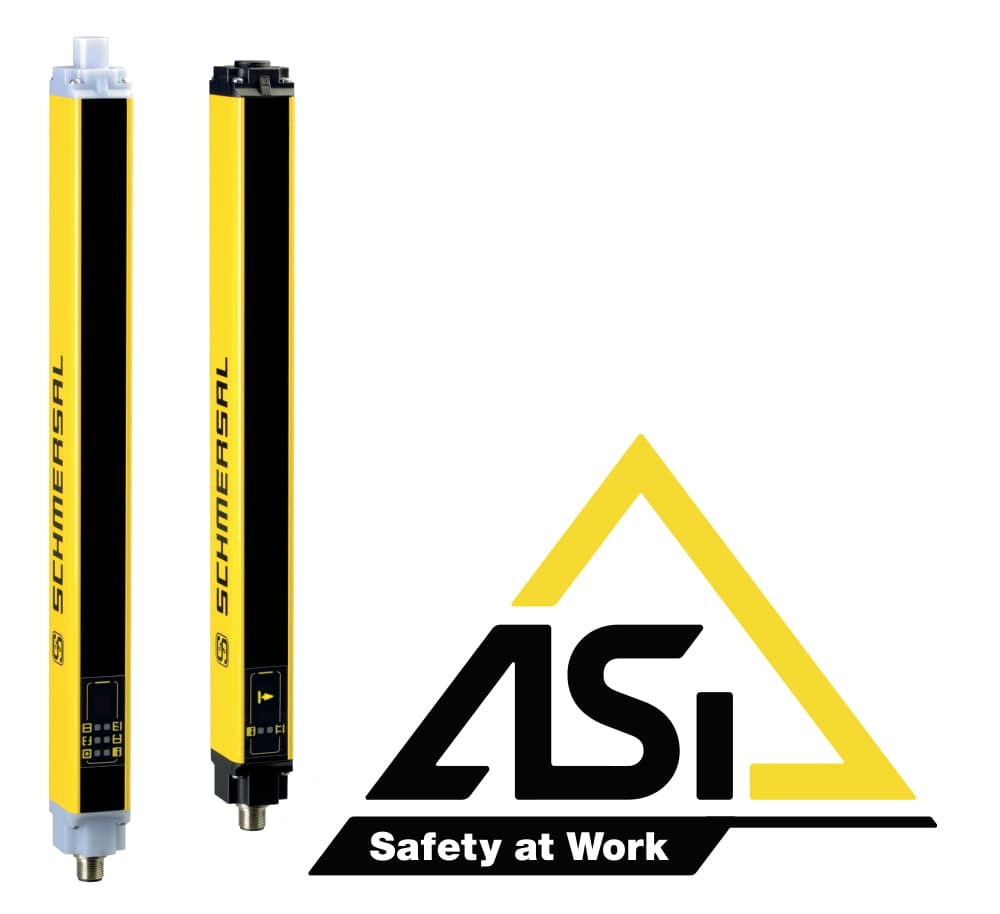

SLC440AS-ER-1210-14 Schmersal Safety Light Curtains

Product Details

• Power consumption, Transmitter
  75 mA
• Power consumption, Receiver
  150 mA
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• AS-i Input module address
  0
• AS-i Parameter bits, P2
  No function
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Parameter bits, P0
  No function
• AS-i Parameter bits, P1
  Low beam quality
• AS-i Outputs, DO 0 … DO 3
  No Function
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Specification
  Safety-Slave
• AS-i Version
  V 3.0
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• AS-i Current consumption, maximum
  50 mA
• AS-i Operating voltage AS-i maximum
  31.6 VDC
• AS-i Profile
  S-0.B.F.E
• Degree of pollution to VDE 0100
  2
AS-i Operating voltage, minimum
18 VDC
Overvoltage category
III
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 0.35 mm
Storage and transport temperature, maximum
+70 °C
Rated impulse withstand voltage Uimp
0.8 kV
Restistance to shock
10 g / 16 ms
Protection rating
III
Storage and transport temperature, minimum
-25 °C
Rated insulation voltage Ui
32 VDC
Ambient temperature, maximum
+50 °C
Ambient temperature, minimum
-10 °C
Width of sensor
27.8 mm
Degree of protection
IP67 to EN 60529
Length of sensor
33 mm
Height of Receiver
1,343 mm
Height of transmitter
1,323 mm
Terminal, Connector, Transmitter
Connector plug M12, 4-pole
Terminal Connector
Connector
Terminal connector, Recipient
Connector plug M12, 5-pole
Wave length of the sensor
880 nm
Height of the protection field
1,210 mm
Range, protection field, maximum
7,000 mm
Number of beams
120
Range, protection field, minimum
300 mm
Safety functions
Yes
Detection ability for test bodies at v = 1.6 m/s
14 mm
7-segment display
Yes
Gross weight
2,130 g
Reaction time, maximum
23 ms
Hide function
Yes
Active principle
optoelectronic
Integral System Diagnostics, status
Yes
Enclosure material
Aluminium
Standards
EN 50295, EN 62061, EN 61496-1

Related documents SLC440AS-ER-1210-14 Specs
