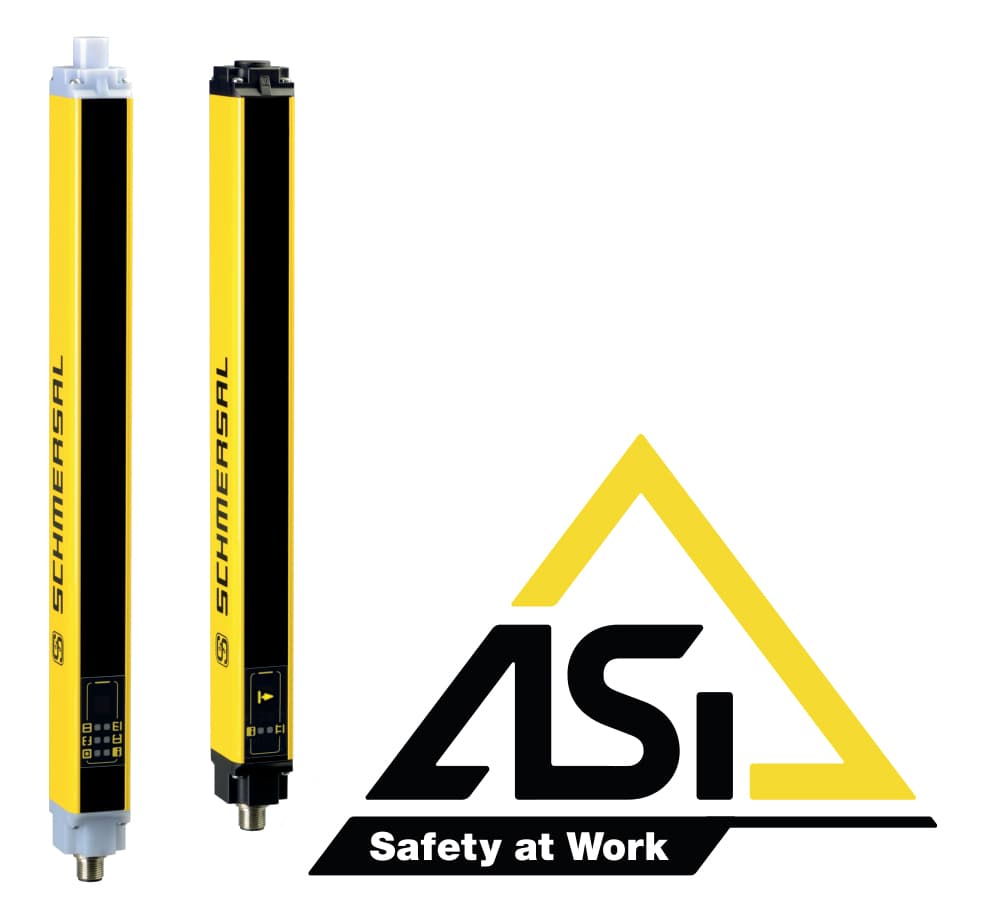

SLC440AS-ER-1130-14 Schmersal Safety Light Curtains

Product Details

• Power consumption, Transmitter
  75 mA
• Power consumption, Receiver
  150 mA
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Input module address
  0
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Parameter bits, P2
  No function
• AS-i Parameter bits, P1
  Low beam quality
• AS-i Parameter bits, P0
  No function
• AS-i Outputs, DO 0 … DO 3
  No Function
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Profile
  S-0.B.F.E
• AS-i Current consumption, maximum
  50 mA
• AS-i Version
  V 3.0
• AS-i Specification
  Safety-Slave
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• Overvoltage category
  III
• Degree of pollution to VDE 0100
  2
AS-i Operating voltage AS-i maximum
31.6 VDC
Rated impulse withstand voltage Uimp
0.8 kV
AS-i Operating voltage, minimum
18 VDC
Rated insulation voltage Ui
32 VDC
Protection rating
III
Restistance to shock
10 g / 16 ms
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 0.35 mm
Storage and transport temperature, minimum
-25 °C
Length of sensor
33 mm
Storage and transport temperature, maximum
+70 °C
Ambient temperature, maximum
+50 °C
Degree of protection
IP67 to EN 60529
Ambient temperature, minimum
-10 °C
Terminal connector, Recipient
Connector plug M12, 5-pole
Height of Receiver
1,263 mm
Width of sensor
27.8 mm
Height of transmitter
1,243 mm
Range, protection field, minimum
300 mm
Number of beams
112
Height of the protection field
1,130 mm
Detection ability for test bodies at v = 1.6 m/s
14 mm
Terminal, Connector, Transmitter
Connector plug M12, 4-pole
Range, protection field, maximum
7,000 mm
Terminal Connector
Connector
Wave length of the sensor
880 nm
Gross weight
1,930 g
Reaction time, maximum
23 ms
Integral System Diagnostics, status
Yes
Hide function
Yes
Active principle
optoelectronic
Safety functions
Yes
7-segment display
Yes
Enclosure material
Aluminium
Standards
EN 50295, EN 62061, EN 61496-1

Related documents SLC440AS-ER-1130-14 Specs
