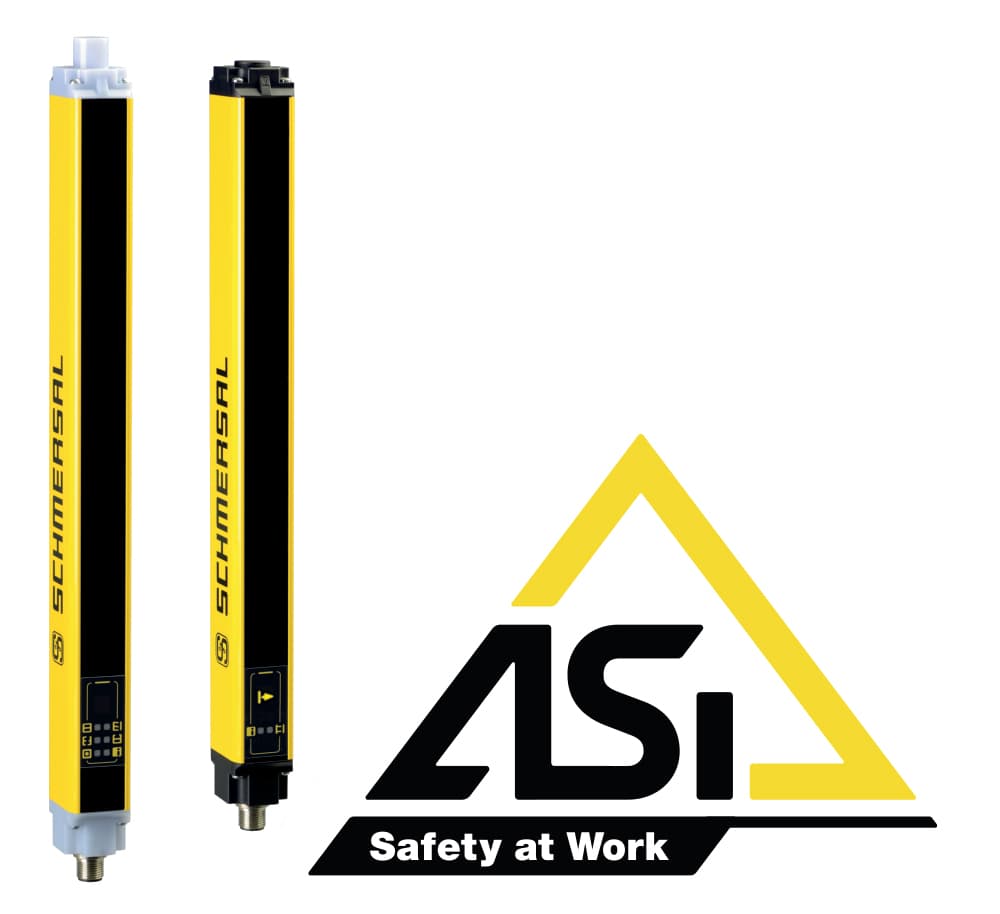

SLC440AS-ER-0650-30 Schmersal Safety Light Curtains

Product Details

• Power consumption, Transmitter
  75 mA
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Power consumption, Receiver
  150 mA
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Input module address
  0
• AS-i Parameter bits, P3
  Internal device error (FID)
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• AS-i Parameter bits, P1
  Low beam quality
• AS-i Parameter bits, P2
  No function
• AS-i Outputs, DO 0 … DO 3
  No Function
• AS-i Parameter bits, P0
  No function
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Specification
  Safety-Slave
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Profile
  S-0.B.F.E
• AS-i Version
  V 3.0
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• AS-i Current consumption, maximum
  50 mA
• AS-i Operating voltage AS-i maximum
  31.6 VDC
• AS-i Operating voltage, minimum
  18 VDC
Degree of pollution to VDE 0100
2
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
III
Rated insulation voltage Ui
32 VDC
Restistance to shock
10 g / 16 ms
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 0.35 mm
Storage and transport temperature, maximum
+70 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, maximum
+50 °C
Ambient temperature, minimum
-10 °C
Height of the Sensor (Transmitter)
763 mm
Degree of protection
IP67 to EN 60529
Width of sensor
27.8 mm
Length of sensor
33 mm
Terminal, Connector, Transmitter
Connector plug M12, 4-pole
Height of Receiver
783 mm
Terminal connector, Recipient
Connector plug M12, 5-pole
Terminal Connector
Connector
Range, protection field, maximum
10,000 mm
Height of the protection field
650 mm
Wave length of the sensor
880 nm
Range, protection field, minimum
300 mm
Number of beams
32
Detection ability for test bodies at v = 1.6 m/s
30 mm
Integral System Diagnostics, status
Yes
Reaction time, maximum
13 ms
Active principle
optoelectronic
Safety functions
Yes
Gross weight
1,230 g
7-segment display
Yes
Enclosure material
Aluminium
Hide function
Yes
Standards
EN 50295, EN 62061, EN 61496-1
