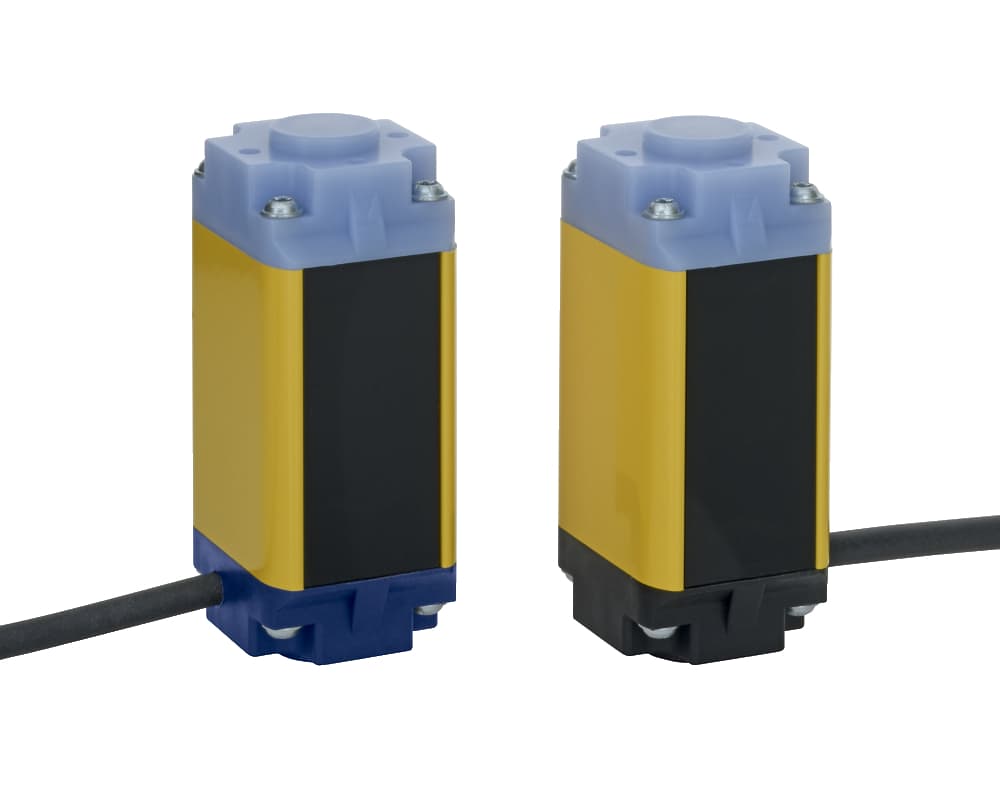

SLB440-ER-4-LST-H Schmersal Safety Light Curtains
Part#:SLB440-ER-4-LST-H
Manufacturer:Schmersal
Alt. Part#:103015490
Product Lifecycle:Active
Get a quick Quote!
SLB440-ER-4-LST-H Schmersal - Safety light barriers; SLB 440 Series -; Compact design With integral evaluation; Height range 75 m (Reserve up to 90 m); Safe OSSD outputs to PLe; Automatic start or restart interlock; Sturdy metal enclosure with M12 connector or cable; Version with heat
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Light Curtains that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLB440-ER-4-LST-H Schmersal price in the box on the right side or send a quick quote.
Product Details
- Versions p-type
- Output current, (fail-safe output), maximum 0.2 A
- Length of cable, maximum 100 m
- Electrical power consumption of the transmitter, maximum 5 W
- Electrical power consumption of the receiver, maximum 5 W
- Ambient temperature, maximum +50 °C
- Voltage type DC (direct current)
- Switching voltage OSSD, HIGH signal 24 V
- Protection rating III
- Storage and transport temperature, minimum -30 °C
- Storage and transport temperature, maximum +70 °C
- Ambient temperature, minimum -30 °C
- Degree of protection IP67 to EN 60529
- Height 111 mm
- Width 27.8 mm
- Terminal, Connector, Transmitter Cable with connector plug M12, 4-pole
- Length 33 mm
- Terminal connector, Recipient Cable with connector plug M12, 5-pole
- Terminal Connector Connector M12
- Range, protection field, maximum 75,000 mm
- Wave length of the sensor 880 nm
- Range, protection field, minimum 300 mm
- Beam coding available Yes
- Detection ability for test bodies at v = 1.6 m/s 100 mm
- Number of fail-safe digital outputs 2
- Number of beams 1
- Restart interlock (manual reset) Yes
- Reaction time, minimum 7 ms
- Standards EN 61496-1, EN 61496-2
- Integral System Diagnostics, status Yes
- Gross weight 270 g
- Reaction time, maximum 22 ms
- Integral System Diagnostics Yes
- Enclosure material Aluminium
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLB440-ER-4-LST-H Description
SLB440-ER-4-LST-H Schmersal - Safety light barriers; SLB 440 Series -; Compact design With integral evaluation; Height range 75 m (Reserve up to 90 m); Safe OSSD outputs to PLe; Automatic start or restart interlock; Sturdy metal enclosure with M12 connector or cable; Version with heat
