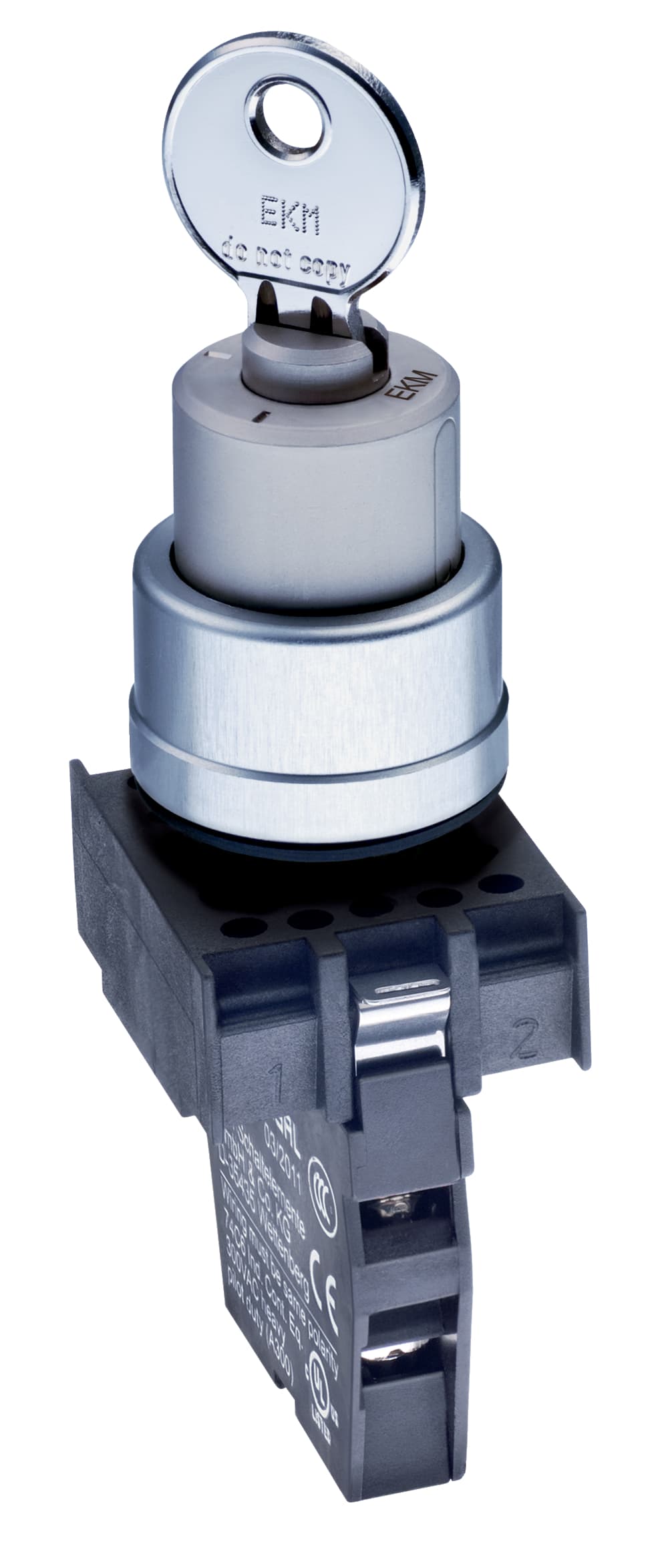

SHGV/ESS21S2/200/103 Schmersal Electronic Components

Product Details

• Utilisation category DC-13
  5 A
• Degree of protection of clips or terminals
  IP20
• Restistance to shock
  110 g / 4 ms
• Thickness, of the front panel, minimum
  1 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Cable section, maximum
  2.5 mm², rigid, 2.5 mm², flexible
• Key withdrawal position
  Position I, 90°
• Bounce duration, maximum
  5 ms
• Switching principle
  Slow action
• Switching element
  NC contact, NO contact
• Switching frequency
  5 /h
• Suitable for low-voltages
  ≥ 5 V / ≥ 3.2 mA
• Rated insulation voltage Ui
  400 V
• Thermal test current
  10 A
• Utilisation category AC-15
  8 A
• Resistant to vibration
  Resistance to vibration: 20 g / 10…200 Hz
• Ambient temperature, maximum
  +75 °C
• Ambient temperature, minimum
  -25 °C
• Degree of protection of the switch rooms
  IP40
• Spacing
  40 x 50 mm
Thickness of the front panel, maximum
6 mm
Diameter hole
22.3 mm
Degree of protection
IP65
Diameter of the front ring
29.5 mm
diameters for the cylinder lock
22 mm
Length x Width x Height
Height with key (and contact element): 60 mm (119 mm)
Tightening torque of Clips
1 Nm
Cable section, minimum
0.5 mm², rigid, 0.5 mm², flexible
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Terminal Connector
Screw connection
Key number
CODE_KEY_NUMBER200
Mounting
mounting flange
Tightening torque of the screw
0.6 Nm
Mechanical life, minimum
100,000 Operations
Latching position
right
Unlocking
Rotating unlatcher
Number of plunger
1
Number of switch positions
2
Number of auxiliary contacts
1
Fully insulated
Yes
Colour of the Contact element
Black
Colour of key head
Silver
Colour of the front ring
Silver
Latching
Yes
Versions
Key - Selector switch - Front plate mounting
Gross weight
136 g
Sealing type
Membrane, Lip gaskets, Form seals
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Material of the front ring
Aluminium
Material of the contacts, electrical
Silver
Colour of the cylinder lock
Silver
Material of the cylinder lock
Steel
Standards
IEC 60947-5-1, EN ISO 14119, IEC/EN 60947-1
Installation conditions (mechanical)
arbitrarily
