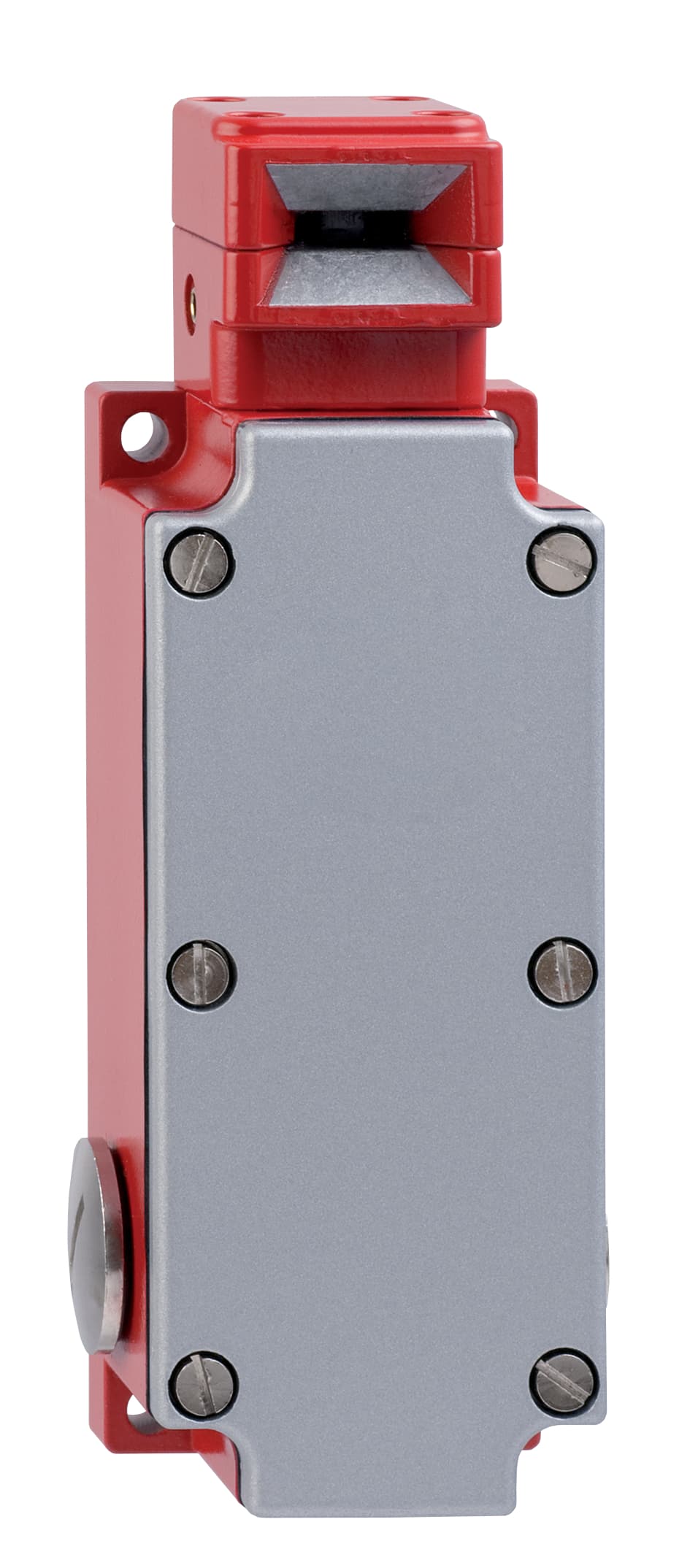

SDG01.1110 Schmersal Safety Switches

Product Details

• Switching principle
  Creep circuit element
• Switching element
  Opener (NC)
• Utilisation category DC-13
  5 A
• Utilisation category AC-15
  8 A
• Thermal test current
  10 A
• Degree of protection
  IP67 to EN 60529
• Ambient temperature, minimum
  -25 °C
• Rated impulse withstand voltage Uimp
  2.5 kV
• Rated insulation voltage Ui
  400 V
• Ambient temperature, maximum
  +70 °C
• positive break travel
  11 mm
• Length of sensor
  43 mm
• Width of sensor
  50 mm
• Height of sensor
  152 mm
• Gross weight
  400 g
• Number of safety contacts
  3
• Mechanical life, minimum
  1,000,000 Operations
• Standards
  EN 60947-5-1, EN ISO 14119, BG-GS-ET-15
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Cable section, maximum
  2.5 mm²
Enclosure material
Aluminium
Cable section, minimum
0.5 mm²
Terminal Connector
Screw connection
Note (Positive break force)
per NC
Material of the contacts, electrical
Silver
Enclosure coating material
painted
Positive break force, minimum
5 N
