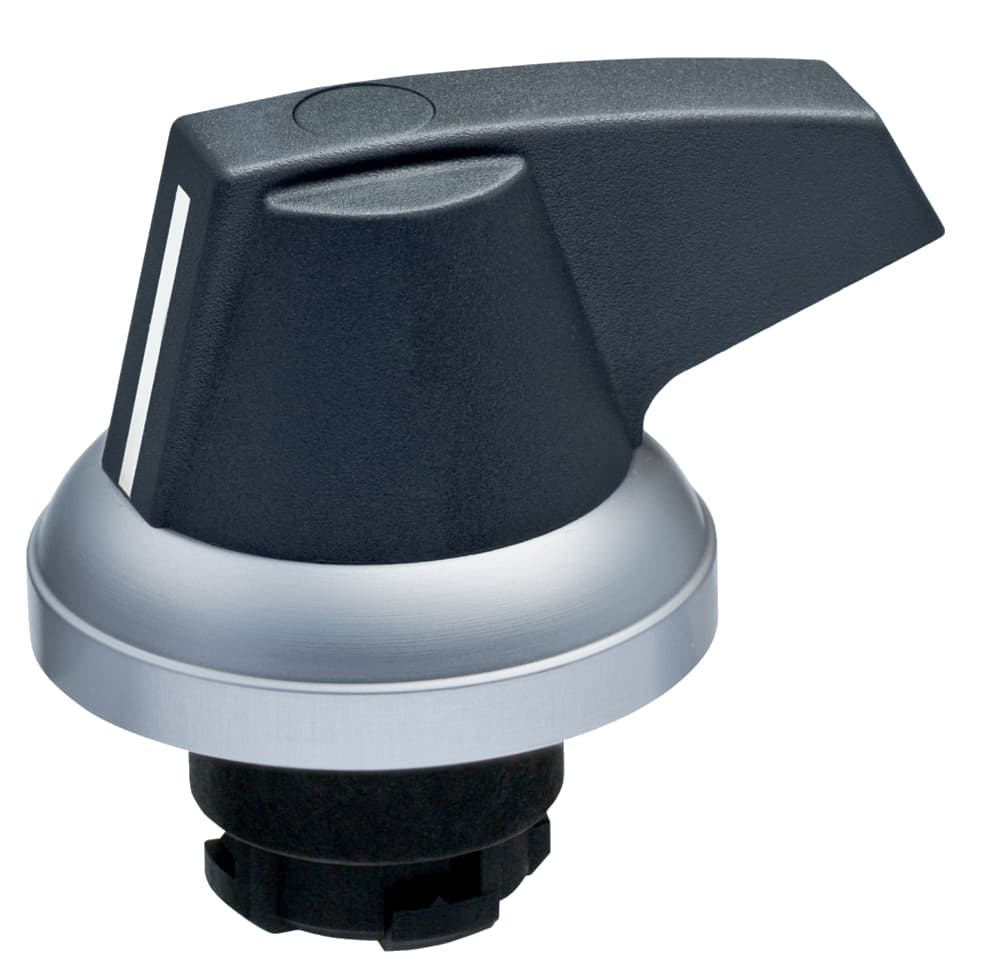

RWTS32 Schmersal Selector Switches

Product Details

• Restistance to shock
  50 g
• Ambient temperature, maximum
  +75 °C
• Ambient temperature, minimum
  +0 °C
• Thickness of the front panel, maximum
  6 mm
• Spacing
  50 x 60 mm
• Degree of protection
  IP65
• Diameter of the front ring
  39.5 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Thickness, of the front panel, minimum
  1 mm
• Diameter hole
  22.3 mm
• Diameter of the knob
  30 mm
• Mounting
  Mounting flange EFM
• Tightening torque of the screw
  0.6 Nm
• Length of the handle
  25 mm
• Diameter total
  39.5 mm
• Switching angle, right
  55 °
• Mechanical life, minimum
  300,000 Operations
• Switching angle, left
  35 °
• Touch position
  left
• Latching position
  right
Number of plunger
2
Unlocking
Left: without rotating unlatcher, Right: rotating unlatcher
Number of switch positions
3
Fully insulated
Yes
Probing possible
Yes
Latching
Yes
Gross weight
50 g
Material of the front ring
Aluminium
Toggle
short
Installation conditions (mechanical)
arbitrarily
Colour of the handle
Black
Versions
Toggle
Colour of the front ring
Silver
Sealing type
Membrane, Lip gaskets, Form seals
Material of the operators
ABS
Standards
EN 60947-5-1, IEC/EN 60947-1
