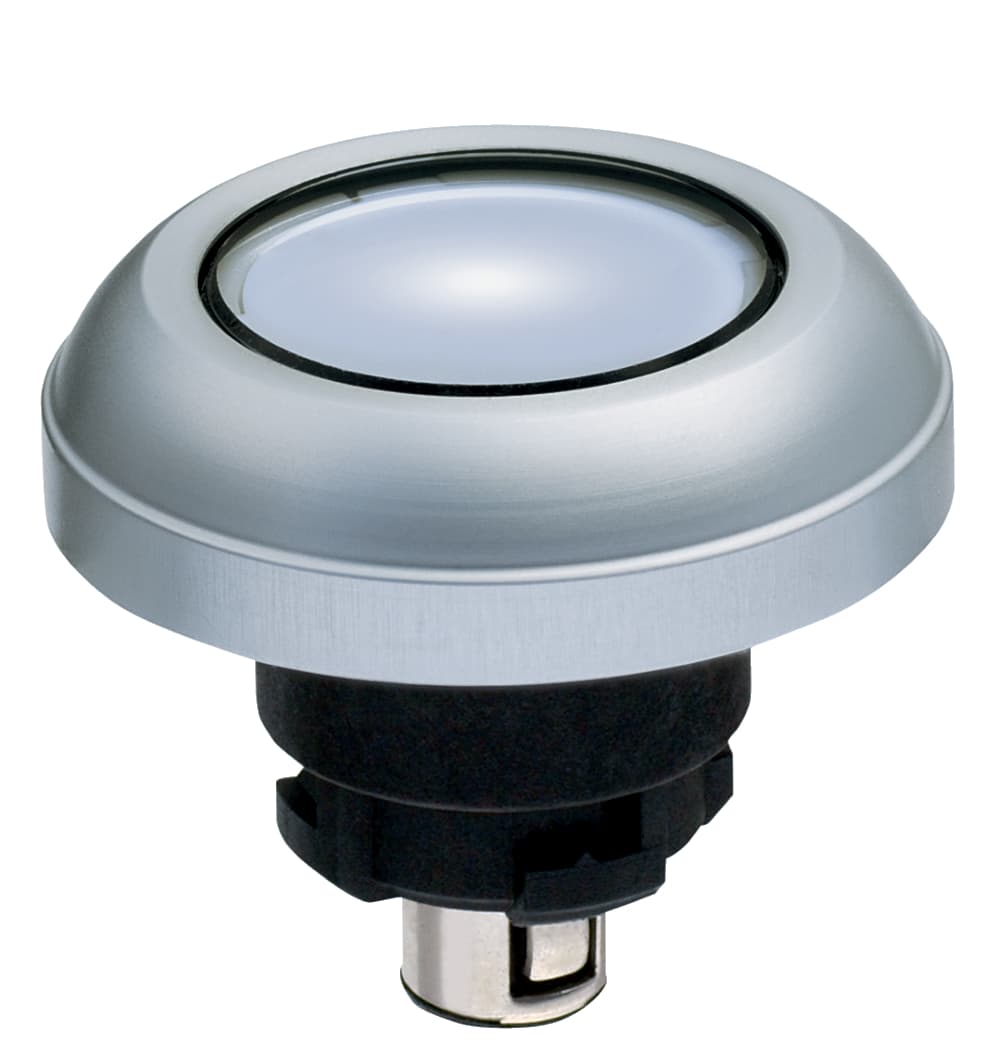

RMLFRT Schmersal Indicator Lights

Product Details

• Spacing
  40 x 50 mm
• Ambient temperature, maximum
  +75 °C
• Ambient temperature, minimum
  -25 °C
• Thickness of the front panel, maximum
  6 mm
• Degree of protection
  IP65
• Diameter hole
  22.3 mm
• Diameter of the front ring
  39.5 mm
• Thickness, of the front panel, minimum
  1 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Mounting
  Mounting flange ELM
• Mounting flange
  Yes
• Height of the dome
  0.5 mm
• Diameter of the dome
  25 mm
• Tightening torque of the screw
  0.6 Nm
• Integral System Diagnostics, general
  No
• Diameter total
  39.5 mm
• Fully insulated
  Yes
• Illuminable
  Yes
• Material of the dome
  Glass
• Material of the front ring
  Aluminium
Sealing type
Membrane, Lip gaskets, Form seals
Gross weight
45 g
Installation conditions (mechanical)
arbitrarily
Design
Round, Flat dome
Versions
LED - Indicator light - Front plate mounting
Standards
EN 60947-5-1, IEC/EN 60947-1
Colour of the dome
Red
Colour of the front ring
Silver
