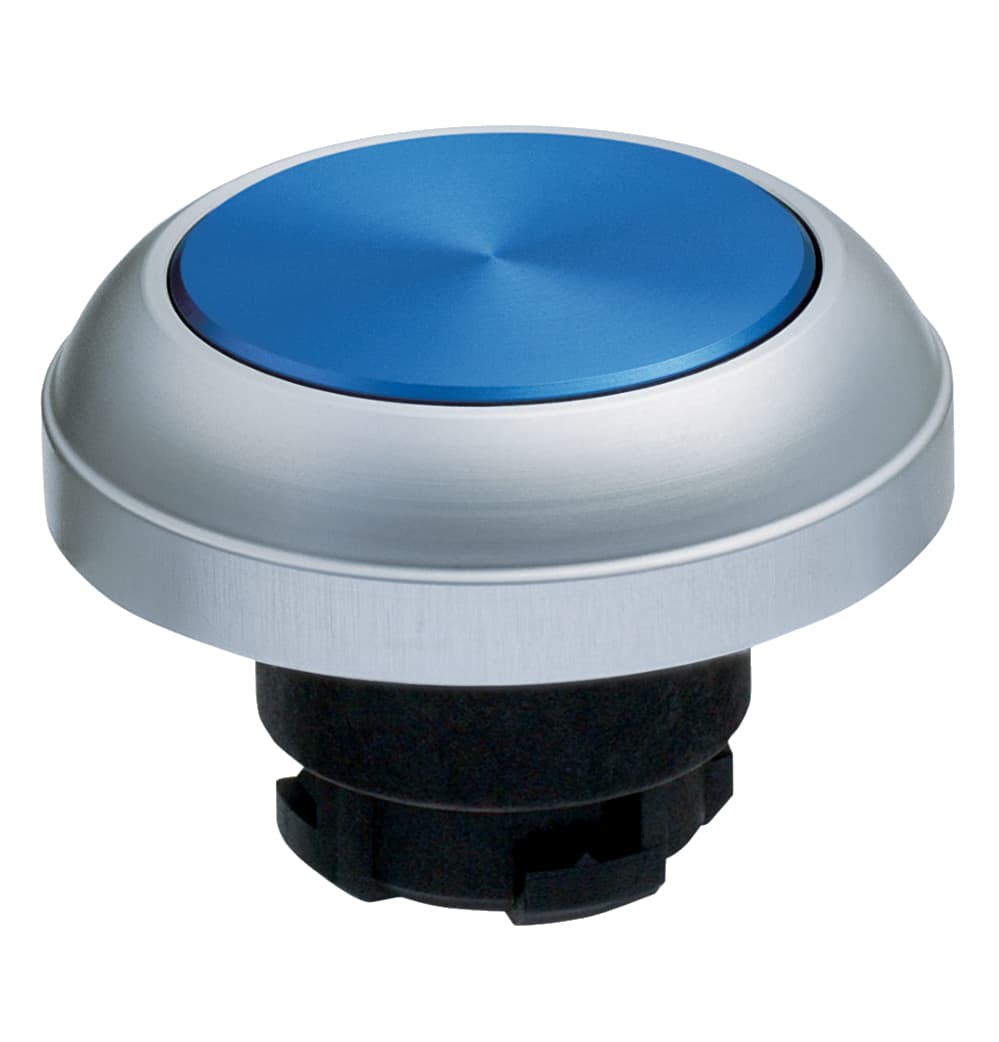

RDTBL Schmersal Pushbuttons

Product Details

• Ambient temperature, maximum
  +75 °C
• Switching frequency
  1,200 /h
• Ambient temperature, minimum
  -25 °C
• Spacing
  40 x 50 mm
• Degree of protection
  IP65
• Restistance to shock
  50 g
• Thickness of the front panel, maximum
  6 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Thickness, of the front panel, minimum
  1 mm
• Diameter hole
  22.3 mm
• Diameter of the front ring
  39.5 mm
• Height
  11 mm
• Diameter of touch surface
  28 mm
• Height of touch surface
  0.5 mm
• Diameter total
  39.5 mm
• Tightening torque of the screw
  0.6 Nm
• Mounting
  Mounting flange EFM
• Actuating force, approx.
  1.5 N
• Actuating stroke
  4 mm
• Unlocking
  without
Fully insulated
Yes
Mounting flange
Yes
Probing possible
Yes
Mechanical life, minimum
1,000,000 Operations
Gross weight
40 g
Colour of the front ring
Silver
Colour of the operating element
Blue
Versions
Embeddable button - Front plate mounting
Material of the operators
Aluminium
Standards
EN 60947-5-1, IEC/EN 60947-1
Sealing type
Membrane, Lip gaskets, Form seals
Design
Round
Installation conditions (mechanical)
arbitrarily
Material of the front ring
Aluminium
