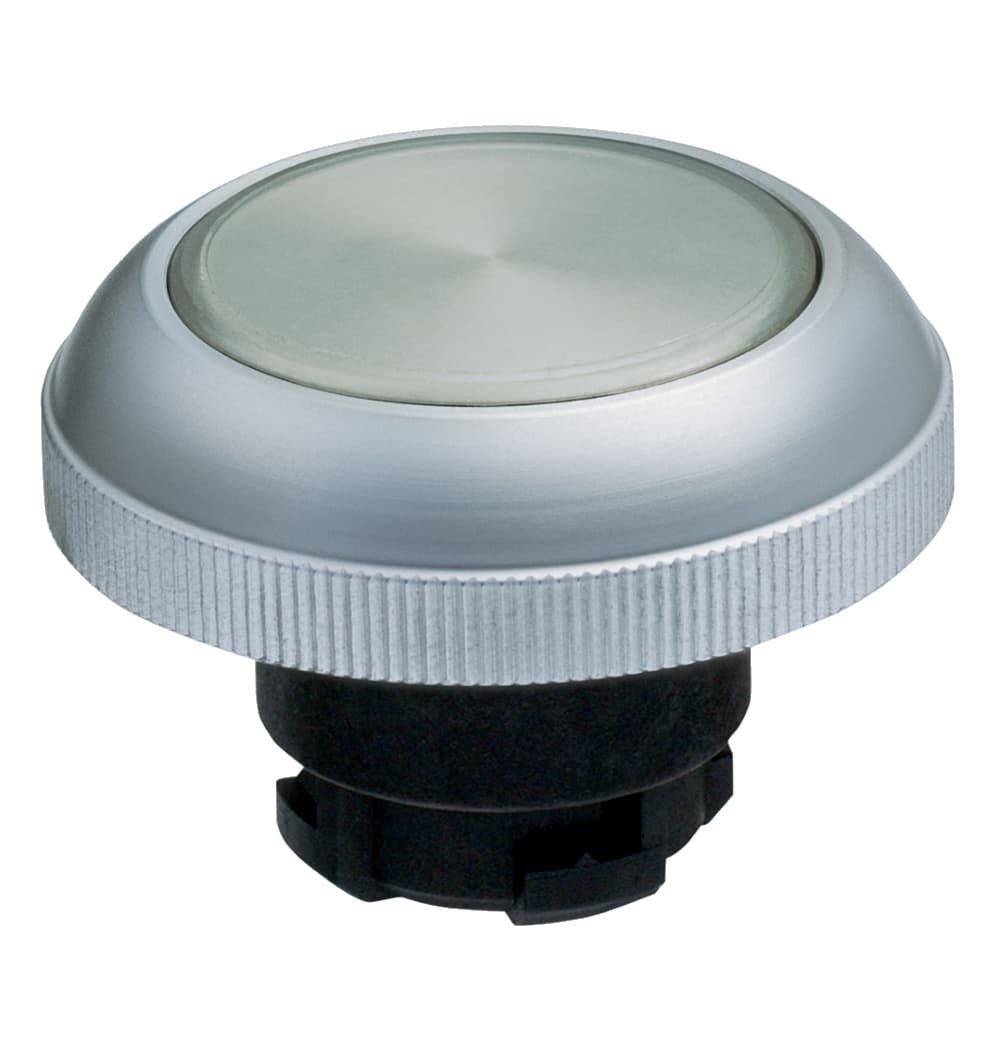

RDMWS Schmersal Pushbuttons

Product Details

• Restistance to shock
  50 g
• Switching frequency
  1,200 /h
• Ambient temperature, minimum
  -25 °C
• Ambient temperature, maximum
  +75 °C
• Thickness of the front panel, maximum
  6 mm
• Degree of protection
  IP65
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Spacing
  40 x 50 mm
• Thickness, of the front panel, minimum
  1 mm
• Diameter hole
  22.3 mm
• Diameter of the front ring
  39.5 mm
• Height of touch surface
  1.5 mm
• Diameter of touch surface
  28 mm
• Diameter total
  39.5 mm
• Tightening torque of the screw
  0.6 Nm
• Height
  12 mm
• Mounting
  Mounting flange EFM
• Fully insulated
  Yes
• Actuating stroke
  4 mm
• Actuating force, approx.
  2 N
Unlocking
without
Mechanical life, minimum
1,000,000 Operations
Probing possible
Yes
Mounting flange
Yes
Gross weight
40 g
Membrane
Yes
Standards
EN 60947-5-1, IEC/EN 60947-1
Colour of the front ring
Silver
Colour of the operating element
White
Material of the operators
Aluminium
Design
Round
Installation conditions (mechanical)
arbitrarily
Material of the front ring
Aluminium
Sealing type
Membrane, Lip gaskets, Form seals
Versions
Embeddable button - Front plate mounting
