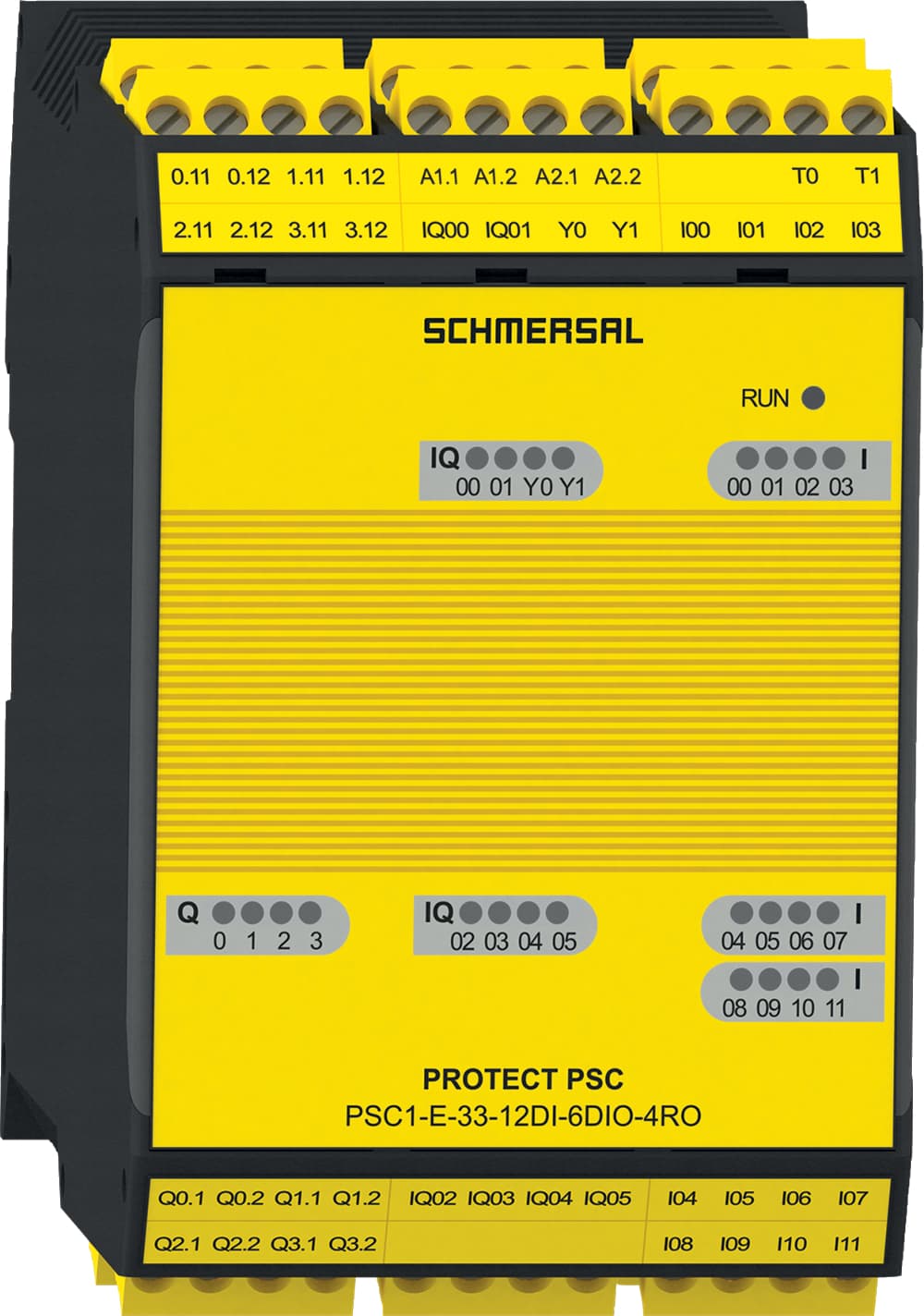

PSC1-E-33-12DI-6DIO-4RO Schmersal Safety Accessories
Part#:PSC1-E-33-12DI-6DIO-4RO
Alt. Part#:103008456
Manufacturer:Schmersal
Category:Safety Accessories
Product Lifecycle:Active
Product description
PSC1-E-33-12DI-6DIO-4RO Schmersal - Safety controllers; PROTECT PSC1; Extension with up to 18 digital in-/outputs; 2 additional signalling outputs; 2 Relay contacts; Connection for all conventional safety switchgear up to PL e to ISO 13849-1
Product Details
- EMC rating DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
- Interfering radiation DIN EN 61000-6-4
- Current, Utilisation category AC-15 2 A
- Current, Utilisation category DC13 2 A
- Electromagnetic compatibility DIN EN 62061, DIN EN 61800-3
- Voltage, Utilisation category DC13 24 VDC
- Voltage, Utilisation category AC15 230 VAC
- Rated operating current (safety outputs) 2,000 mA
- Operating voltage, maximum 28.8 VDC
- Operating voltage, minimum 20.4 VDC
- Degree of pollution to IEC/EN 60664-1 2
- Overvoltage category III
- Zulässige Aufstellhöhe über NN, maximum 2,000 m
- Relative humidity, maximum 85 %
- Note (Relative humidity) non-condensing
- Relative humidity, minimum 5 %
- Storage and transport temperature, maximum +70 °C
- Ambient temperature, maximum +50 °C
- Storage and transport temperature, minimum -25 °C
- Height 100 mm
- Ambient temperature, minimum +0 °C
- Degree of protection IP20
- Depth 115 mm
- Wire cross-section, maximum 12 AWG
- Width 67.5 mm
- Wire cross-section, minimum 24 AWG
- Mounting can be clipped into standard rail
- Gross weight 300 g
- Number of digital fail-safe inputs 6
- Number of signalling outputs 2
- Cable section, maximum 2.5 mm²
- Number of relay outputs (1-channel) 4
- Number of digital fail-safe in-/outputs 6
- Cable section, minimum 0.2 mm²
- Terminal (mechanical) Removable screw terminals
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
