PS316-Z12-K370 Schmersal Safety Switches
Part#:PS316-Z12-K370
Alt. Part#:103015138
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS316-Z12-K370 Schmersal - Position switch; PS316; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50041
Product Details
- Switching frequency 5,000 /h
- Switching element 1 NO contact, 2 NC contacts
- Switching principle Snap switch element
- Utilisation category DC-13 3 A
- Utilisation category AC-15 3 A
- Required rated short-circuit current to EN 60947-5-1 400 A
- Thermal test current 5 A
- Rated impulse withstand voltage Uimp 4 kV
- Ambient temperature, maximum +80 °C
- Rated insulation voltage Ui 300 V
- Ambient temperature, minimum -30 °C
- Degree of protection IP66, IP67
- Height of sensor 119 mm
- Width of sensor 41 mm
- Cable section, maximum 1.5 mm²
- Length of sensor 37 mm
- Actuating speed, maximum 1 m/s
- Cable section, minimum 0.34 mm²
- Terminal Connector Screw connection
- Actuating speed, minimum 10 mm/min
- Mechanical life, minimum 10,000,000 Operations
- Positive break force, minimum 50 N

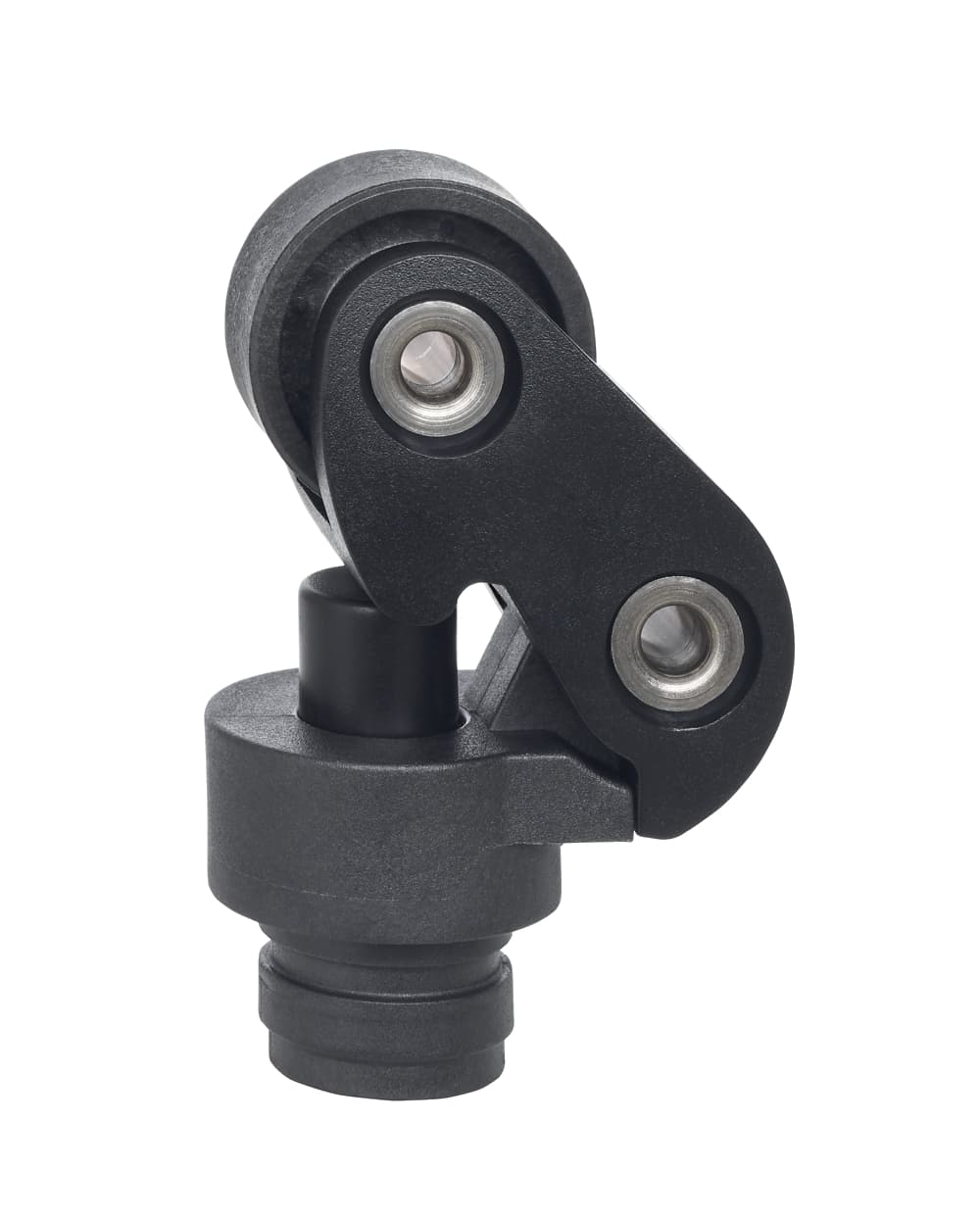

- Actuating element Offset roller lever K370
- Material of the contacts, electrical Silver
- Housing construction form Norm construction design
- Number of auxiliary contacts 1
- Number of safety contacts 2
- Safety functions Yes
- Gross weight 115 g
- Enclosure material Plastic, glass-fibre-reinforced
- Standards IEC 60947-5-1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS316-Z12-K370 on Applied Automation is $91.00. Order now.
