PS316-Z11-K360 Schmersal Safety Switches
Part#:PS316-Z11-K360
Alt. Part#:103015135
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS316-Z11-K360 Schmersal - Position switch; PS316; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50041
Product Details
- Switching frequency 5,000 /h
- Utilisation category DC-13 3 A
- Switching principle Snap switch element
- Switching element 1 NO contact, 1 NC contacts
- Utilisation category AC-15 3 A
- Ambient temperature, minimum -30 °C
- Required rated short-circuit current to EN 60947-5-1 400 A
- Thermal test current 10 A
- Rated impulse withstand voltage Uimp 4 kV
- Ambient temperature, maximum +80 °C
- Rated insulation voltage Ui 300 V
- Height of sensor 129 mm
- Degree of protection IP66, IP67
- Width of sensor 41 mm
- Length of sensor 37 mm
- Cable section, maximum 1.5 mm²
- Cable section, minimum 0.34 mm²
- Terminal Connector Screw connection
- Actuating speed, maximum 1 m/s
- Actuating speed, minimum 10 mm/min
- Mechanical life, minimum 10,000,000 Operations
- Positive break force, minimum 50 N
- Safety functions Yes
- Number of safety contacts 1
- Material of the contacts, electrical Silver
- Gross weight 116.6 g

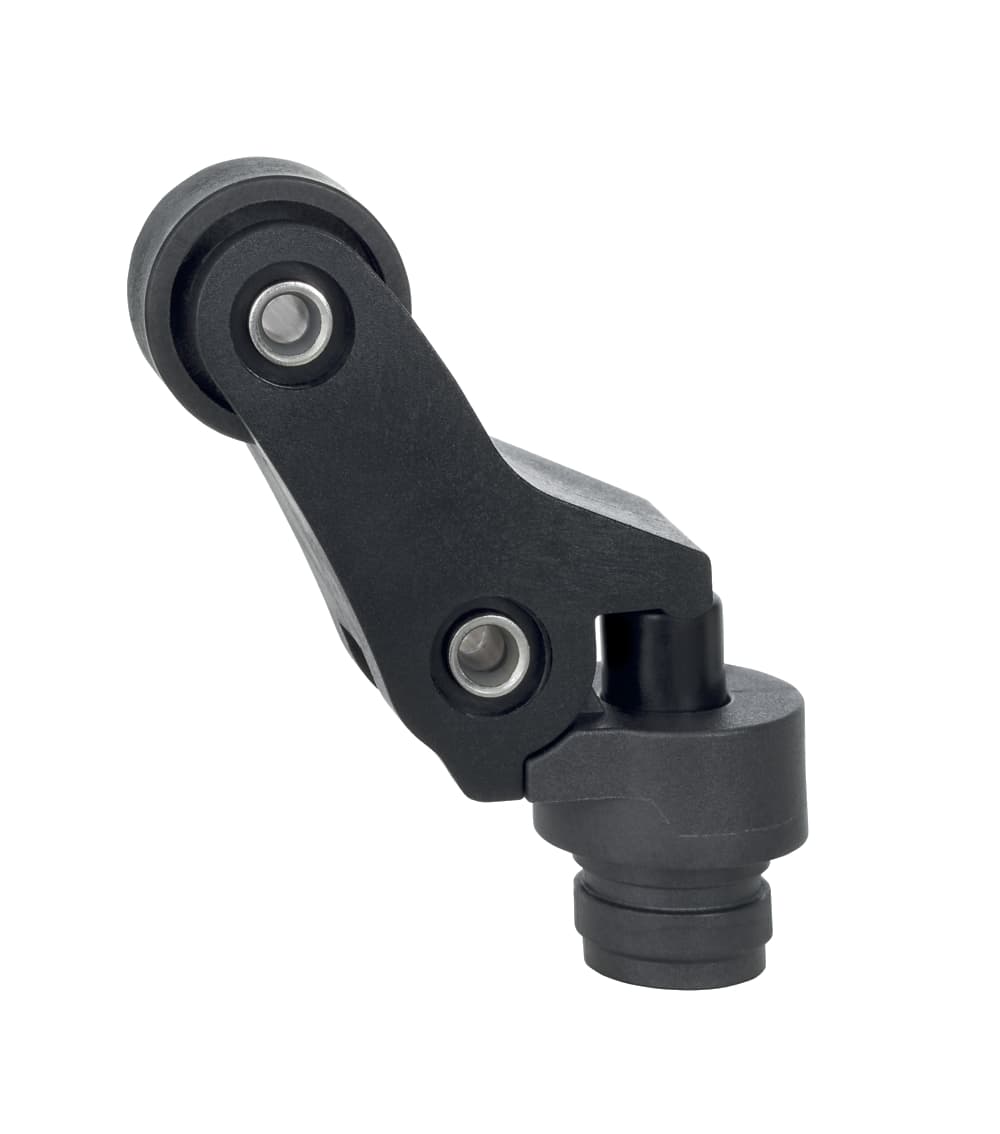

- Actuating element Offset roller lever K360
- Housing construction form Norm construction design
- Standards IEC 60947-5-1
- Number of auxiliary contacts 1
- Enclosure material Plastic, glass-fibre-reinforced
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS316-Z11-K360 on Applied Automation is $81.00. Order now.
PS316-Z11-K360 Related Documents
This item can ship within 1 day!
Manufacturer warranty
PS316-Z11-K360 Schmersal
$81.00
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$81.00
$81.00 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of PS316-Z11-K360?
Purchase the PS316-Z11-K360 from Applied Automation at the price of $81.00. Order today.
Out if stock but available for backorder.
PS316-Z11-K360 Schmersal - Position switch; PS316; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50041
