PS226-Z11-N200 Schmersal Safety Switches
Part#:PS226-Z11-N200
Alt. Part#:103015067
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS226-Z11-N200 Schmersal - Position switch; PS226; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 2 x M20 x 1,5; Design to EN 50047; Lever
Product Details
- Utilisation category DC-13 24 VDC
- Switching element 1 NO contact, 1 NC contacts
- Switching principle Snap switch element
- Switching frequency 5,000 /h
- Rated impulse withstand voltage Uimp 4 kV
- Utilisation category AC-15 3 A
- Required rated short-circuit current to EN 60947-5-1 400 A
- Thermal test current 10 A
- Degree of protection IP66, IP67
- Rated insulation voltage Ui 300 V
- Ambient temperature, maximum +80 °C
- Ambient temperature, minimum -30 °C
- Cable section, maximum 1.5 mm²
- Length of sensor 33 mm
- Height of sensor 150.5 mm
- Width of sensor 59 mm
- Cable section, minimum 0.34 mm²
- Terminal Connector Screw connection
- Actuating speed, maximum 1 m/s
- Material of the contacts, electrical Silver
- Actuating speed, minimum 10 mm/min
- Standards IEC 60947-5-1
- Positive break force, minimum 40 N
- Gross weight 146 g
- Housing construction form Norm construction design
- Number of auxiliary contacts 1
- Safety functions Yes
- Mechanical life, minimum 10,000,000 Operations
- Number of safety contacts 1
- Enclosure material Plastic, glass-fibre-reinforced

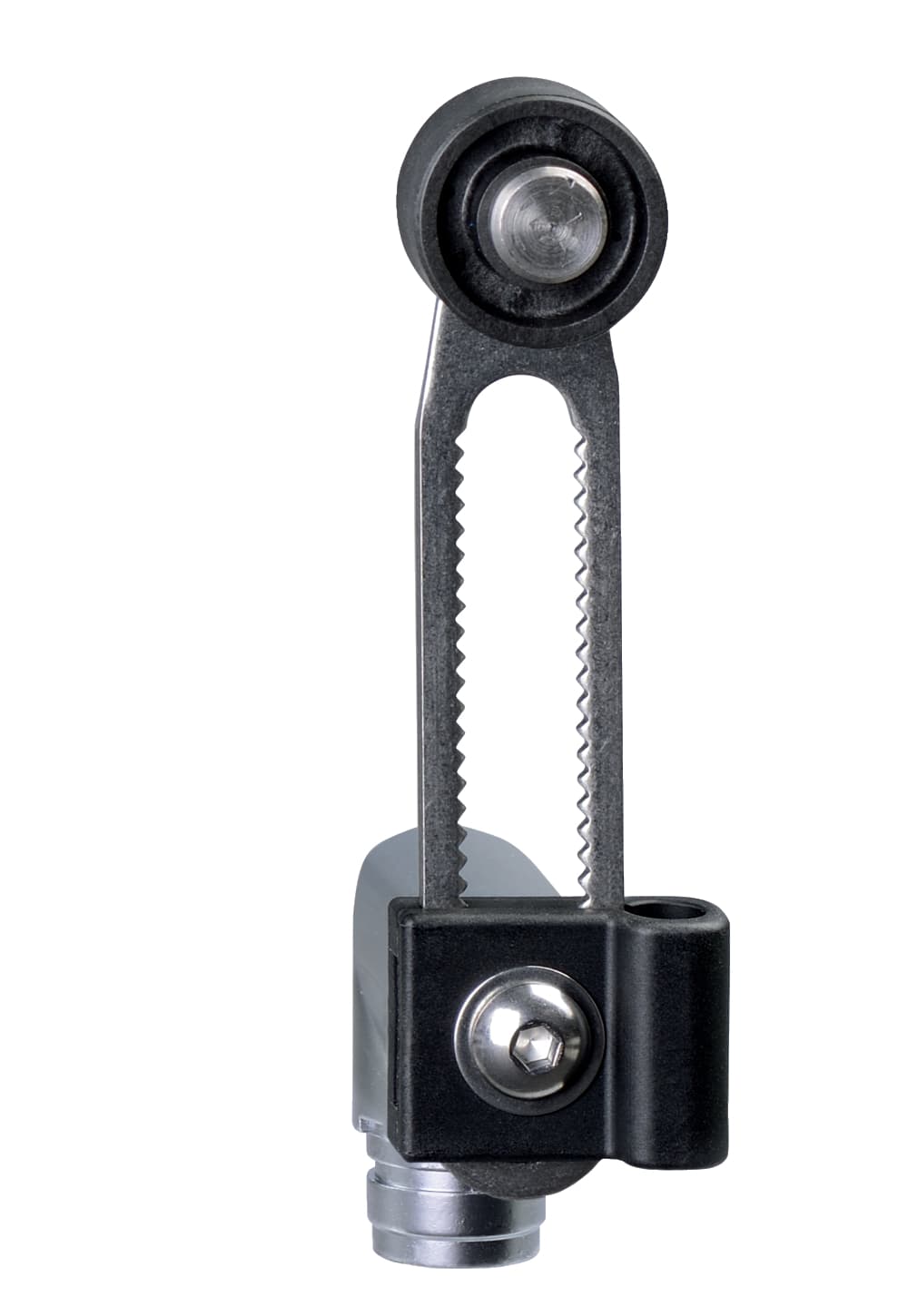

- Actuating element Roller lever N200
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
