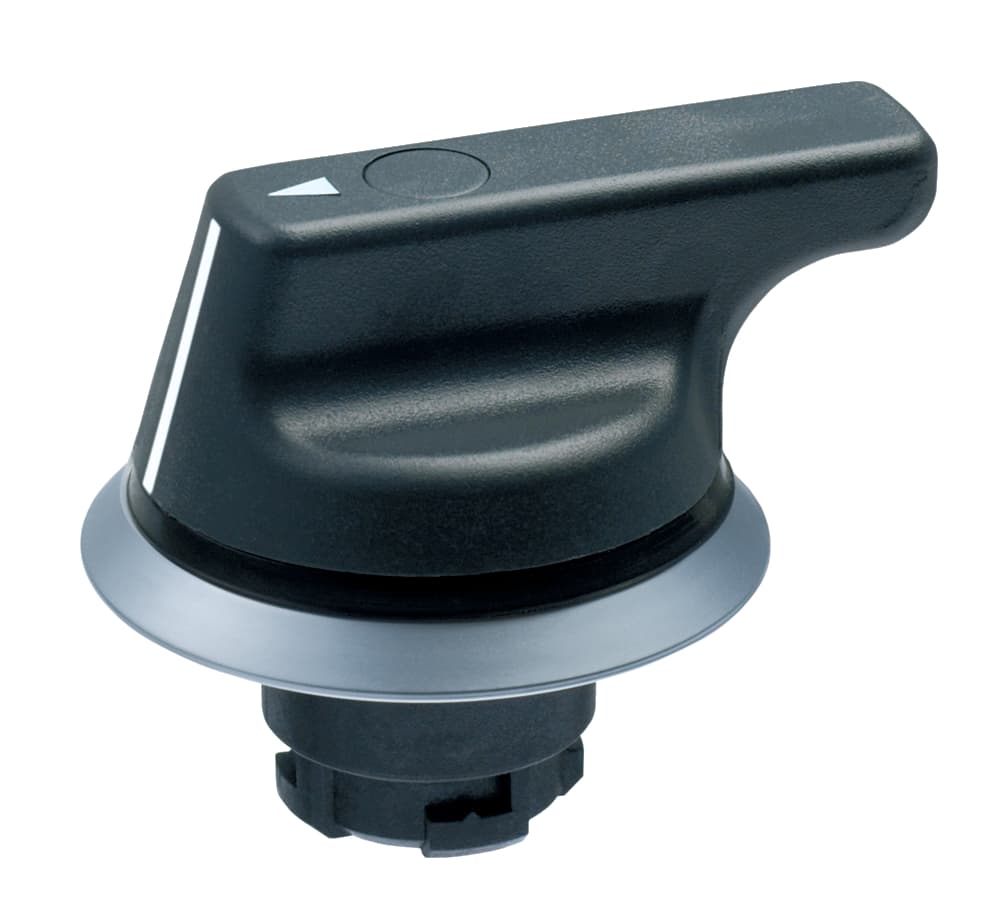

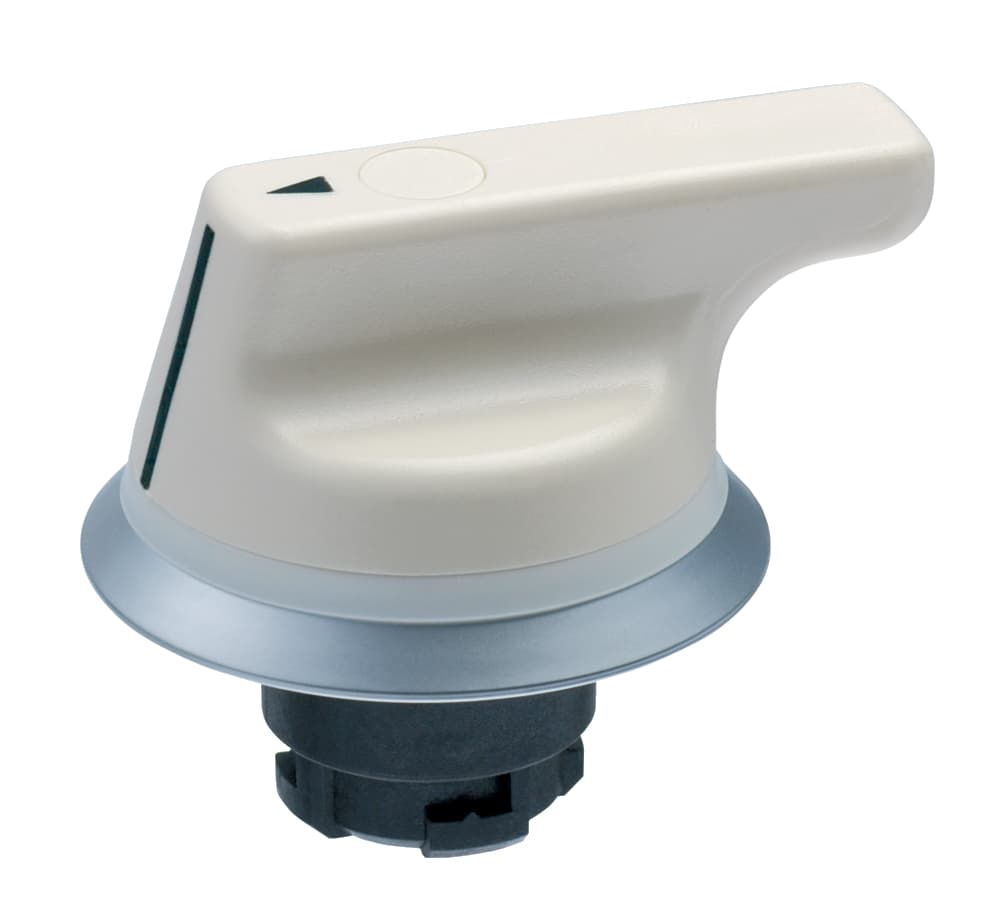

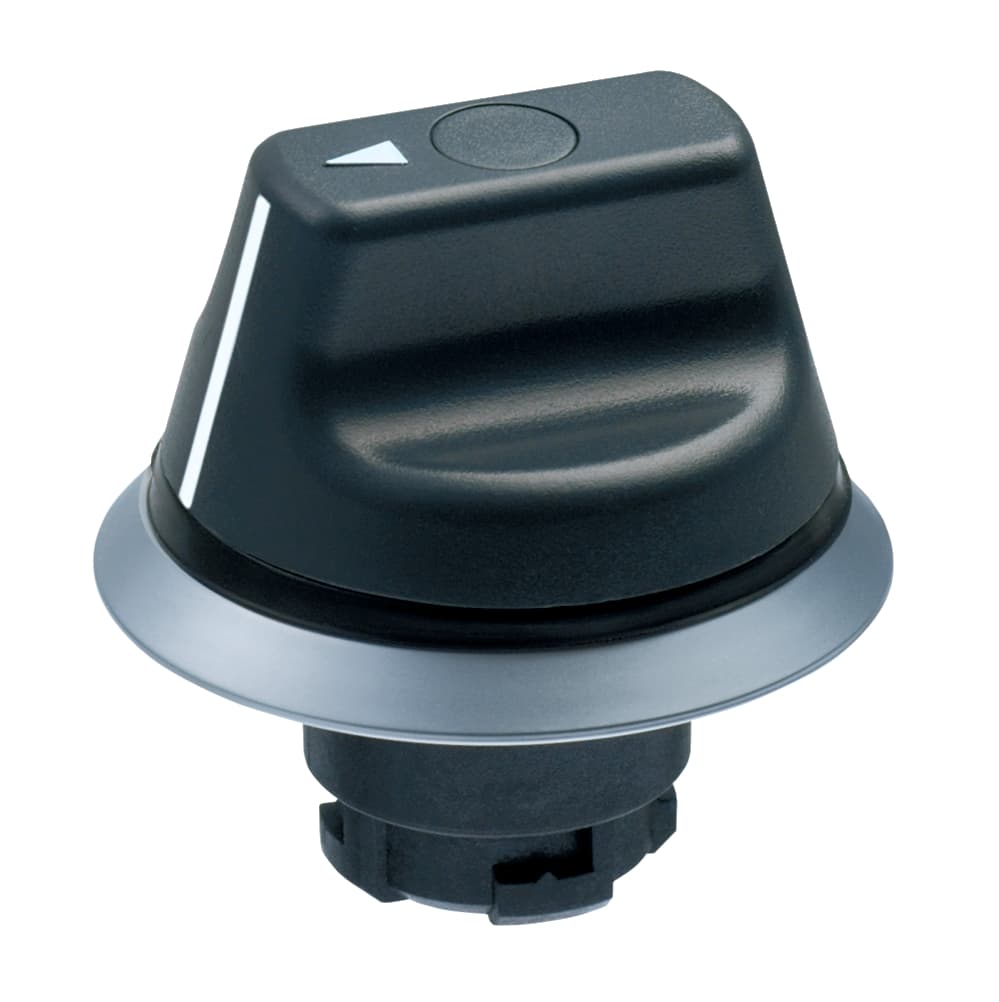

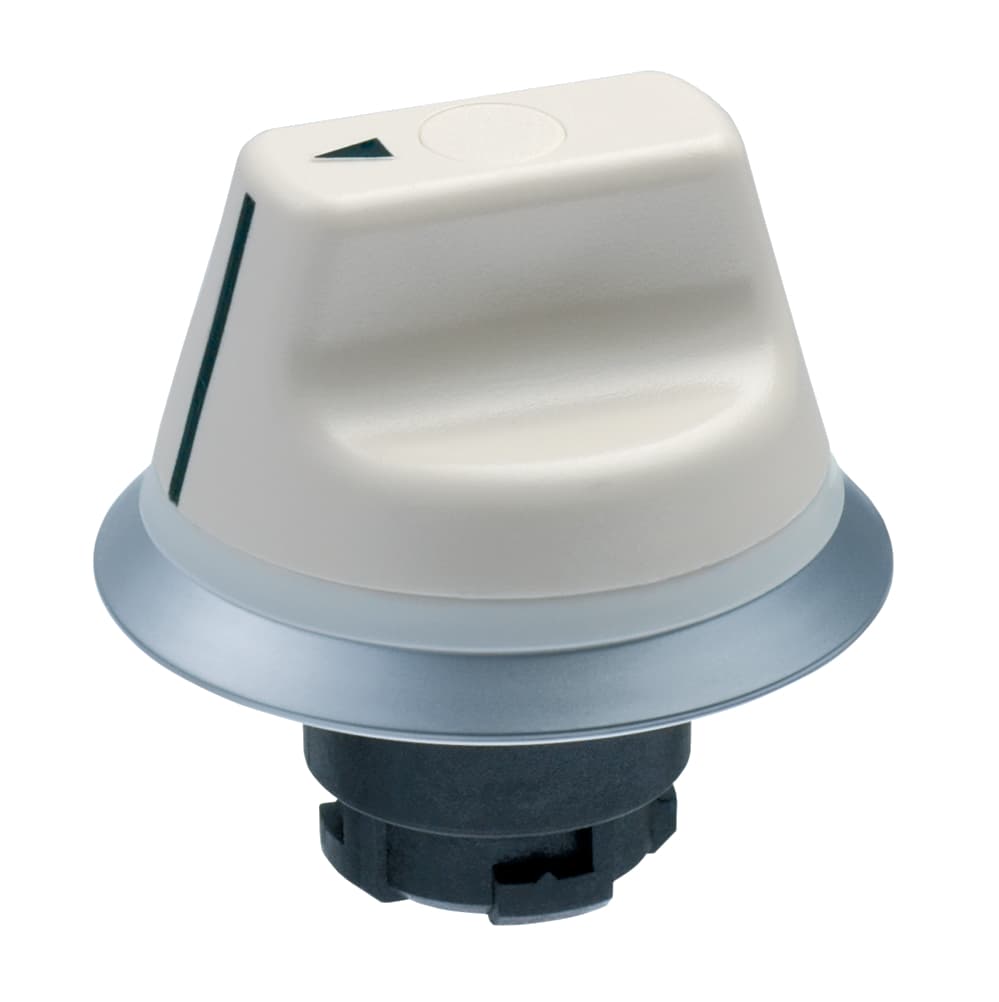

NWTS32 Schmersal Selector Switches

Product Details

• Ambient temperature, maximum
  +80 °C
• Spacing
  50 x 50 mm
• Ambient temperature, minimum
  +0 °C
• Thickness of the front panel, maximum
  6 mm
• Degree of protection
  IP67, IP69K
• Thickness, of the front panel, minimum
  1.5 mm
• Tightening torque of the screw
  0.6 Nm
• diameters for the actuating heads
  44.5 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Diameter hole
  22.3 mm
• Length of the handle
  28 mm
• Height
  26 mm
• Mounting
  Mounting flange EFM
• Touch position
  right
• Switching angle, right
  35 °
• Switching angle, left
  55 °
• Latching
  Yes
• Latching position
  left
• Fully insulated
  Yes
• Unlocking
  Rotating unlatcher
Probing possible
Yes
Number of switch positions
3
Number of plunger
2
Colour of the handle
Grey
Standards
EN 60947-5-1, IEC/EN 60947-1
Colour of the front ring
Silver
Material of the front ring
ABS, chrome-plated
Toggle
short
Gross weight
35 g
Sealing type
Membrane, Lip gaskets
Material of the operators
ABS
Versions
Toggle
