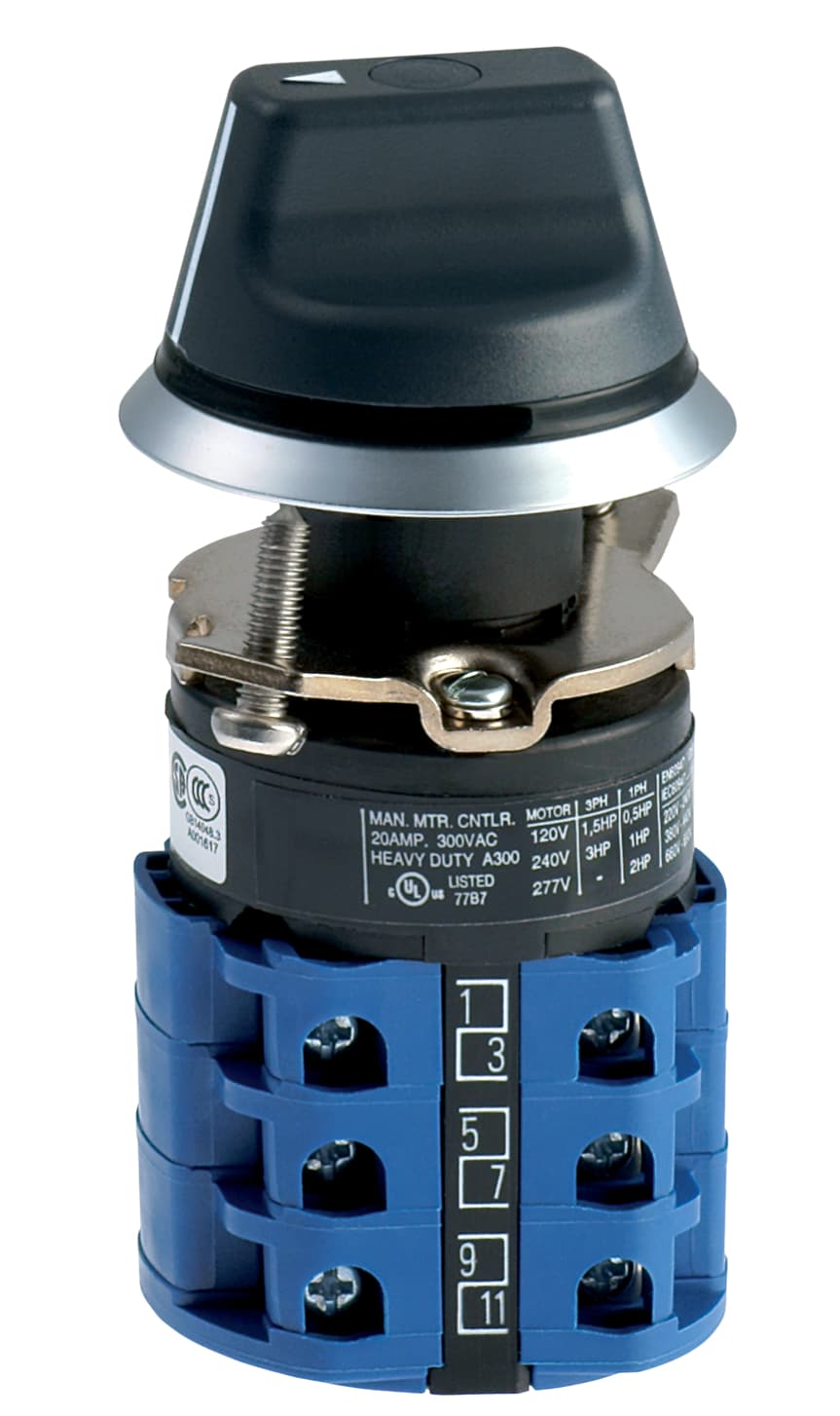

NWSE9K Schmersal Selector Switches

Product Details

• Switching capacity, AC-23
  7,500 W
• Switching capacity, AC-3
  5,500 W
• Degree of protection
  IP67, IP69K
• Rated insulation voltage Ui
  690 V
• Ambient temperature, minimum
  +0 °C
• Thermal test current
  20 A
• Ambient temperature, maximum
  +80 °C
• Spacing
  50 x 50 mm
• Thickness of the front panel, maximum
  6 mm
• Thickness, of the front panel, minimum
  1.5 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Diameter hole
  22.3 mm
• Diameter of the knob
  39 mm
• Diameter of the front ring
  44.5 mm
• Length of the handle
  28 mm
• Mounting depth
  87.5 mm
• Height
  26 mm
• Gross weight
  220 g
• Tightening torque of the screw
  0.6 Nm
• Terminal Connector
  Screw connection
Material of the front ring
ABS, chrome-plated
Colour of the handle
Grey
Number of switch positions
9
switching angle
30 °
Mounting
mounting flange
Standards
IEC 60947-3
Colour of the front ring
Silver
Fully insulated
Yes
Latching
Yes
Sealing type
Membrane, Lip gaskets
Material of the operators
ABS
Toggle
short
Versions
Toggle
