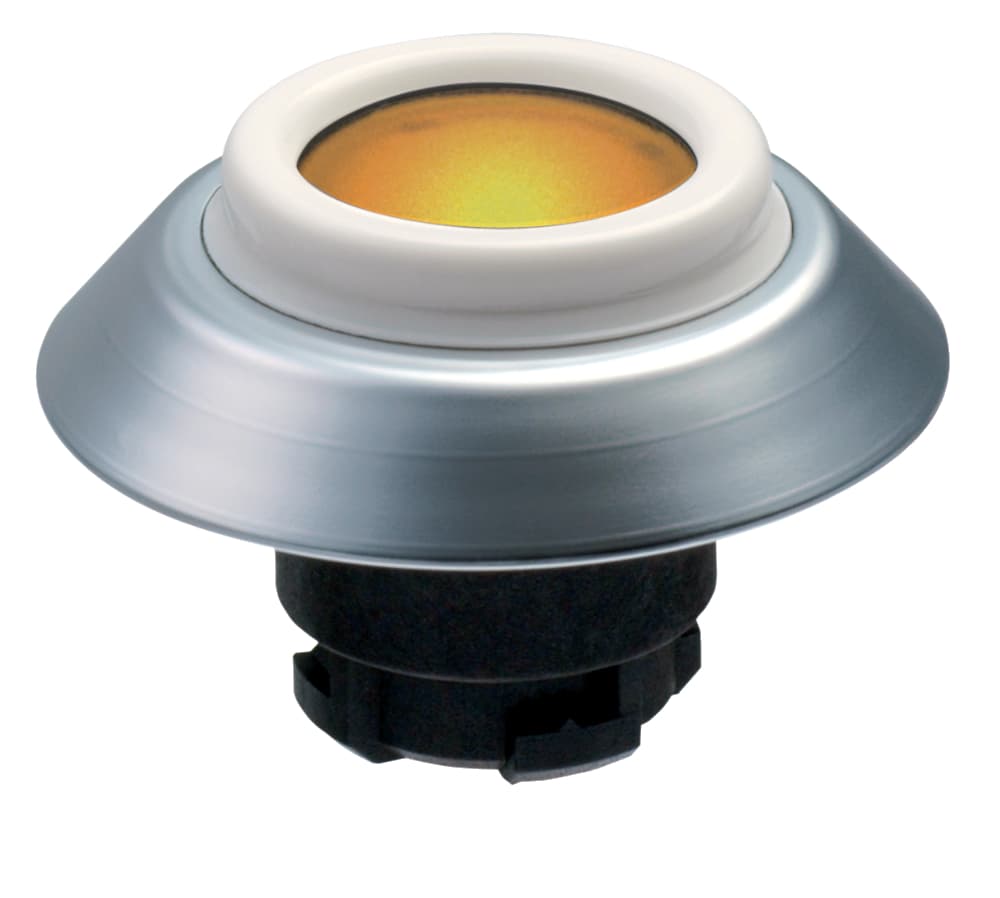

NDLBL/RT Schmersal Pushbuttons

Product Details

• Ambient temperature, minimum
  -25 °C
• Degree of protection
  IP67, IP69K
• Ambient temperature, maximum
  +80 °C
• Spacing
  50 x 50 mm
• Thickness, of the front panel, minimum
  1.5 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Thickness of the front panel, maximum
  6 mm
• Diameter hole
  22.3 mm
• Diameter of the front ring
  44.5 mm
• Diameter of touch surface
  27 mm
• Diameter total
  44.5 mm
• Height
  11 mm
• Actuating stroke
  5 mm
• Tightening torque of the screw
  0.6 Nm
• Unlocking
  without
• Mounting
  Mounting flange ELM
• Fully insulated
  Yes
• Standards
  EN 60947-5-1, IEC/EN 60947-1
• Probing possible
  Yes
• Sealing type
  Membrane, Lip gaskets
Colour of the front ring
Silver
Mounting flange
Yes
Colour of the bellows
Blue
Design
Round
Colour of the operating element
Red
Material of the front ring
ABS, chrome-plated
Illuminable
Yes
Gross weight
30 g
Material of the operators
ABS
Versions
Embeddable button - Front plate mounting
