ELDE.NWS24 Schmersal Electronic Components

Name: ELDE.NWS24
Brand: Schmersal

Part#:ELDE.NWS24

Alt. Part#:101166000

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Active

Product description

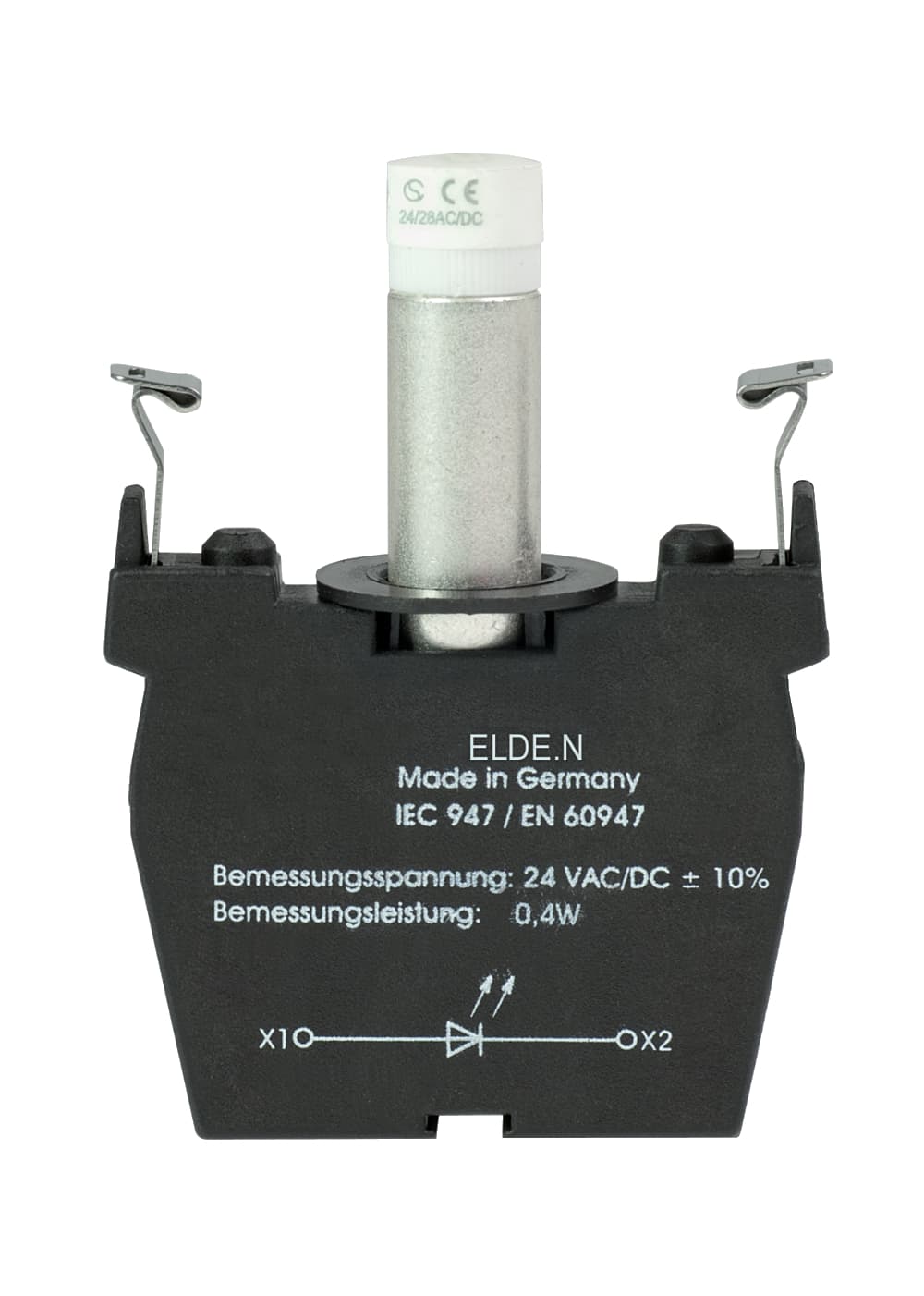

Command and signalling devices; Contact and light terminal blocks (EF/EL); Screw connection; Mounting flange position 3; white LED; 24 VAC/DC

Product Details

Rated operating voltage
250 V
Rated insulation voltage Ui
440 V
Ambient temperature, maximum
+80 °C
Depth
60 mm
Ambient temperature, minimum
-25 °C
Cable section, minimum
0.5 mm², rigid, 0.5 mm², flexible
Width
10 mm
Length
46 mm
Degree of protection of clips or terminals
IP20
Cable section, maximum
2.5 mm², rigid, 1.5 mm², flexible
Terminal Connector
Screw connection
Terminal designations
EN 50005, EN 50013
Integral System Diagnostics, general
Yes
Mounting flange position
3
Installation instructions
pluggable
Installation conditions (mechanical)
arbitrarily
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight
22 g
Standards
EN 60947-5-1, IEC/EN 60947-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
