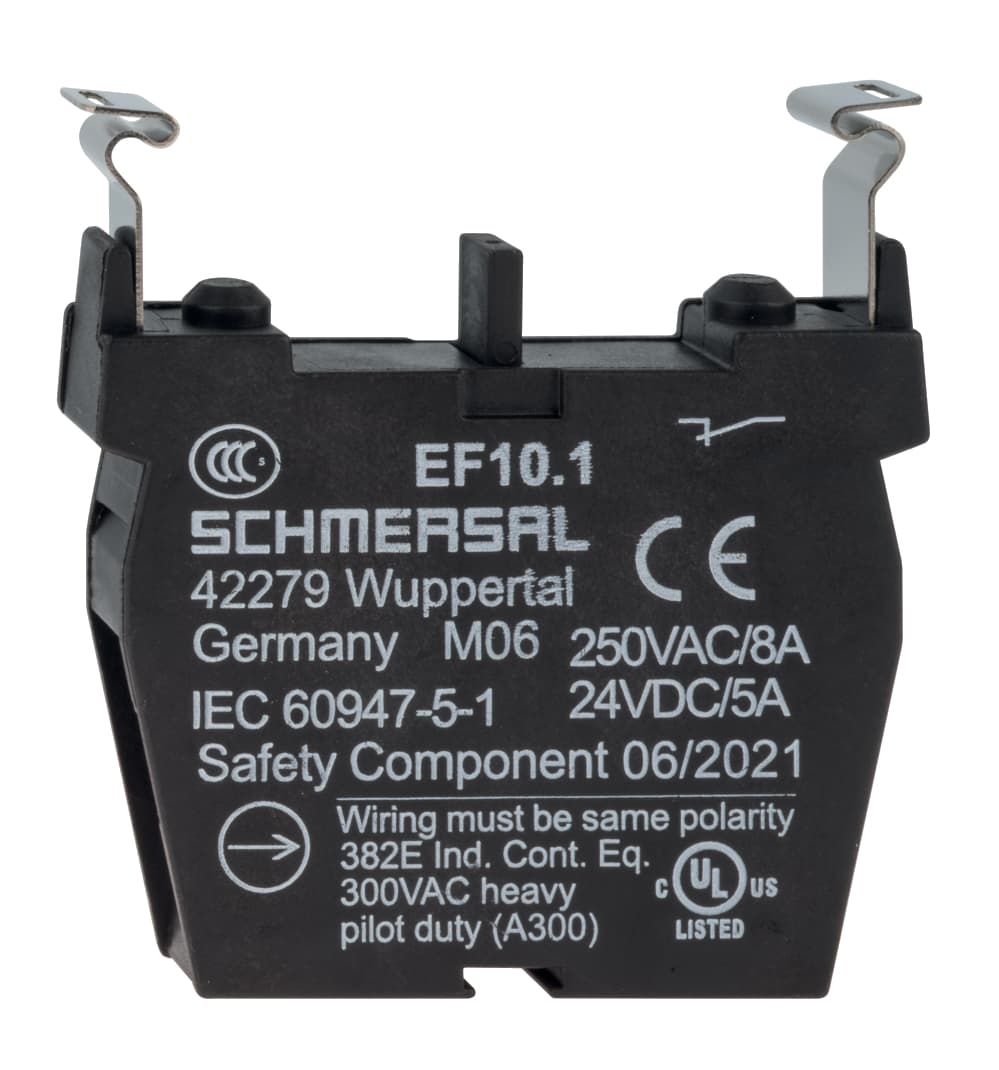

EF10.1 Schmersal Safety Accessories
Part#:EF10.1
Manufacturer:Schmersal
Alt. Part#:101006535
Product Lifecycle:Active
Get a quick Quote!
EF10.1 Schmersal - Command and signalling devices; Contact and light terminal blocks (EF/EL); Screw connection; Mounting flange position 1; 11-12 (Contact labelling)
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Accessories that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the EF10.1 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Switching frequency 1,200 /h
- Suitable for low-voltages ≥ 5 V / ≥ 3.2 mA
- Bounce duration, maximum 5 ms
- Switching principle Slow action
- Switching element Opener (NC)
- Utilisation category AC-15 8 A
- Utilisation category DC-13 24 VDC
- Resistant to vibration Resistance to vibration: 20 g / 10…200 Hz
- Rated insulation voltage Ui 400 V
- Thermal test current 10 A
- Degree of protection of clips or terminals IP20
- Restistance to shock 110 g / 4 ms
- Ambient temperature, maximum +80 °C
- Degree of protection of the switch rooms IP40
- Ambient temperature, minimum -25 °C
- Depth 60 mm
- Cable section, minimum 0.5 mm², rigid, 0.5 mm², flexible
- Length 46 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Width 10 mm
- Mounting flange position 1
- Cable section, maximum 2.5 mm², rigid, 1.5 mm², flexible
- Terminal Connector Screw connection
- Note Bounce duration Bounce duration at an Actuating speed of 100mm/s
- Contact labelling 11-12
- Contact opening 1 mm
- Standards EN 60947-5-1, IEC/EN 60947-1
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Number of openers 1
- positive break travel 2 mm
- Installation instructions pluggable
- Material of the contacts, electrical Silver
- Gross weight 20 g
- Mechanical life, minimum 10,000,000 Operations
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
EF10.1 Description
EF10.1 Schmersal - Command and signalling devices; Contact and light terminal blocks (EF/EL); Screw connection; Mounting flange position 1; 11-12 (Contact labelling)
