BS655-Z22-G024 Schmersal Safety Switches
Part#:BS655-Z22-G024
Alt. Part#:153031623
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

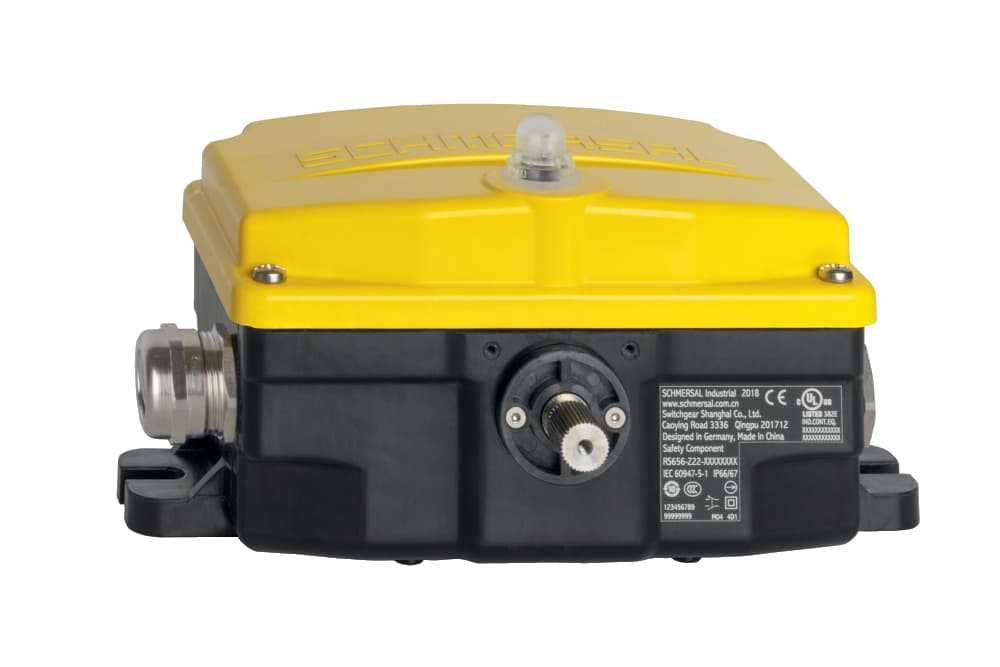

BS655-Z22-G024 Schmersal - Position switch; heavy-duty position switches; Platform concept with different function units; Metal enclosure; Wide range of alternative actuators; Protection class IP66, IP67; Switching point setting; Symmetry thanks to toothed, centrally located shaft;
Product Details
- Utilisation category DC-13 24 VDC
- Protection rating I
- Thermal test current 6 A
- Utilisation category AC-15 3 A
- Rated impulse withstand voltage Uimp 4 kV
- Rated insulation voltage Ui 300 V
- Degree of pollution to IEC/EN 60947-1 3
- Ambient temperature, minimum -25 °C
- Ambient temperature, maximum +60 °C
- Cable section, minimum 0.5 mm², flexible
- Positionierschritte für den Betätiger 10 °
- Mechanical life, minimum 1,000,000 Operations
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Cable section, maximum 2.5 mm², flexible
- Cable entry 2 x M25 x 1.5
- Material of the contacts, electrical Silver
- Number of signal lamps 1
- Number of auxiliary contacts 2
- Gross weight 6,035 g
- Material of the cover Grey cast iron, painted
- Number of safety contacts 2
- Enclosure material Grey cast iron, painted
- Indicator lamp Yes
- Standards IEC 60947-5-1, EN 620
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BS655-Z22-G024 on Applied Automation is $825.00. Order now.
