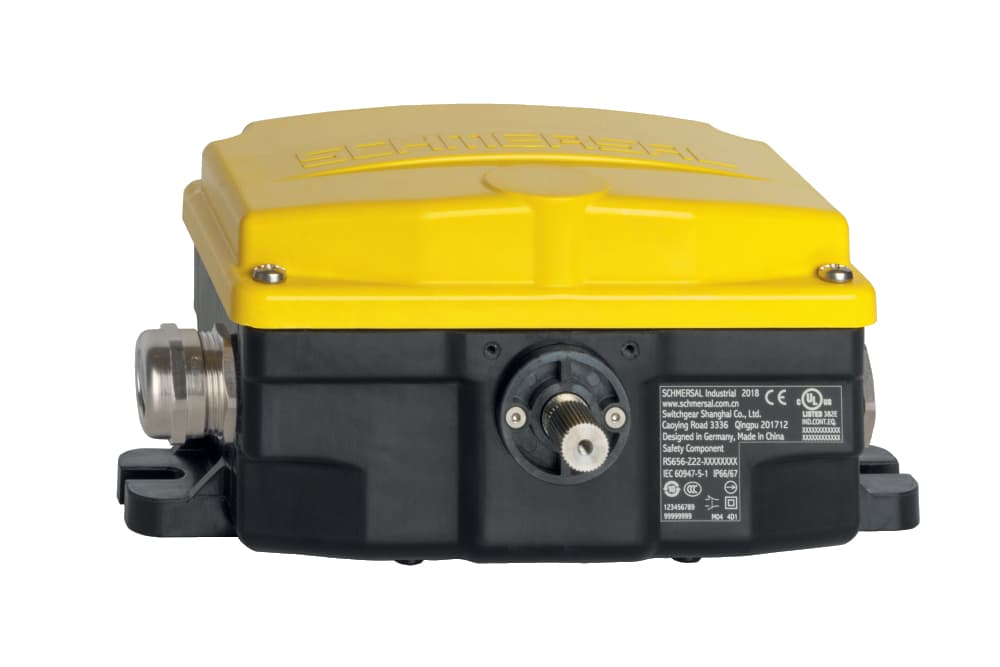

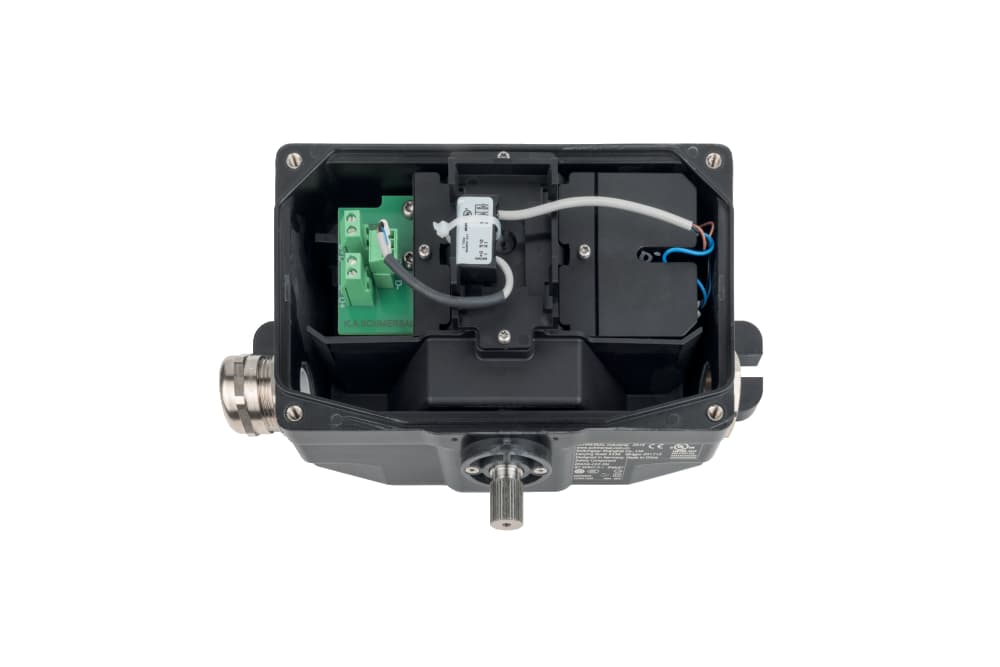

BS655-Z22-DN Schmersal Safety Switches
Part#:BS655-Z22-DN
Alt. Part#:153031627
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
BS655-Z22-DN Schmersal - Position switch; heavy-duty position switches; Platform concept with different function units; Metal enclosure; Wide range of alternative actuators; Protection class IP66, IP67; Switching point setting; Symmetry thanks to toothed, centrally located shaft;
Product Details
- Cable section, minimum 0.2 mm², rigid, 0.25 mm², flexible
- Field bus Dupline
- Operating voltage 8.2 VDC
- Operating current 0.1 mA
- Utilisation category AC-15 3 A
- Thermal test current 6 A
- Utilisation category DC-13 24 VDC
- Degree of pollution to IEC/EN 60947-1 3
- Rated impulse withstand voltage Uimp 0.8 kV
- Ambient temperature, minimum -40 °C
- Cable entry 2 x M25 x 1.5
- Cable section, maximum 2.5 mm², flexible, 4 mm², rigid
- Protection rating I
- Rated insulation voltage Ui 300 V
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Ambient temperature, maximum +70 °C
- Material of the contacts, electrical Silver
- Number of auxiliary contacts 2
- Gross weight 6,075 g
- Mechanical life, minimum 1,000,000 Operations
- Number of safety contacts 2
- Positionierschritte für den Betätiger 10 °
- Enclosure material Grey cast iron, painted
- Material of the cover Grey cast iron, painted
- Standards IEC 60947-5-1, EN 620
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BS655-Z22-DN on Applied Automation is $1,069.00. Order now.
