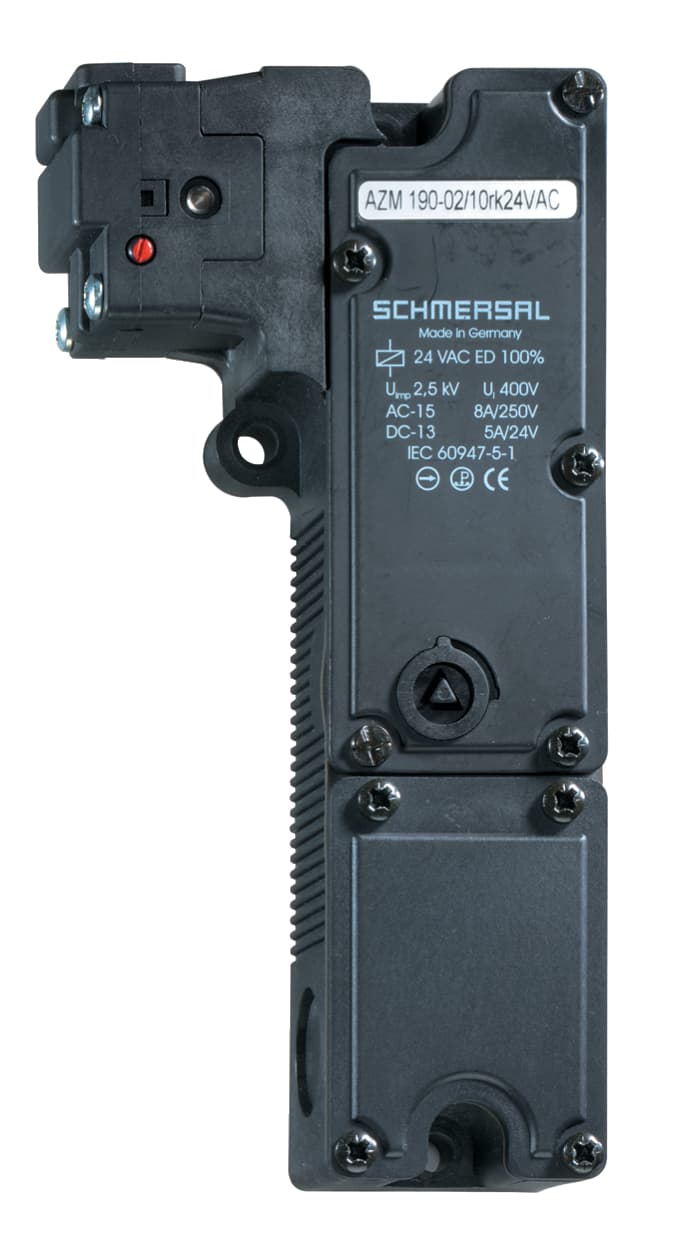

AZM190-02/10RKA-24VDC Schmersal Safety Switch Interlocks

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Voltage, Utilisation category AC15
  230 VAC
• Current, Utilisation category AC-15
  4 A
• Current, Utilisation category DC13
  4 A
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Switching frequency
  1.2 /h
• Switching element
  NO contact, NC contact
• Rated control voltage
  24 VDC
• Switching principle
  Creep circuit element
• Electrical power consumption, maximum
  8.5 W
• Thermal test current
  4 A
• Rated impulse withstand voltage Uimp
  4 kV
• Rated insulation voltage Ui
  250 V
• Ambient temperature, maximum
  +50 °C
• Height of sensor
  178 mm
• Width of sensor
  52 mm
• Ambient temperature, minimum
  +0 °C
• Degree of protection
  IP67 to EN 60529
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Length of sensor
  41 mm
Cable section, maximum
1 x 1.5 mm²
Mechanical life, minimum
1,000,000 Operations
Cable section, minimum
1 x 0.5 mm²
Number of safety contacts
2
Positive break force, minimum
20 N
Terminal Connector
Screw terminals
Actuating speed, maximum
0.3 m/s
Latching force
20 N
Clamping force
1,950 N
Number of auxiliary contacts
1
Manual release
Yes
Power to lock
Yes
Enclosure material
Glass-fibre, reinforced thermoplastic
Material of the contacts, electrical
Silver
Gross weight
480 g
Number of actuating directions
4
Active principle
electromechanical
Standards
EN 60947-5-1, BG-GS-ET-19
Coding level according to ISO 14119
Low
