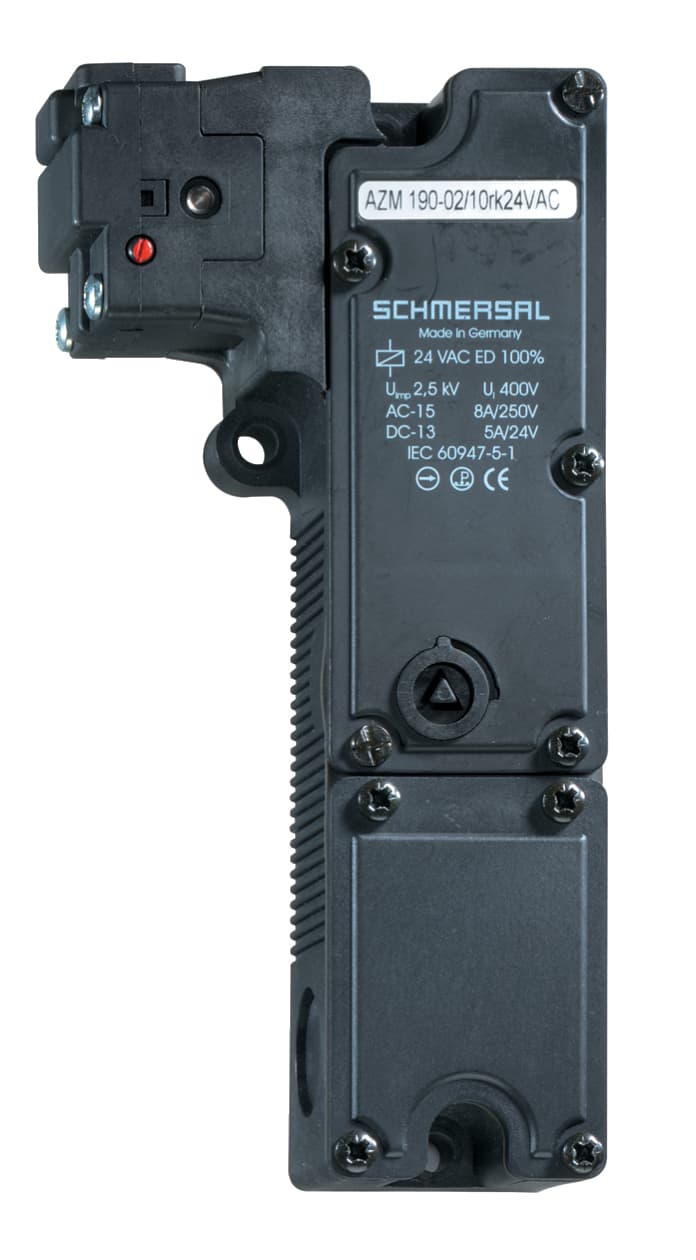

AZM190-02/01RKAE0-G-24VDC Schmersal Safety Switch Interlocks
Part#:AZM190-02/01RKAE0-G-24VDC
Manufacturer:Schmersal
Alt. Part#:133006290
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlocks; Thermoplastic enclosure; Long life; Interlock with protection against incorrect locking.; 89 mm x 178 mm x 41 mm; Actuating head can be repositioned by 4 x 90°; 2 cable entries M 20 x 1.5; Wiring compartment; Slim design, particularly
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switch Interlocks that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM190-02/01RKAE0-G-24VDC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Voltage, Utilisation category DC13 24 VDC
- Switching principle Creep circuit element
- Current, Utilisation category DC13 4 A
- Current, Utilisation category AC-15 4 A
- Switching frequency 1.2 /h
- Voltage, Utilisation category AC15 230 VAC
- Electrical power consumption, maximum 8.5 W
- Switching element Opener (NC)
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Ambient temperature, maximum +50 °C
- Rated impulse withstand voltage Uimp 4 kV
- Rated control voltage 24 VDC
- Thermal test current 4 A
- Ambient temperature, minimum +0 °C
- Rated insulation voltage Ui 250 V
- Height of sensor 178 mm
- Degree of protection IP67 to EN 60529
- Length of sensor 41 mm
- Width of sensor 52 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Terminal Connector Screw terminals
- Cable section, maximum 1 x 1.5 mm²
- Cable section, minimum 1 x 0.5 mm²
- Actuating speed, maximum 0.3 m/s
- Coding level according to ISO 14119 Low
- Positive break force, minimum 20 N
- Mechanical life, minimum 1,000,000 Operations
- Latching force 20 N
- Enclosure material Glass-fibre, reinforced thermoplastic
- Clamping force 1,950 N
- Power to lock Yes
- Standards EN 60947-5-1, BG-GS-ET-19
- Active principle electromechanical
- Gross weight 480 g
- Number of actuating directions 4
- Material of the contacts, electrical Silver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents AZM190-02/01RKAE0-G-24VDC Specs
