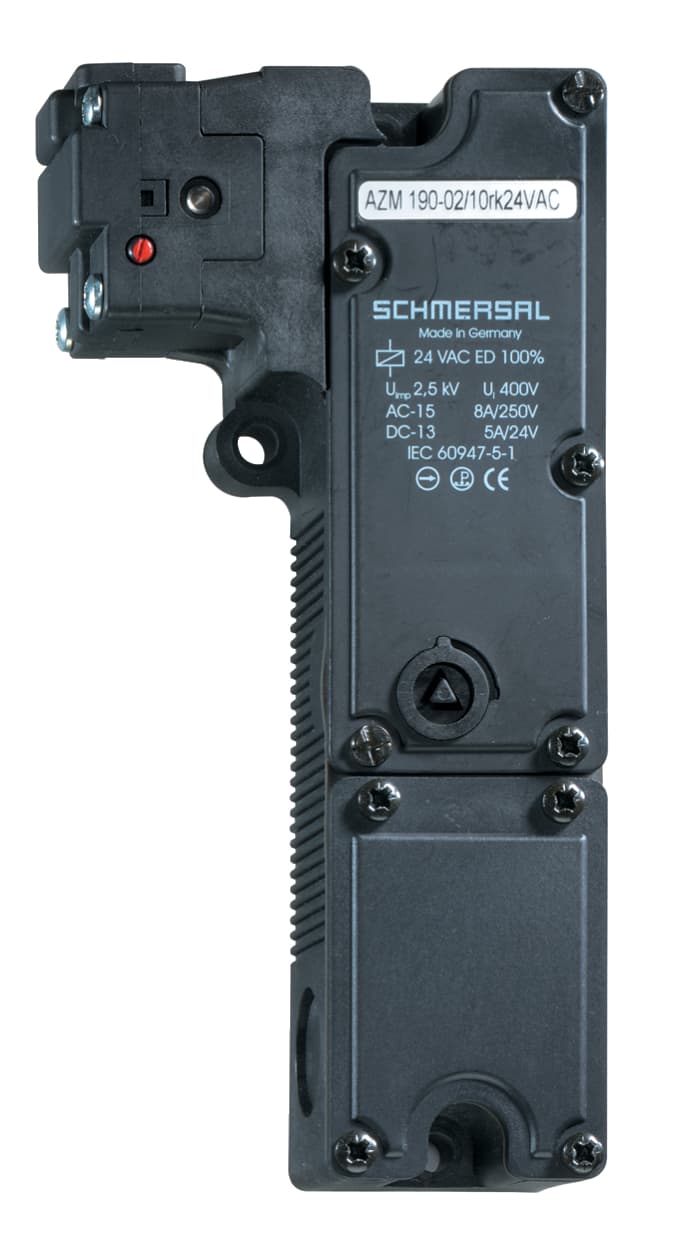

AZM190-02/01RKAE0-24VDC-2856 Schmersal Safety Switch Interlocks

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Switching frequency
  1.2 /h
• Current, Utilisation category DC13
  4 A
• Voltage, Utilisation category AC15
  230 VAC
• Current, Utilisation category AC-15
  4 A
• Switching principle
  Creep circuit element
• Switching element
  Opener (NC)
• Electrical power consumption, maximum
  8.5 W
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Rated control voltage
  24 VDC
• Ambient temperature, maximum
  +50 °C
• Rated impulse withstand voltage Uimp
  4 kV
• Thermal test current
  4 A
• Ambient temperature, minimum
  +0 °C
• Width of sensor
  52 mm
• Rated insulation voltage Ui
  250 V
• Height of sensor
  178 mm
• Degree of protection
  IP67 to EN 60529
• Length of sensor
  41 mm
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
Terminal Connector
Screw terminals
Cable section, maximum
1 x 1.5 mm²
Clamping force
1,950 N
Cable section, minimum
1 x 0.5 mm²
Mechanical life, minimum
1,000,000 Operations
Positive break force, minimum
20 N
Actuating speed, maximum
0.3 m/s
Latching force
20 N
Coding level according to ISO 14119
Low
Enclosure material
Glass-fibre, reinforced thermoplastic
Power to lock
Yes
Number of safety contacts
3
Gross weight
585 g
Standards
EN 60947-5-1, BG-GS-ET-19
Material of the contacts, electrical
Silver
Active principle
electromechanical
Number of actuating directions
4
