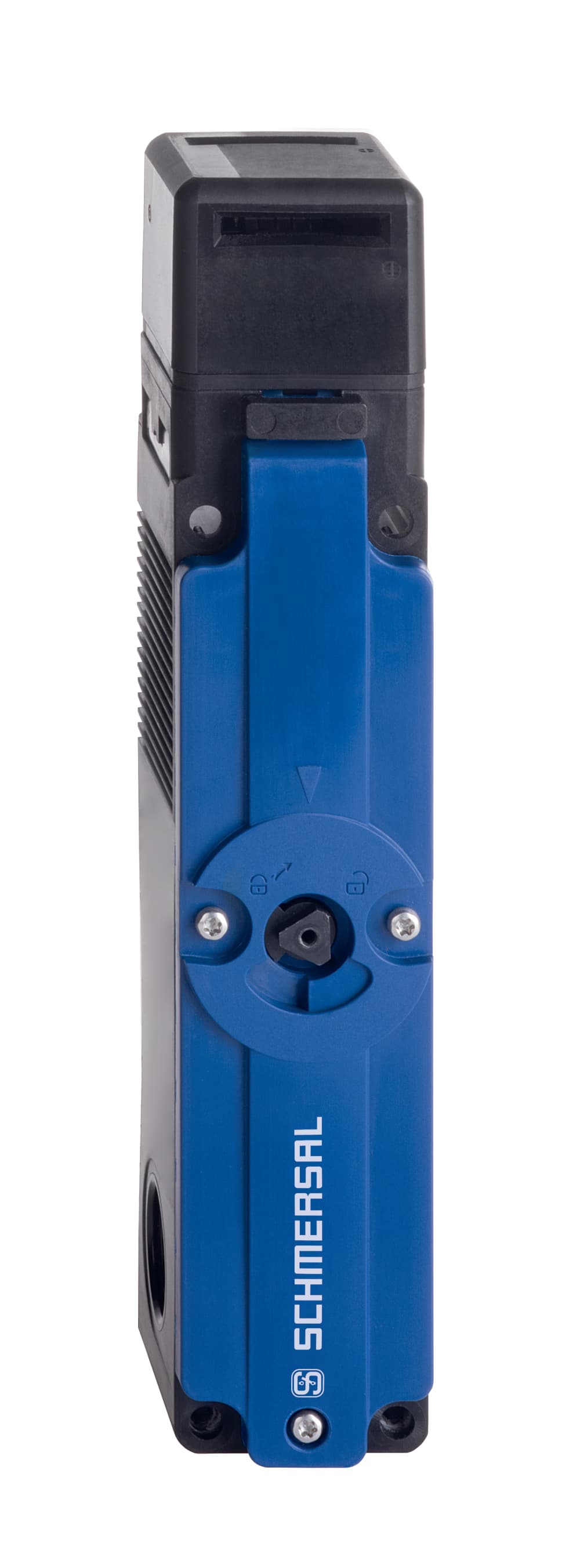

AZM150SK-11/02R-024 Schmersal Safety Switches

Product Details

• Switching frequency
  1,000 /h
• Switching element
  NC contact, NO contact
• Electrical power consumption, maximum
  8.5 W
• Utilisation category DC-13
  24 VDC
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Switching principle
  Creep circuit element
• Rated control voltage
  24 VDC
• Utilisation category AC-15
  3 A
• Thermal test current
  5 A
• Rated impulse withstand voltage Uimp
  4 kV
• Rated insulation voltage Ui
  300 V
• Storage and transport temperature, maximum
  +85 °C
• Ambient temperature, maximum
  +55 °C
• Storage and transport temperature, minimum
  -40 °C
• Ambient temperature, minimum
  -25 °C
• Length of sensor
  48 mm
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Cable section, minimum
  1 x 0.25 mm²
• Cable section, maximum
  1 x 2.5 mm²
• Height of sensor
  204 mm
Width of sensor
40 mm
Cable entry
3 x M20 x 1,5
Terminal Connector
Screw terminals
Latching force, approx.
50 N
Clamping force, maximum Fmax
1,950 N
Clamping force in accordance with ISO14119 Fzh
1,500 N
Mounting
Screws
Number of safety contacts
3
Mechanical life, minimum
1,000,000 Operations
Positive break force, minimum
40 N
positive break travel
10 mm
Actuating speed, maximum
0.2 m/s
Number of auxiliary contacts
1
Enclosure material
Thermoplastic, Polyamide PA 6 GF
Manual release
Yes
Gross weight
589.8 g
Active principle
electromechanical
Standards
EN 60947-5-1, EN ISO 14119
Power to unlock
Yes
Coding level according to ISO 14119
Low
Number of actuating directions
2
Material of the contacts, electrical
Silver
