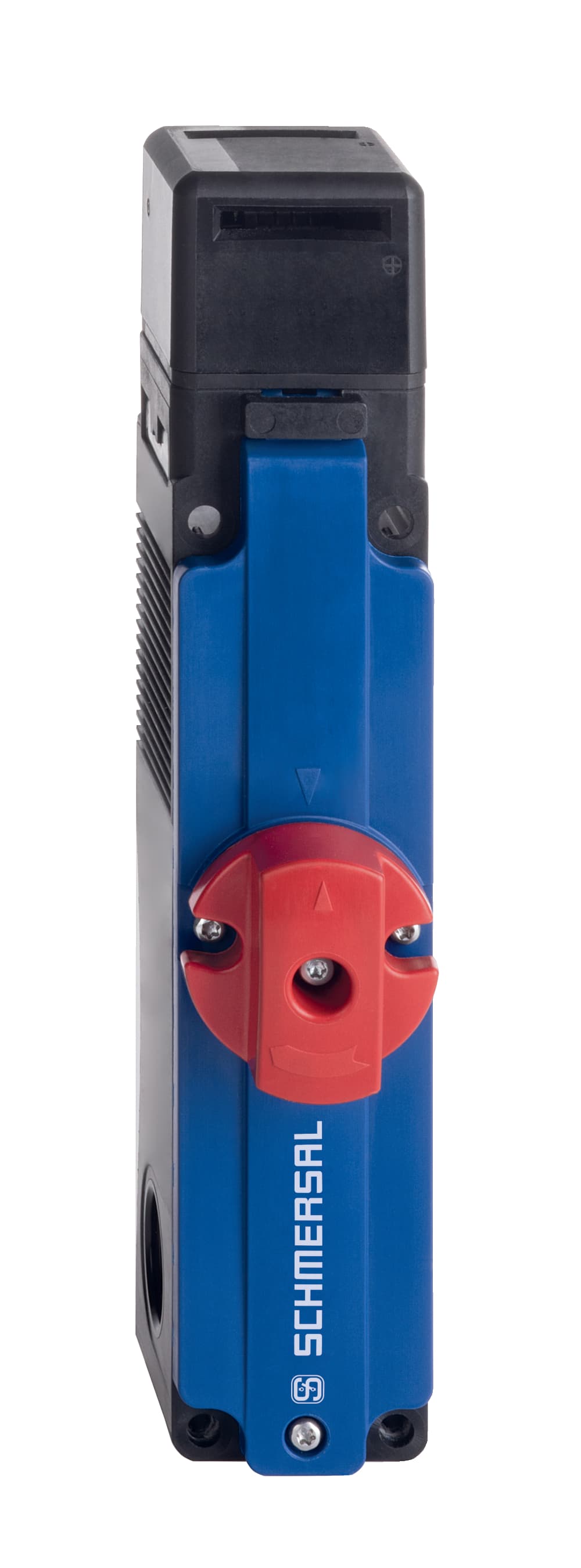

AZM150SK-02/02RN-230 Schmersal Safety Switches

Product Details

• Switching element
  Opener (NC)
• Electrical power consumption, maximum
  8.5 W
• Switching principle
  Creep circuit element
• Switching frequency
  1,000 /h
• Utilisation category DC-13
  2.5 A
• Rated impulse withstand voltage Uimp
  4 kV
• Storage and transport temperature, maximum
  +85 °C
• Utilisation category AC-15
  3 A
• Thermal test current
  5 A
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Rated insulation voltage Ui
  300 V
• Rated control voltage
  230 VAC
• Storage and transport temperature, minimum
  -40 °C
• Ambient temperature, maximum
  +55 °C
• Height of sensor
  204 mm
• Ambient temperature, minimum
  -25 °C
• Length of sensor
  64 mm
• Width of sensor
  40 mm
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Cable entry
  3 x M20 x 1,5
Cable section, maximum
1 x 2.5 mm²
Cable section, minimum
1 x 0.25 mm²
Positive break force, minimum
40 N
Actuating speed, maximum
0.2 m/s
Mounting
Screws
Terminal Connector
Screw terminals
positive break travel
10 mm
Clamping force, maximum Fmax
1,950 N
Latching force, approx.
50 N
Clamping force in accordance with ISO14119 Fzh
1,500 N
Number of safety contacts
4
Number of actuating directions
2
Mechanical life, minimum
1,000,000 Operations
Emergency release
Yes
Material of the contacts, electrical
Silver
Coding level according to ISO 14119
Low
Gross weight
589.7 g
Standards
EN 60947-5-1, EN ISO 14119
Enclosure material
Thermoplastic, Polyamide PA 6 GF
Power to unlock
Yes
Active principle
electromechanical
