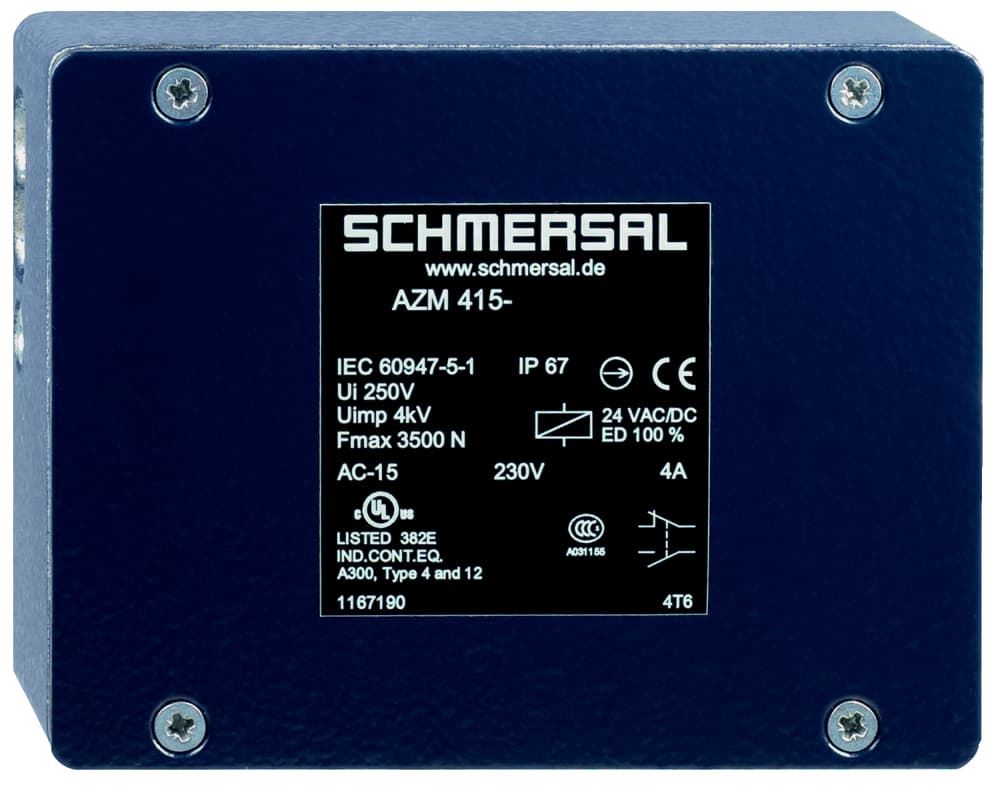

AZM 415-11/11ZPK 110VAC Schmersal Safety Switch Interlocks

Product Details

• Switching principle
  Creep circuit element
• Switching element
  NO contact, NC contact
• Electrical power consumption, maximum
  10 W
• Utilisation category DC-13
  1 A
• Rated control voltage
  110 VAC
• Utilisation category AC-15
  4 A
• Thermal test current
  6 A
• Rated impulse withstand voltage Uimp
  4 kV
• Rated insulation voltage Ui
  250 V
• Degree of protection
  IP67
• Ambient temperature, maximum
  +50 °C
• Ambient temperature, minimum
  -25 °C
• Height of sensor
  100 mm
• Width of sensor
  130 mm
• Cable section, maximum
  2 x 2.5 mm²
• Length of sensor
  46.5 mm
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Cable section, minimum
  2 x 0.75 mm²
• Terminal Connector
  Screw connection
• Positive break force, minimum
  15 N
Actuating speed, maximum
0.2 m/s
Latching force, maximum
400 N
positive break travel
5 mm
Mechanical life, minimum
1,000,000 Operations
Latching force, minimum
150 N
Clamping force in accordance with ISO14119 Fzh
3,500 N
Number of guard doors
1
Enclosure material
Aluminium
Number of safety contacts
2
Enclosure coating material
painted
Gross weight
905 g
Number of auxiliary contacts
2
Number of actuating directions
1
Active principle
electromechanical
Material of the contacts, electrical
Silver
Standards
EN 60947-5-1, BG-GS-ET-19
Power to unlock
Yes
