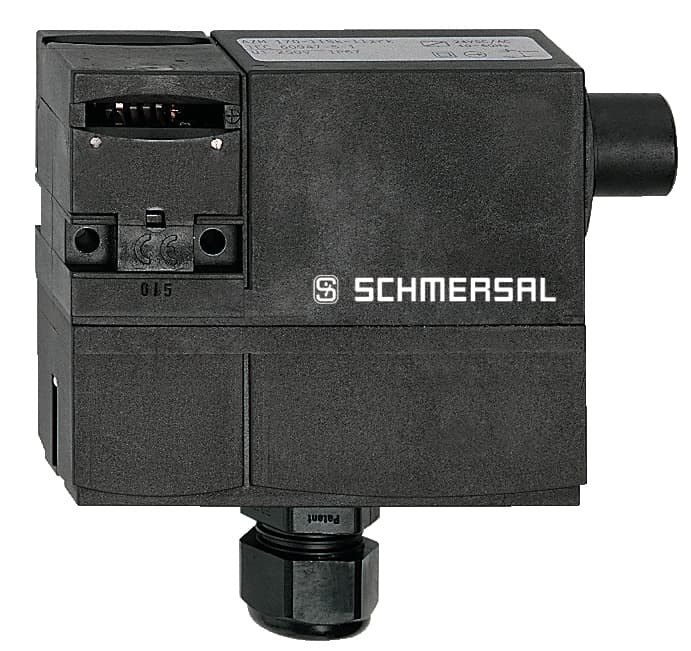

AZM 170SK-12/00ZK-2197 24VAC/DC Schmersal Safety Switch Interlocks

Product Details

• Current, Utilisation category DC13
  4 A
• Switching frequency
  1,000 /h
• Switching principle
  Creep circuit element
• Note (Switching element)
  Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
• Voltage, Utilisation category DC13
  24 VDC
• Switching element
  NO contact, NC contact
• Electrical power consumption, maximum
  10 W
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Thermal test current
  6 A
• Rated control voltage
  24 VAC/DC
• Rated impulse withstand voltage Uimp
  4 kV
• Rated insulation voltage Ui
  250 V
• Ambient temperature, maximum
  +60 °C
• Height of sensor
  100.5 mm
• Ambient temperature, minimum
  -25 °C
• Degree of protection
  IP67 to EN 60529
• Latching force
  5 N
• Length of sensor
  30 mm
• Cable section, maximum
  1 x 1.5 mm², flexible
• Actuating speed, maximum
  2 m/s
Terminal Connector
Screw terminals
Positive break force, minimum
8.5 N
Cable section, minimum
1 x 0.25 mm²
Clamping force in accordance with ISO14119 Fzh
1,000 N
positive break travel
11 mm
Number of auxiliary contacts
1
Number of safety contacts
2
Number of actuating directions
2
Gross weight
320 g
Mechanical life, minimum
1,000,000 Operations
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Active principle
electromechanical
Coding level according to ISO 14119
Low
Material of the contacts, electrical
Silver
Power to unlock
Yes
Manual release
Yes
Standards
EN 60947-5-1, BG-GS-ET-19
