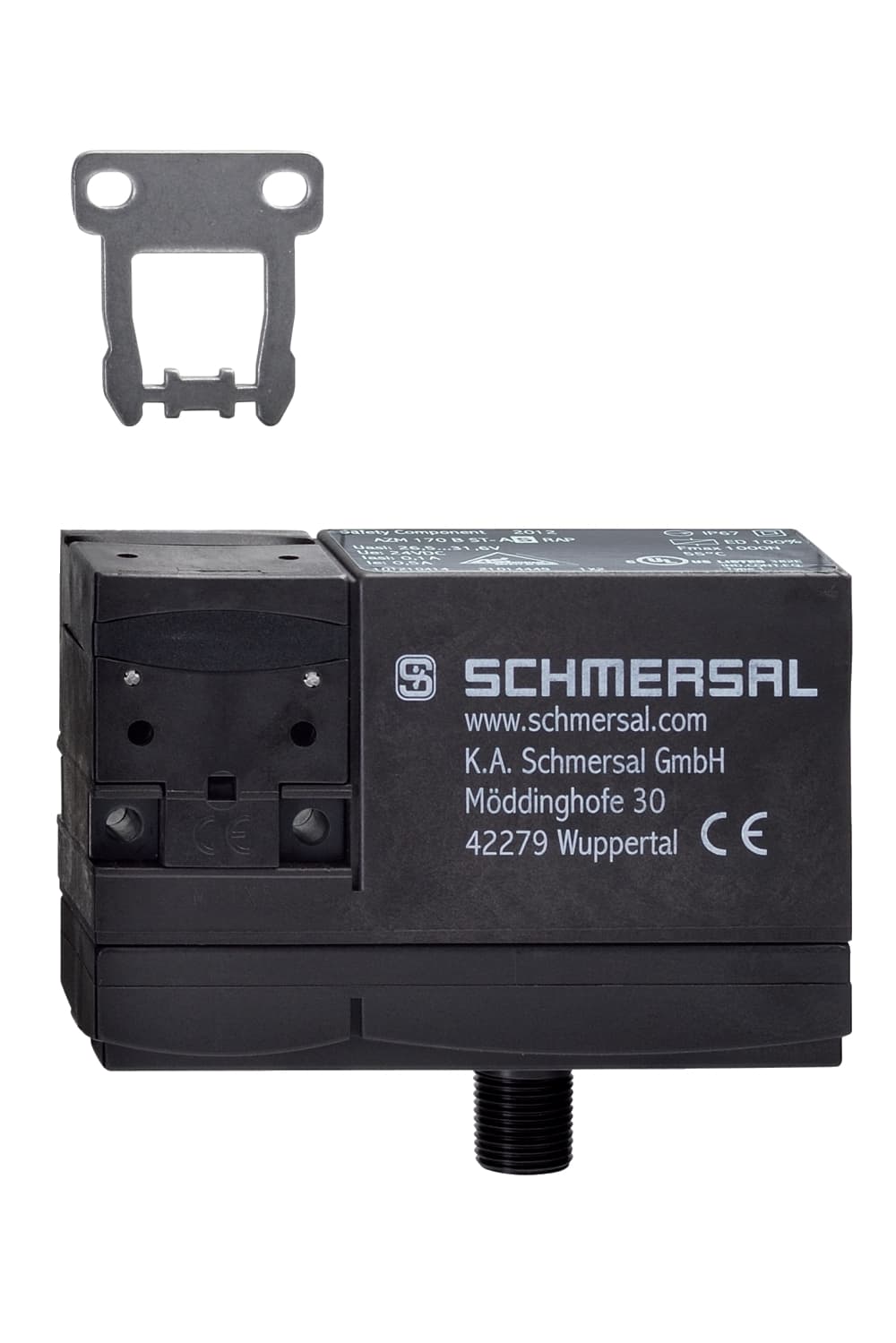

AZM 170 B ST-AS RP Schmersal Safety Switch Interlocks

Product Details

• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Operating current
  500 mA
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Parameter bits, P1
  Solenoid interlock locked
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i Parameter bits, P3
  No function
• AS-i Parameter bits, P2
  No function
• AS-i Input module address
  0
• AS-i Outputs, DO 2
  No Function
• AS-i Outputs, DO 3
  No Function
• AS-i Outputs, DO 1
  No Function
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i, ID-Code2
  0xE
• AS-i, ID-Code1
  0xF
• AS-i, ID-Code
  0xB
• AS-i, IO-Code
  0x7
• AS-i Version
  V 2.1
AS-i Current consumption, maximum
100 mA
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Profile
S-7.B.F.E
AS-i Specification
Safety-Slave
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Operating voltage, minimum
26.5 VDC
Degree of pollution to VDE 0100
3
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
II
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, maximum
95 %
Rated insulation voltage Ui
32 VDC
Storage and transport temperature, maximum
+85 °C
Relative humidity, minimum
30 %
Storage and transport temperature, minimum
-25 °C
Ambient temperature, maximum
+55 °C
Degree of protection
IP67 to EN 60529
Actuating speed, maximum
2 m/s
Ambient temperature, minimum
-25 °C
Height of sensor
75.5 mm
Width of sensor
90 mm
Mechanical life, minimum
1,000,000 Operations
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Latching force
30 N
Clamping force
1,000 N
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Number of actuating directions
2
Integral System Diagnostics, status
Yes
Actuator monitored
Yes
Power to unlock
Yes
Reaction time, maximum
100 ms
Standards
IEC 61508, EN 60947-5-1, EN 62026-2
Gross weight
285 g
Active principle
electromechanical
